P&S RRW600UTCCCV4 RADIANT OCC SENSO

Manufacturer: Pass & Seymour / Legrand | Catalog # RRW600UTCCCV4 | Cooper Electric Part # 1503901
*Call For Price*
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure

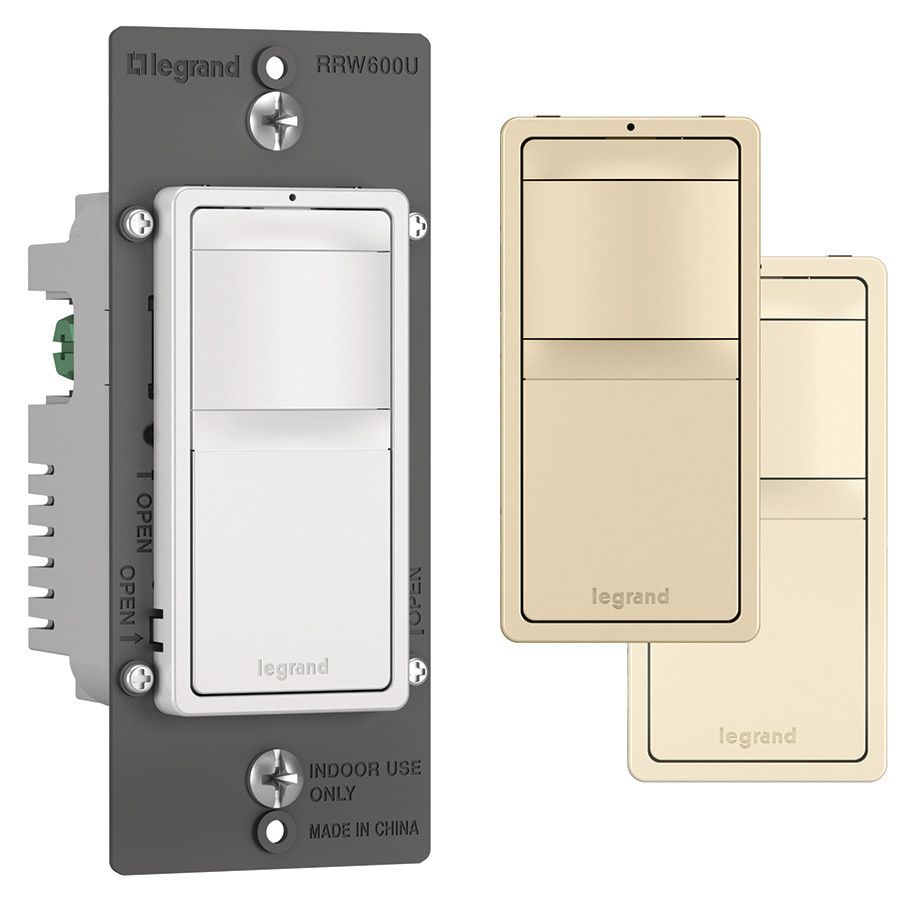

Simplify control while saving energy, with the radiant® Occupancy Sensor. Automatically turning the light on when someone enters a room, and shutting it off when the room is empty, this sensor includes an adjustable timed delay for shut off, as well as additional settings for more flexible control. Part of the radiant® Collection, it features clean lines and smooth paddle action for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Mounting Type
Box
Number of Poles
3 Pole
Switch Type
Motion Sensor
Type
Non-Reversing
Voltage
120 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
adorne

General Product Info

12-Digit UPC
785007496574
Color
White
Finish
Matte
GTiN
00785007496574
Product UPC
78500749657

Dimensions

Depth
1.88 Inch
Height
2.63 Inch
Width
1.69 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
  • Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 5 minute delay).
  • Auto ON/Auto OFF functionality as default. Easily configurable to Manual ON/Auto OFF to meet any need or preference in the home.
  • Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Certifications
  • UL Listed
