ABB RB1717 INS VINYL FORK TRM 18-14

Manufacturer: ABB | Thomas & Betts | Catalog # RB1717 | Cooper Electric Part # 1500358
$90.86/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Product Brochure

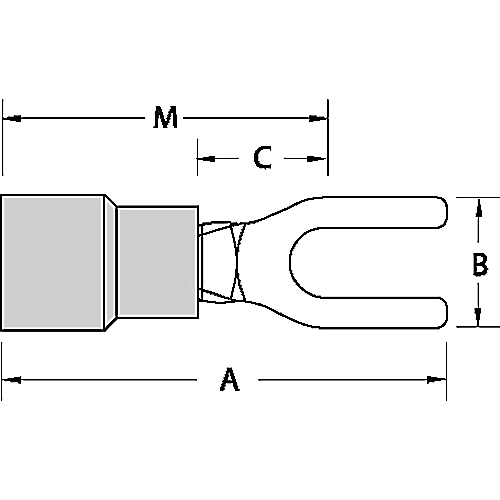

Vinyl Insulated Fork Terminal, Length 1.11 Inches, Width .44 Inches, Maximum Insulation .170, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Applications
For Copper Conductors
Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
1/4 in
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210125879
Color
Blue
Finish
Electro Tin Plated
GTiN
05415022254907
Product UPC
78621012587
Used With
WT145C, WT2000, WT112M, ERG4001 Crimp Tool

Dimensions

Length
1.11 Inch
Width
0.44 in
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
