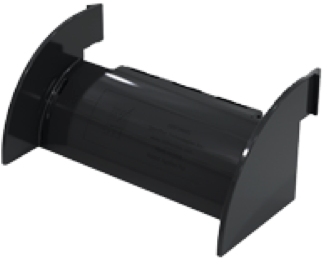

STI RCM33 PR RADIUS CNTL MODULES

Manufacturer: Specified Technologies Inc | Catalog # RCM33 | Cooper Electric Part # 1498926
$19.25/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

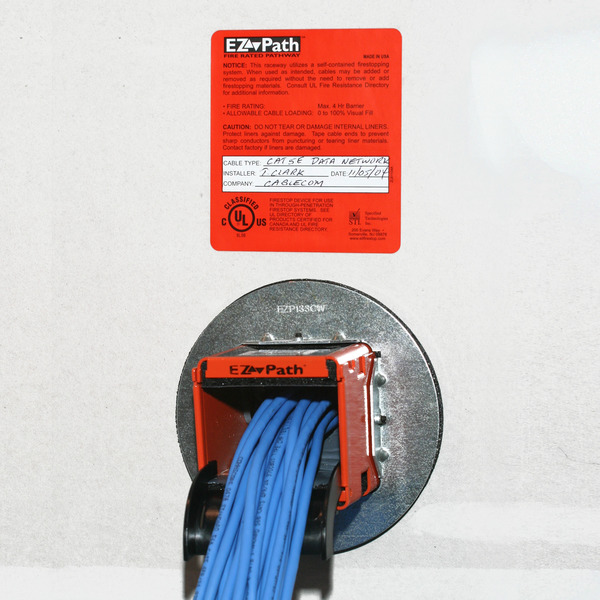

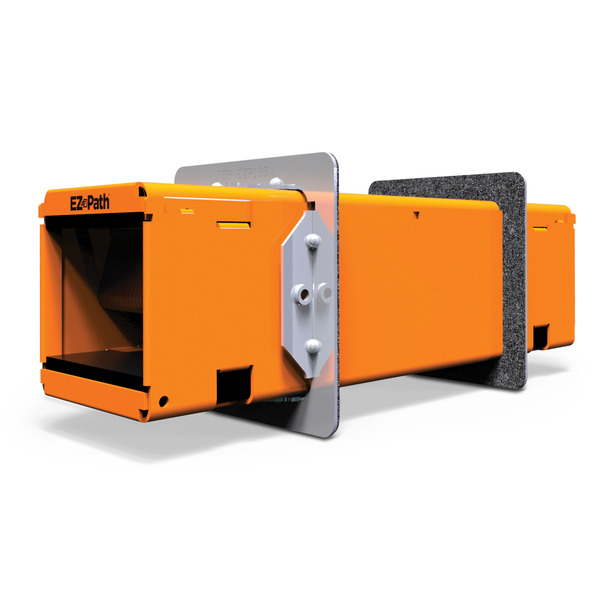

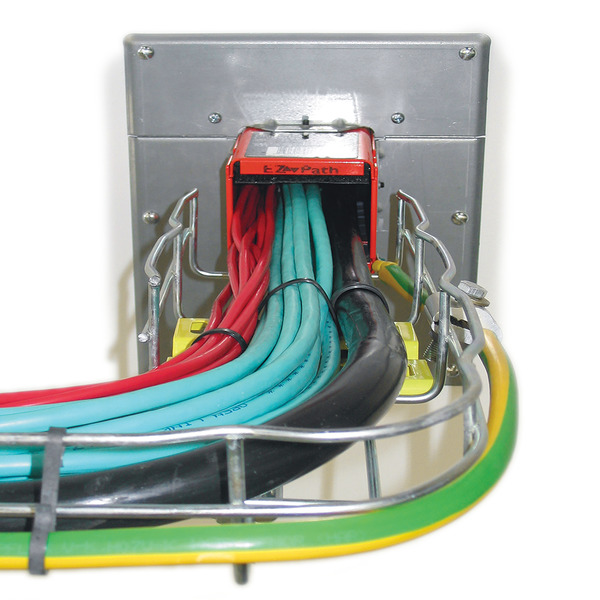

The EZ Path Series 33 Fire-Rated Pathway is a maintenance-free pathway solution for moderate cable volumes through fire-rated walls and floors. The Series 33 incorporates built-in intumescent pads that automatically adjust to cable fills. When exposed to flame and high temperatures, the intumescent pads expand to form a dense insulative char that prevent the passage of smoke and flame.

Technical Information

Material
Steel
Type
Radius Control Modules

Manufacturer Information

Brand
Ez-Path

General Product Info

12-Digit UPC
730573009338
Color
Orange
Product UPC
73057300933
Weight
0.25 lb

Dimensions

Height
3.8 Inch
Length
6-1/2 Inch
Width
3.3 in

Certifications and Compliance

Country of Origin
USA
Features
  • All data, video, and communications cable bundles shall utilize an enclosed fire-rated pathway device wherever said cables penetrate rated walls. The fire-rated pathway shall contain a built-in fire sealing system sufficient to maintain the hourly fire rating of the barrier being penetrated. The self-contained sealing system shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall firestop materials. The pathway shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
  • Self Sealing design providing exceptional F&L Ratings., Designed for New and Existing conditions., Full Suite of plate configurations for any field scenario., Available in an array of colors for easy cable pathway management., Allows for easy Moves, Adds, and Changes.
  • Self Sealing design providing exceptional F&L Ratings
  • Designed for New and Existing conditions
  • Full Suite of plate configurations for any field scenario
  • Available in an array of colors for easy cable pathway management
  • Allows for easy Moves, Adds, and Changes
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: Yes
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • Cables
  • Cable Tray
Properties
  • Finished Product
  • Light Weight
  • Low VOC
  • No Expiration
  • Paintable
  • Re-Enterable
  • Smoke Barrier
  • STC Rating
Construction Type
  • EZ Path Series 33 Fire Rated Pathway is designed for easy installation in floors and walls in all types of construction.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • Radius Control Modules
