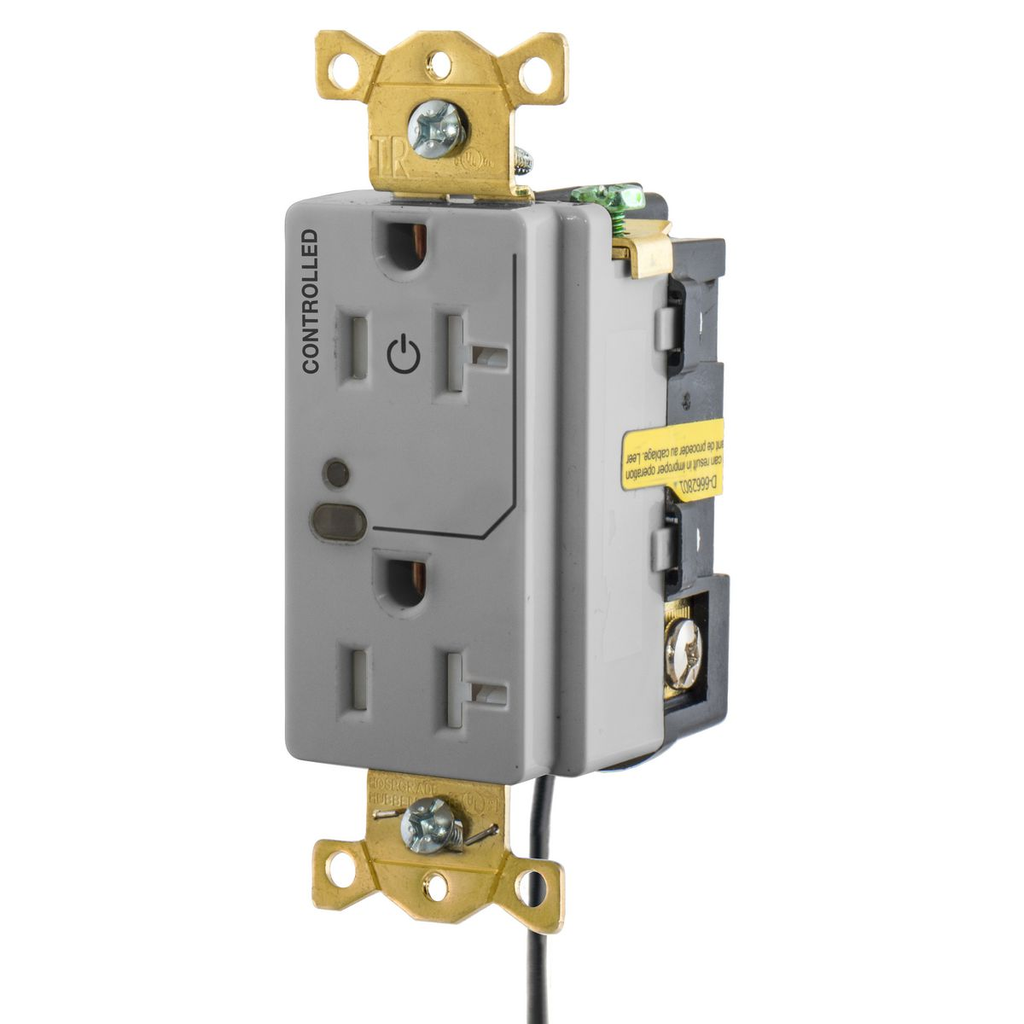

Product image for HWDK HBL5362LC1GY LOAD CTRL DR, SPL
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

HWDK HBL5362LC1GY LOAD CTRL DR, SPL

Manufacturer: Hubbell Wiring Device | Catalog # HBL5362LC1GY | Cooper Electric Part # 1497911
$126.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices,Wire Switched ,Logic Load Control Receptacles,Split Circuit, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray

Technical Information

Amperage
20 Amp
Applications
Logic Load Control Receptacles
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
104 degrees F
Size
Standard Product
Style
Wired
TC Connection
Terminal Screws
Type
Split Circuit
Voltage
125 Volt
Wattage
2501 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Duplex

General Product Info

12-Digit UPC
783585427676
Color
Gray
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585427676
Product Series
Switched Receptacles
Product UPC
78358542767
Weight
0.35 lb

Dimensions

Height
1.9 Inch
Length
4.7 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Designed for Automatic Receptacle (plug load) Control
  • Half controlled face and downstream control
  • Low voltage wire control
  • Tamper Resistant NOT Plug Resistant®
