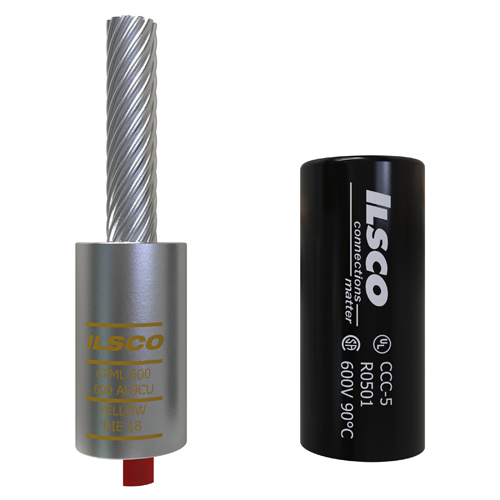

Product image for Ilsco CPML-600 Copper Compression Pigtail Adaptor, Conductor Size 600, Long Barrel, Tin Plated, UL, CSA
Email

Ilsco CPML-600 Copper Compression Pigtail Adaptor, Conductor Size 600, Long Barrel, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPML-600 | Cooper Electric Part # 149756
$220.31/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Long barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 600 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Yellow, primary color Silver, die index 18,

Technical Information

Applications
Copper Pigtail Adaptor
Barrel Length
2.75 in
Barrel Type
Long
Color Coding
Yellow
Conductor Material
Aluminum,Copper
Conductor Size
600 MCM
Conductor Type
Stranded
Connection Type
Compression
Material
Copper
Number of Conductors
1
Pin Length
3.000 in
Size
L:6.75;W:1.68;H:1.68 IN
Standard
UL Specifications: UL 486A-B,CSA File Number: LR-29601,UL File Number: E62525
Temperature Rating
90 degrees C
Type
CPM:AL/CU PIN
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669008913
Color
Silver
GTiN
00783669008913
Product UPC
78366900891
Weight
0.459 lb

Dimensions

Height
1.68 Inch
Inside Diameter
0.924 in
Length
6-3/4 Inch
Outside Diameter
1.5 in
Width
1.68 in
