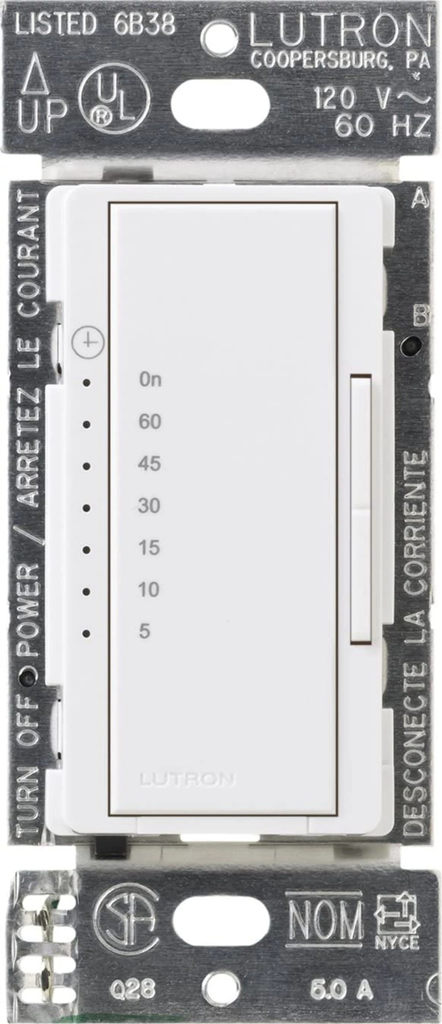

Product image for Lutron MA-T51MN-WH 120 VAC 5 Amp 1-Pole/Multi-Location White Countdown Timer Control Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Lutron MA-T51MN-WH 120 VAC 5 Amp 1-Pole/Multi-Location White Countdown Timer Control Switch

Manufacturer: Lutron | Catalog # MA-T51MN-WH | Cooper Electric Part # 149667
$54.58/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in white

Technical Information

Amperage
5 Amp
Applications
Multi-Location, Lighting Control
Connection Type
Screw-Type Terminals
Contact Configuration
NO
Contact Rating
5 A, 600 W
Enclosure
Plastic
Enclosure Material
Plastic
Insulation Material
Plastic
Material
Thermoplastic
Mounting Type
Wallbox
Number of Poles
1 Pole
Size

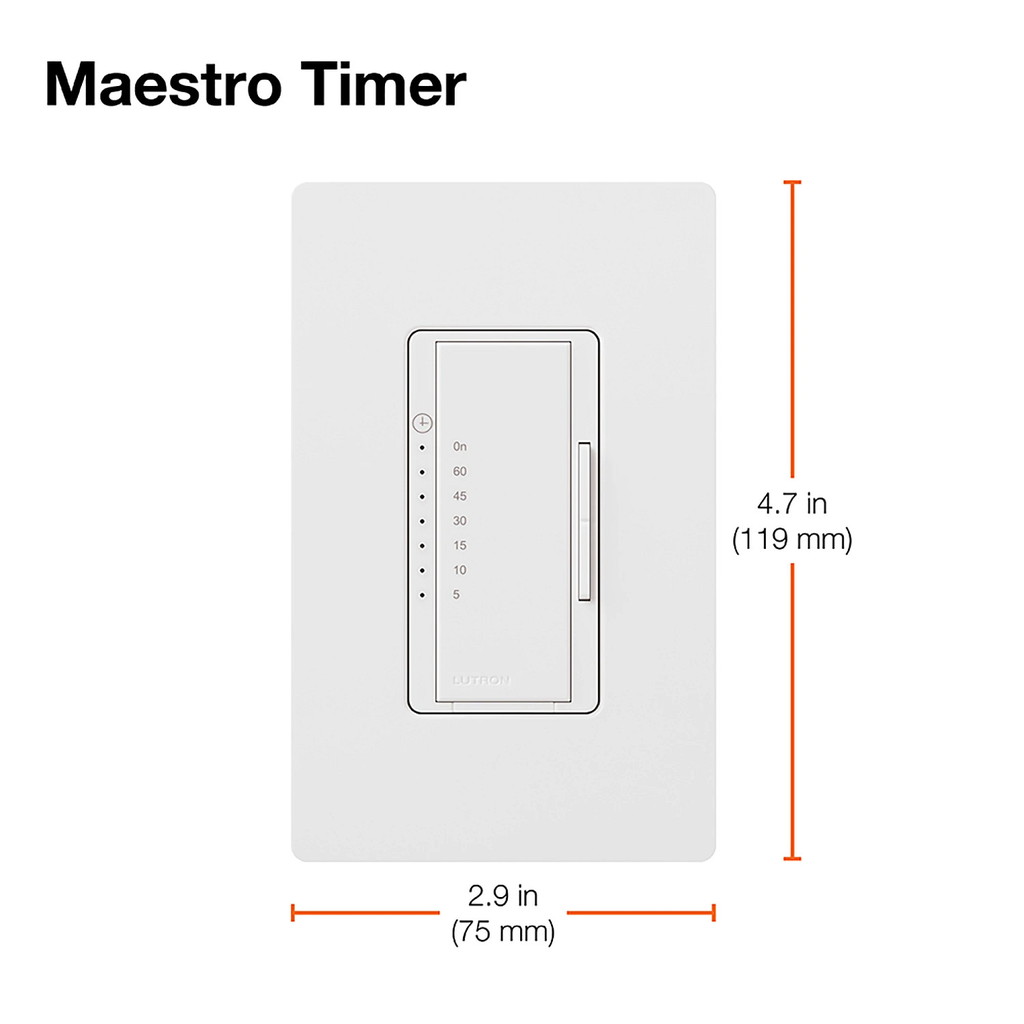

2.94 in
Standard
ANSI/IEEE,CUL,IEC,UL
TC Connection
Screw terminal
Type
1-Pole
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Maestro

General Product Info

12-Digit UPC
027557290845
Color
White
Finish
Gloss
GTiN
00027557290845
Product UPC
02755729084

Certifications and Compliance

Country of Origin
Mexico
Features
  • Includes (1) Maestro Countdown Timer Switch with Neutral; Gloss Finish
  • Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
  • Neutral required; 120V
  • 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
  • Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
  • Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
  • Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
  • Available in 10+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans

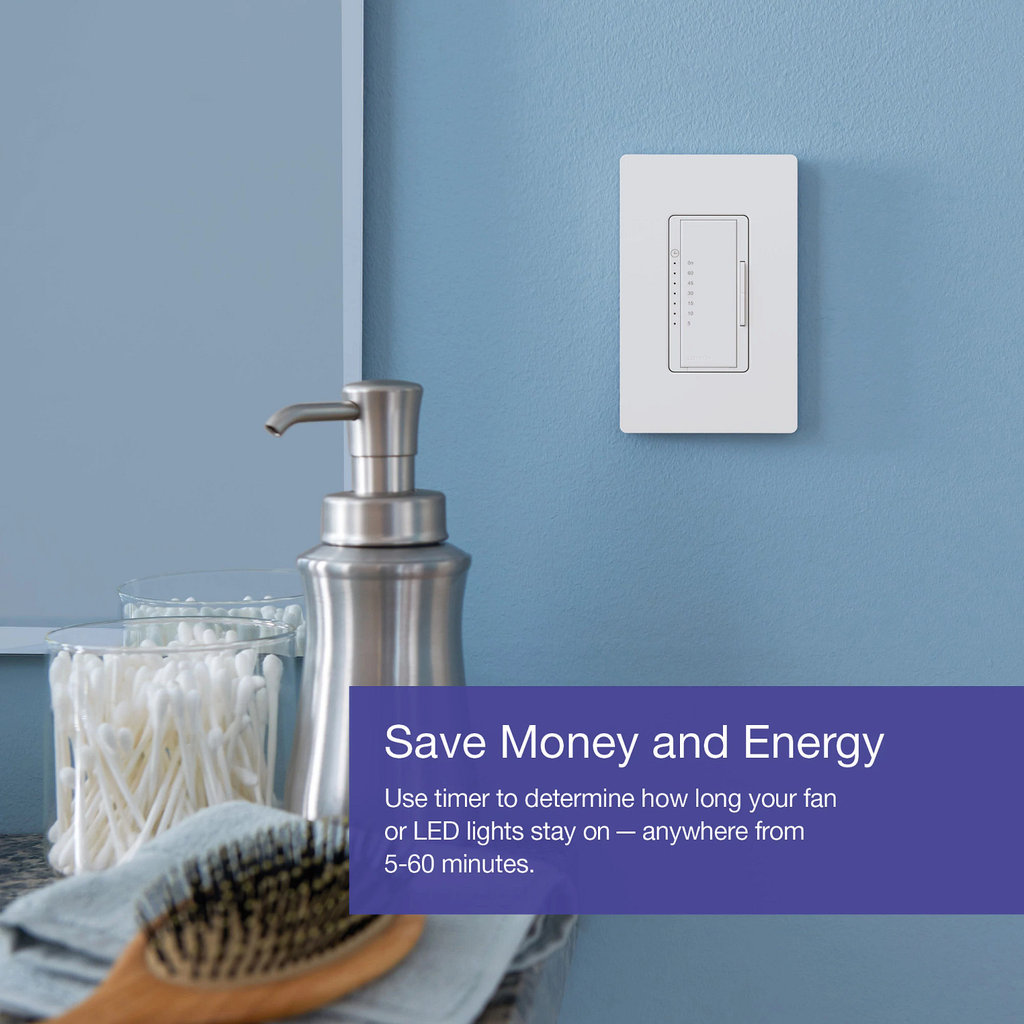

  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting
  • Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
  • Touch rocker to adjust countdown time
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.
Standards and Certifications
  • UL
  • IEC
  • cUL
  • ANSI/IEEE
