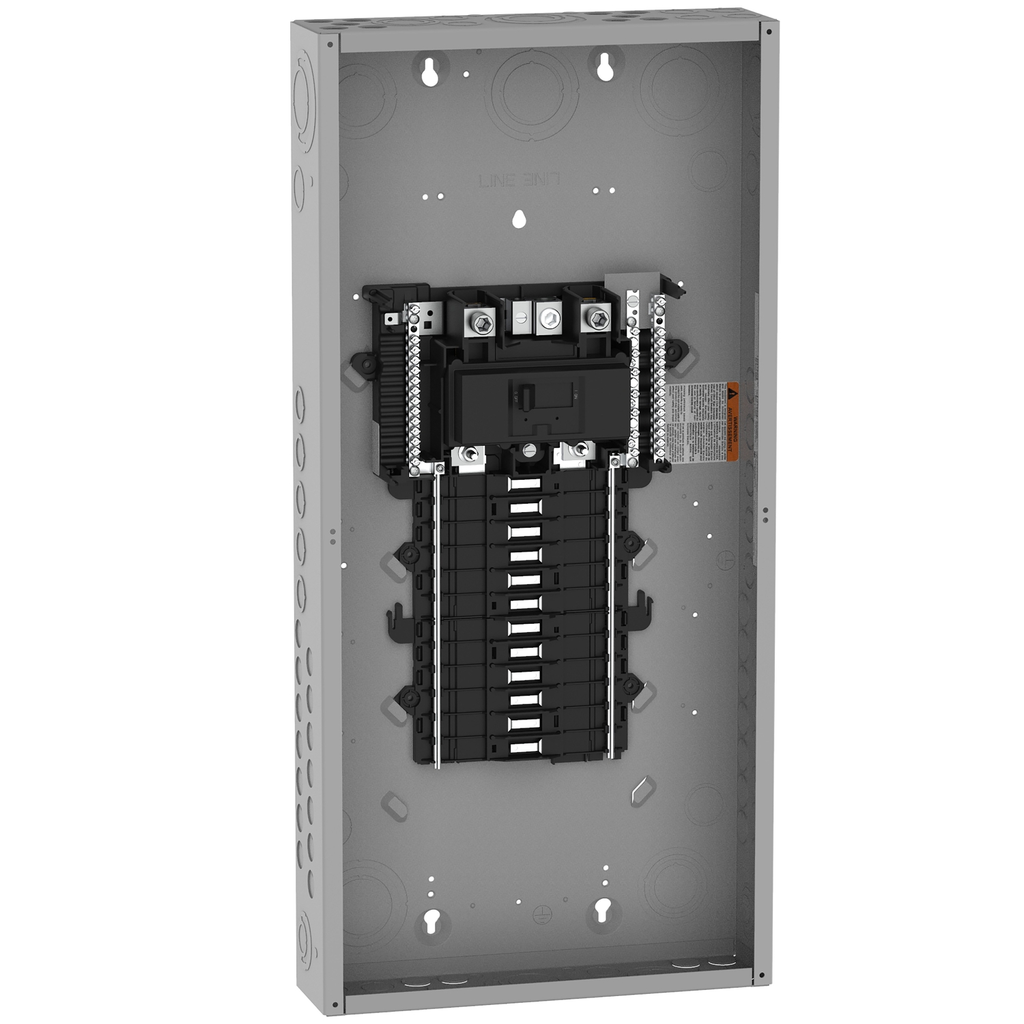

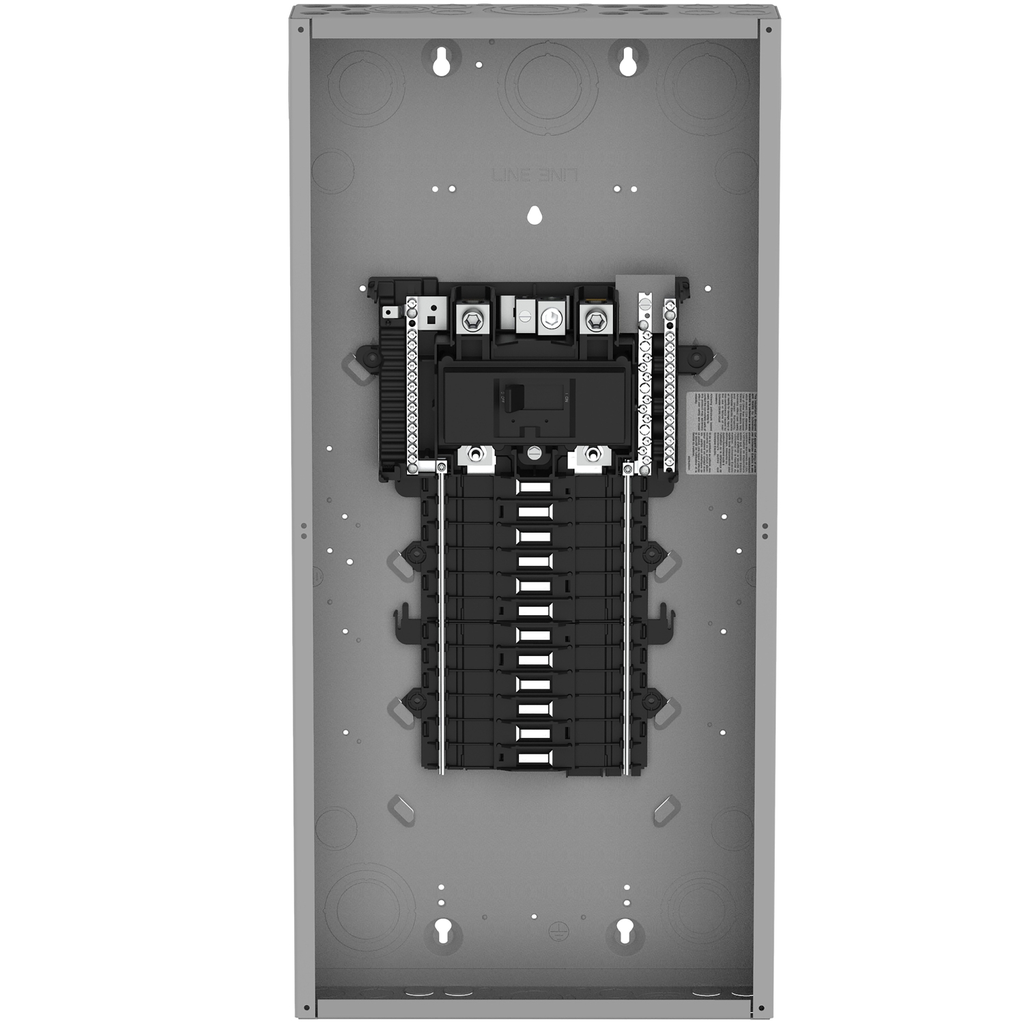

Square D QO124M200P 200A 120/240V 1phase Convertible Main Breaker Load Center, Plug-On Neutral, 24 Spaces / 36 Circuits, NEMA-1, Gray

Manufacturer: Square-D / Schneider | Catalog # QO124M200P | Cooper Electric Part # 1493429
$1,047.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Type 1 Indoor Type 3R Rainproof
Single Three
Main Breaker Main Lug
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Brochure Product Catalog Page CAD Drawing #1 CAD Drawing #2
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 24 spaces and 36 circuits. This system provides a 200A convertible main breaker in a NEMA 1 enclosure. It also includes plug on neutral and is UL rated.

Technical Information

Amperage
200 Amp
Current
200 Amp
Enclosure
1
Line Rated Current
200 A
NEMA Size
1
Net Weight
11.790 kg
Number of Circuits
36
Number of Phases
1 Phase
Number of Spaces
24
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
Short Circuit Current
22 kA
Short Circuit Current Ratng
22 kA

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901611189
GTiN
00785901611189
Product UPC
78590161118
Weight
11.790 kg

Dimensions

Depth
95 mm
Height
29.84 in
Width
14.25 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
USA
Features
  • Provides superior performance and durability
  • Straight in wiring saves wire, labor, and time
  • Faster installation using PoN breakers that connect directly
  • 50% more terminations for clutter-free wiring
  • Complies with UL 67 listed, CSA, and IEC standards
  • Designed to satisfy individual requirements
  • Compatible with Square D QO Plug-on Neutral Whole Home SPD
  • UL rated
  • Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
