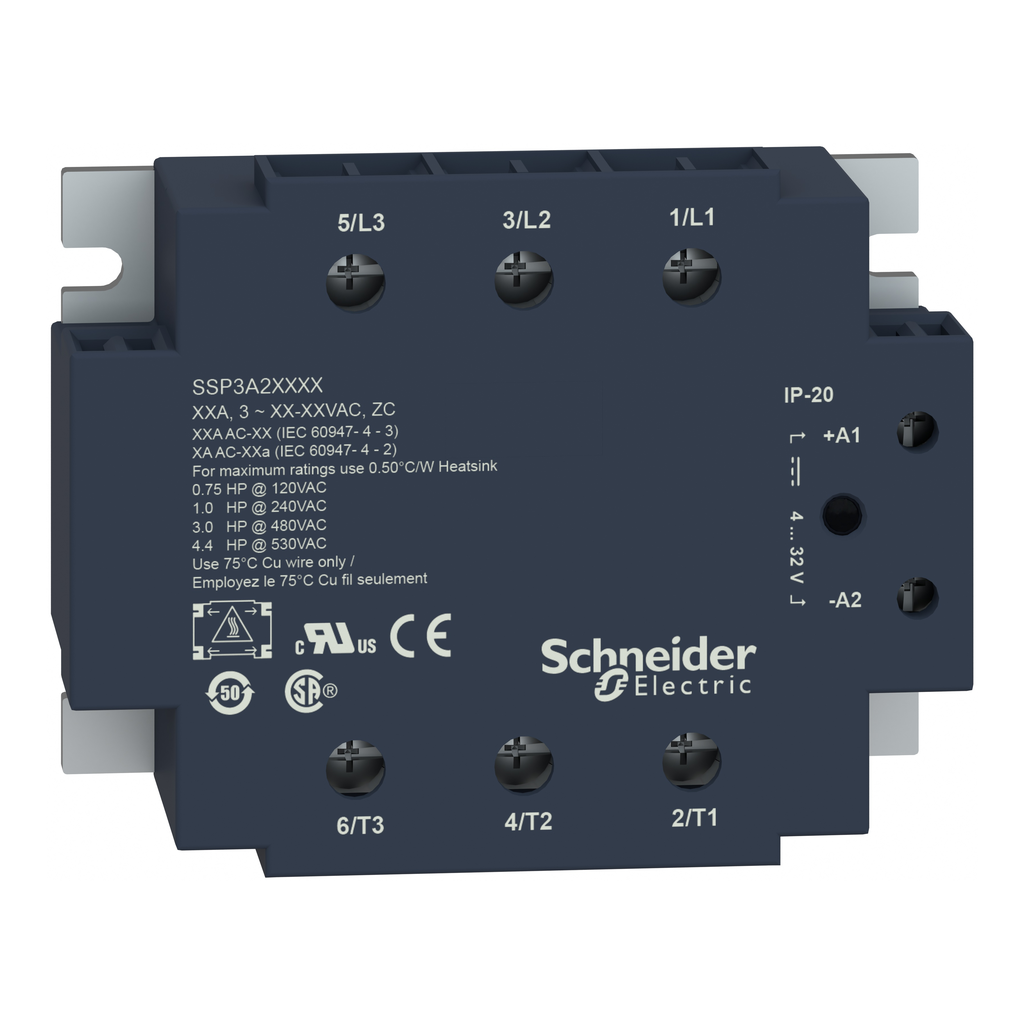

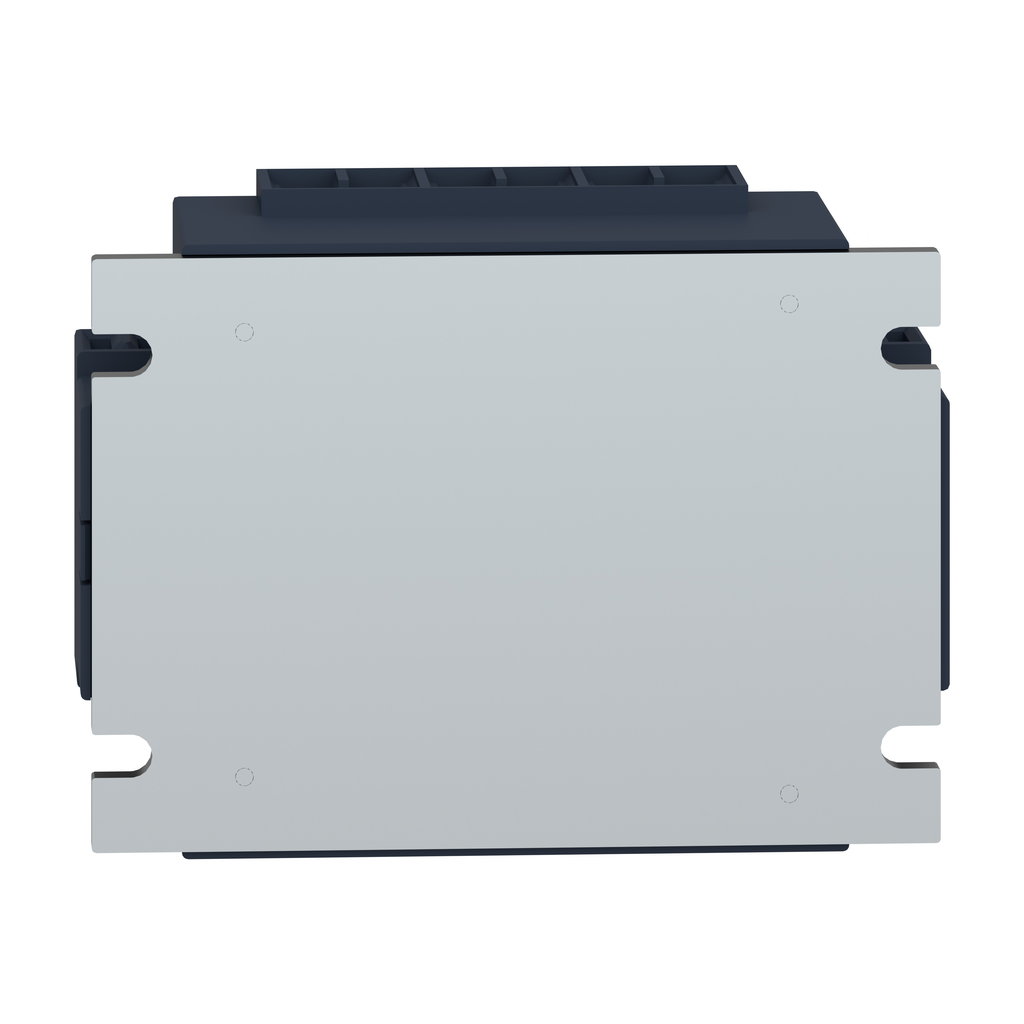

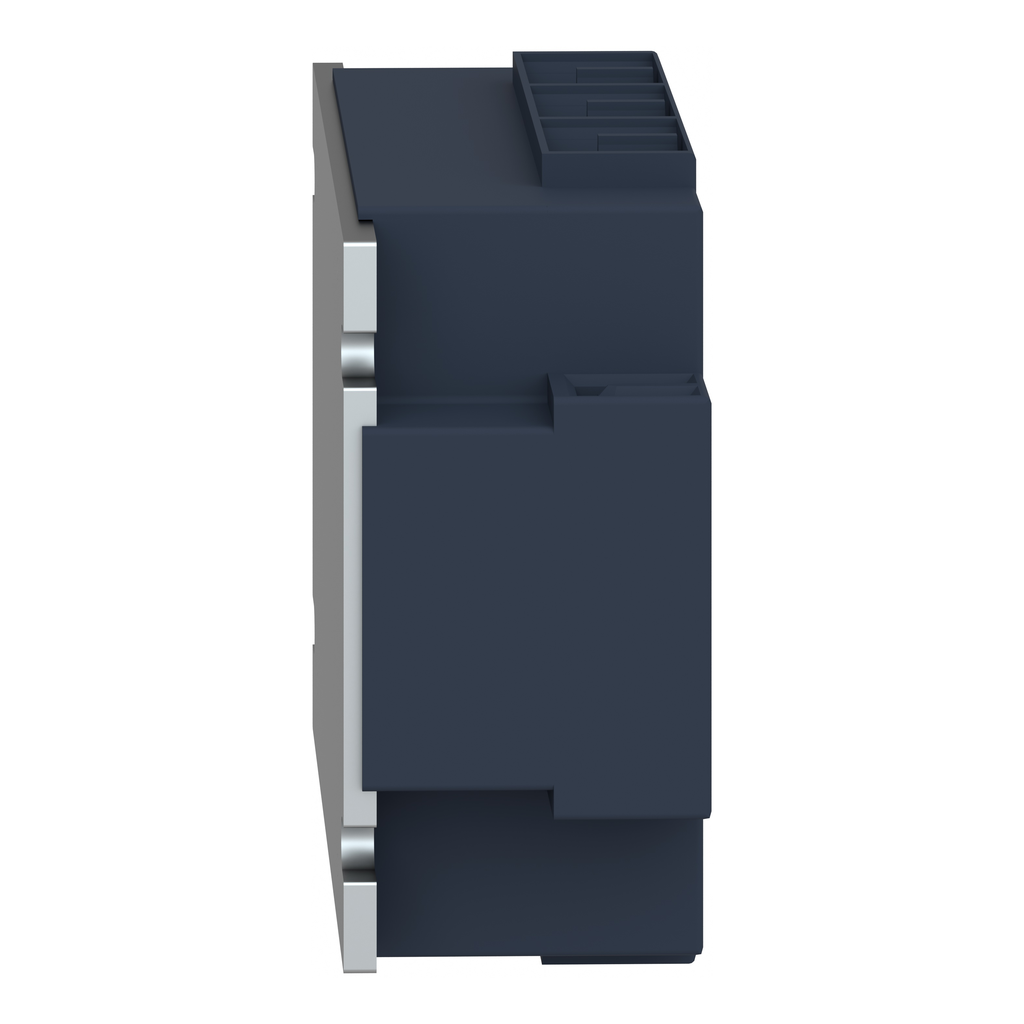

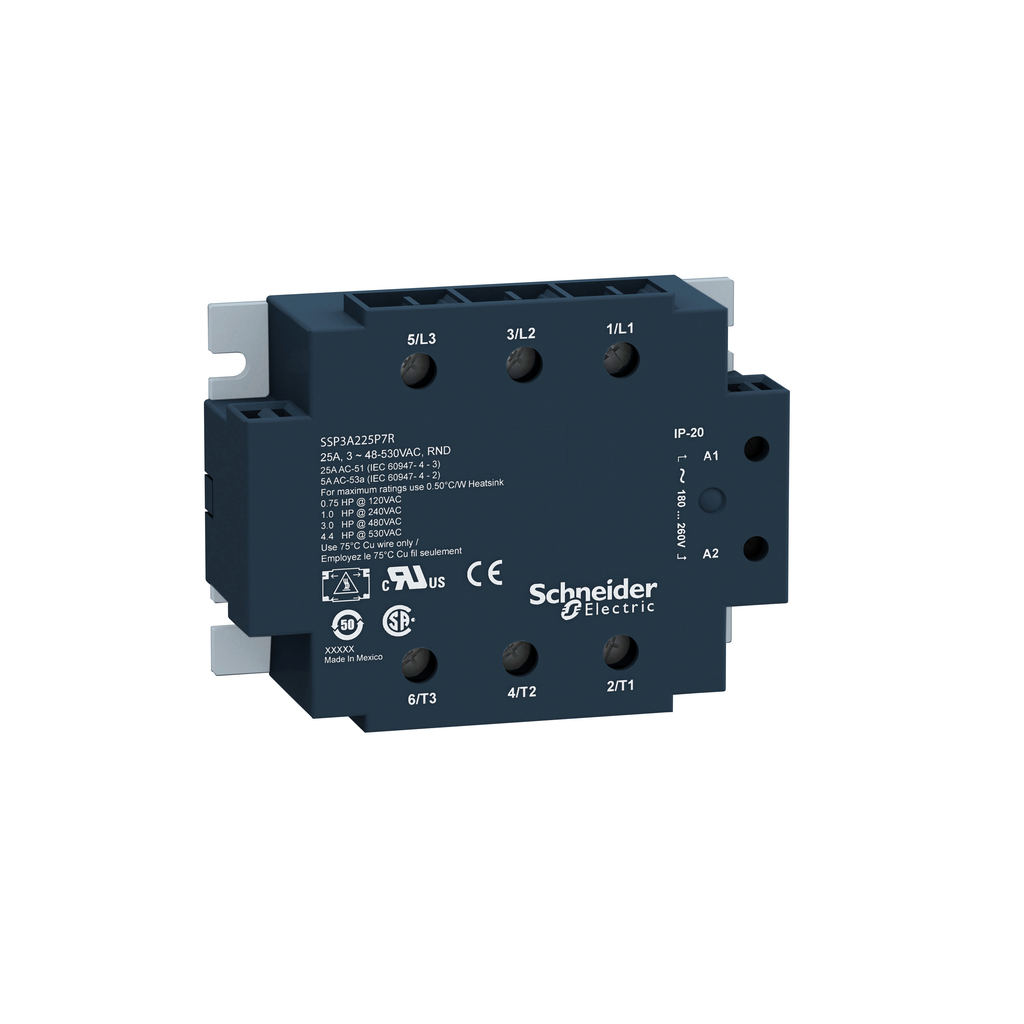

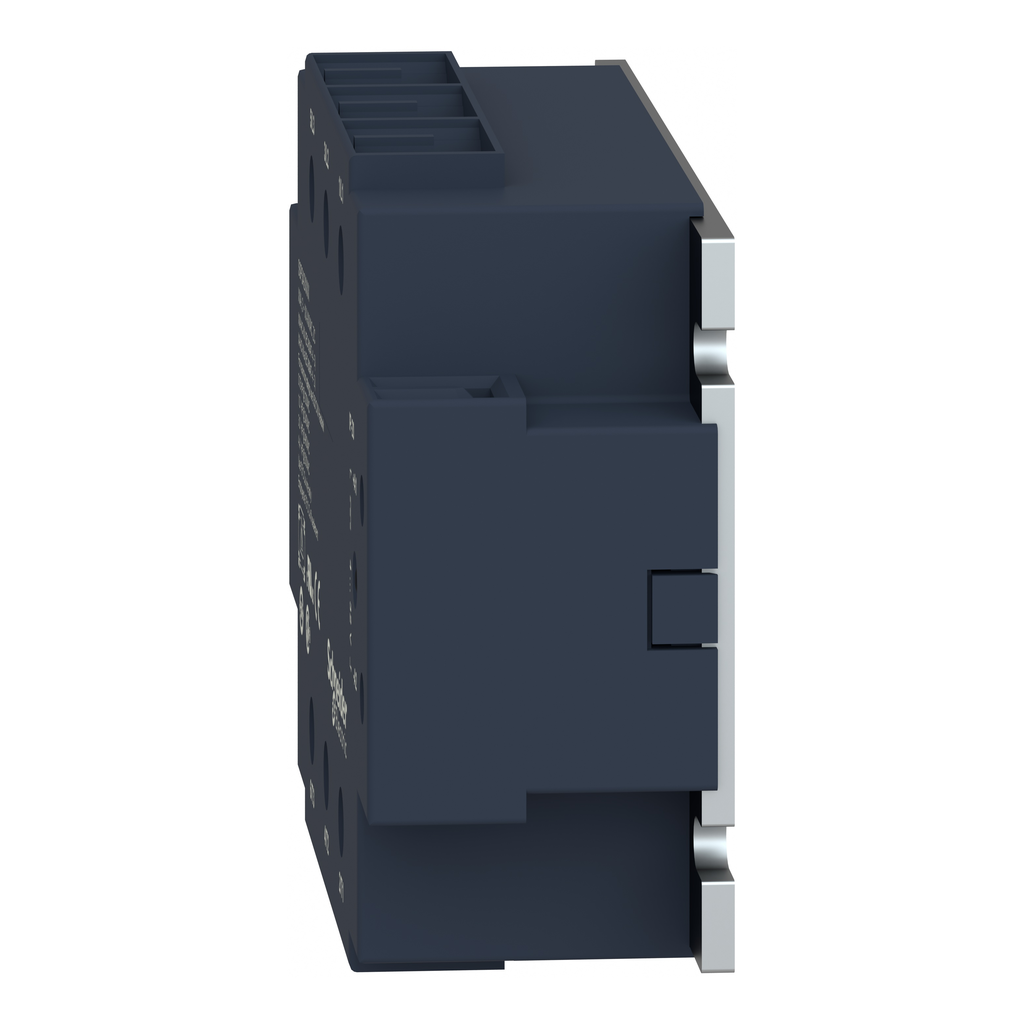

SQD SSP3A250P7 three phase relay, H

Manufacturer: Square-D / Schneider | Catalog # SSP3A250P7 | Cooper Electric Part # 1488327
$183.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
SSP panel mount relay is part of the Harmony Solid sate relays range. This three-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs Its rated current is 50A, is controlled withA 180V to 280V AC circuit, has a rated load voltage of 48V to 530V AC output. 0 It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events 0

Technical Information

Amperage
50 Amp
Applications
1.11 KW 40-40 AC 120 V AC-2.22 KW 40-40 AC 240 V AC-5.55 KW 40-40 AC 480 V AC-6.47 KW 40-40 AC 530 V AC,1.5 HP 40 AC 120 V AC-3 HP 40 AC 240 V AC-7.5 HP 40 AC 480 V AC-8.8 HP 40 AC 530 V AC
Dielectric Strength
4 kV AC for input/output;4 kV AC for input or output to case
Line Rated Current
50 A
Maximum Load Current
0.150 A
Net Weight
0.24 kg
Number of Phases
3 Phase
Operating Temperature
-40-80 Adegrees C
Output Voltage
48-530 V
Power Factor
0.5 (with maximum load)
Size
1.39 in
Standard
IEC 60950-1,IEC 61000,IEC 62314
Storage Temperature
-40-125 degrees C
TC Connection
SCREW TERMINALS 1 X 0.2...1 X 2.5 MMA, AWG 24...AWG 14) INPUT-SCREW TERMINALS 1 X 1.5...1 X 10 MMA, AWG 16...AWG 8) OUTPUT
Type
Solid state relay

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SSP

General Product Info

12-Digit UPC
785901977766
GTiN
03606480579844
Product UPC
78590197776
Weight
0.53 lb

Dimensions

Depth
35.4 mm
Height
79.7 mm
Width
101.3 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
Mexico
