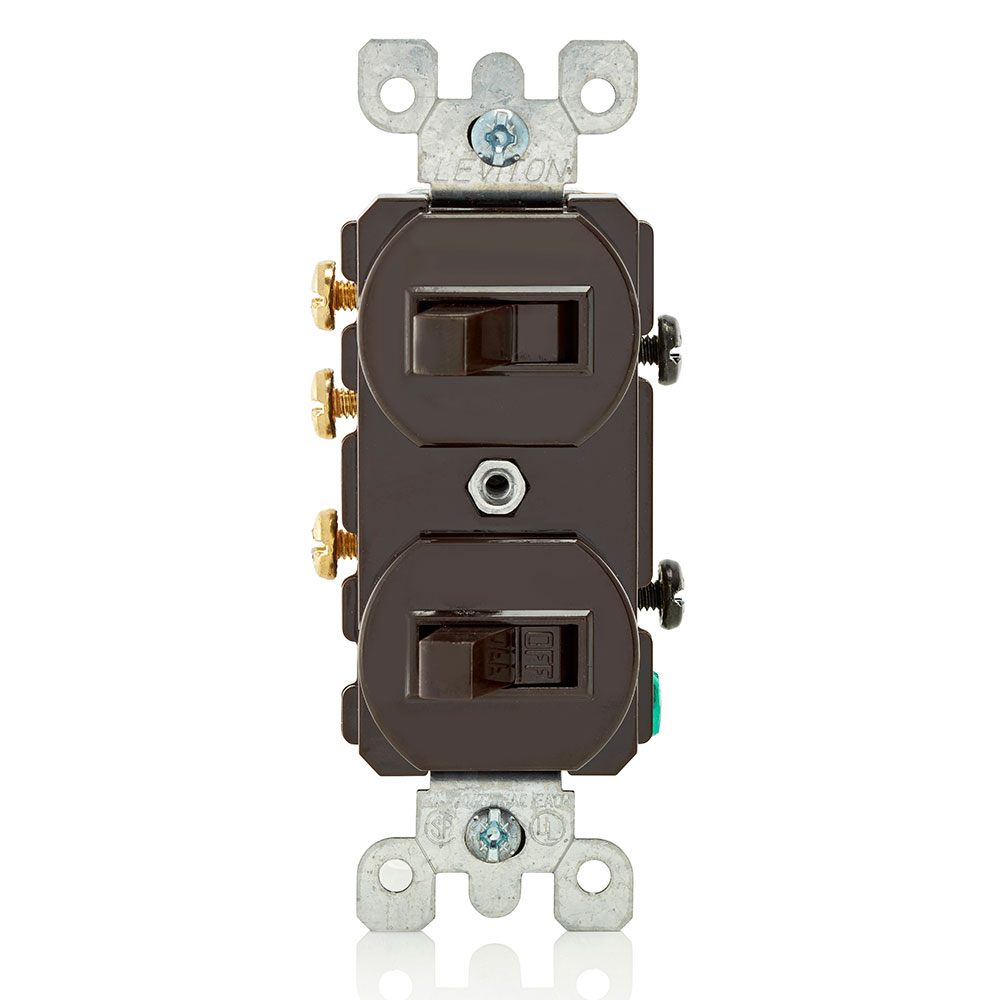

Product image for Leviton 5241 120/277 VAC 15 Amp Brown Thermoplastic Grounding Duplex Combination Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Leviton 5241 120/277 VAC 15 Amp Brown Thermoplastic Grounding Duplex Combination Switch

Manufacturer: Leviton Mfg Co | Catalog # 5241 | Cooper Electric Part # 148772
$57.79/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 120/277 Volt, Duplex Style Single-Pole / 3-Way AC Combination Switch, Residential/Commercial Specification Grade, Non-Grounding, Side Wired - Brown

Technical Information

Action
Toggle
Actuator
Toggle
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120/277 V
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Non-Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 to 120 degrees C
Size
4.20 H x 1.62 W x 16 D IN
Standard
ANSI C-73
TC Connection
Side Wired
Temperature Rise
30 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex, 3-Way
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL COMBINATION DEVIC

General Product Info

12-Digit UPC
078477229101
Color
Brown
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477229101
Product Type
2-Switch Combo
Product UPC
07847722910

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Ivory
Features
  • With Levitons extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and Tamper-Resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
