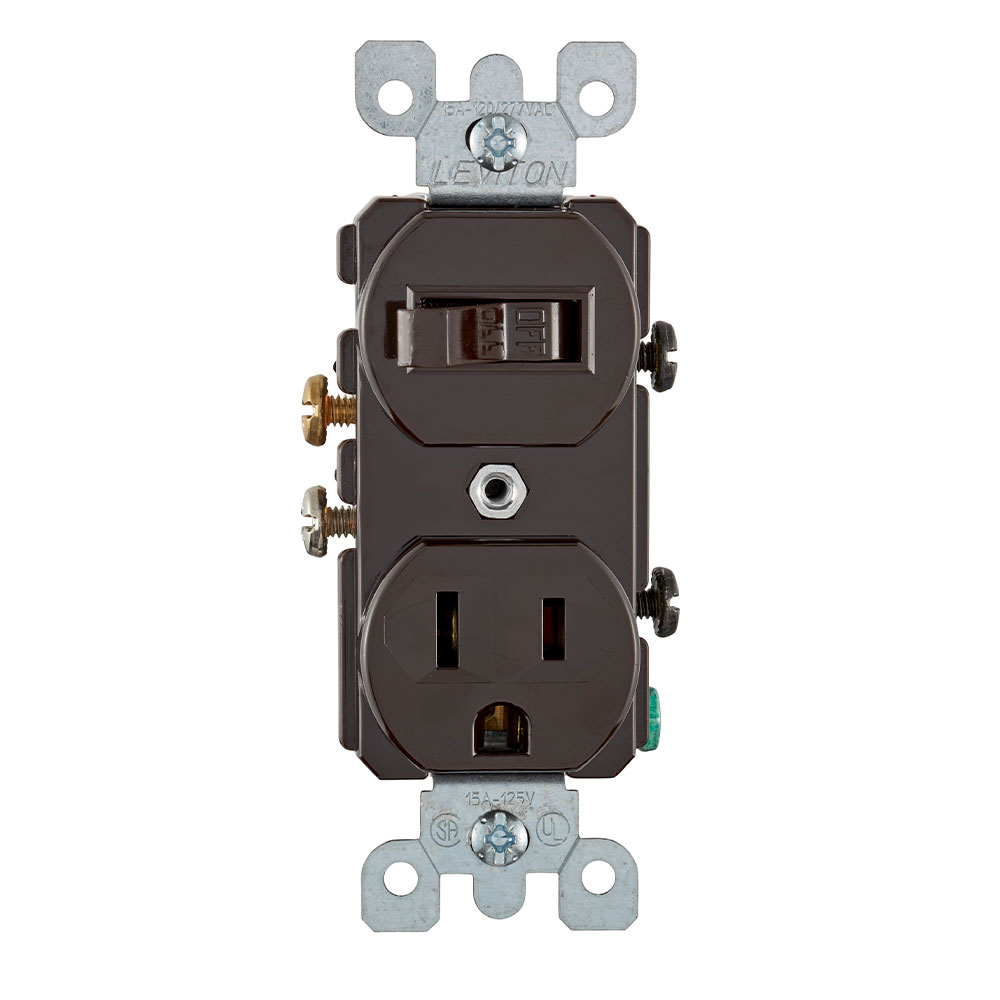

Product image for Leviton 5225 120 Volt 15 Amp 1-Pole NEMA 5-15R 1/2 Hp Brown Thermoplastic Grounding Duplex AC Combination Switch
Email

Leviton 5225 120 Volt 15 Amp 1-Pole NEMA 5-15R 1/2 Hp Brown Thermoplastic Grounding Duplex AC Combination Switch

Manufacturer: Leviton Mfg Co | Catalog # 5225 | Cooper Electric Part # 148771
$41.50/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
7 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet
15 Amp, 120 Volt, Duplex Style Single-Pole / 5-15R AC Combination Switch, Commercial Grade, Grounding, Side Wired, - Brown

Technical Information

Actuator
Toggle
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wired
Contact Rating
120 V
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate, Recessed/Flush
NEMA
5-15R
Number of Poles
1 Pole
Operating Temperature
-40 to 120 degrees C
Size
4.20 H x 1.62 W x 16 D IN
Standard
ANSI C-73
Switch Type
Toggle
TC Connection
Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Termination Type
Side Wire
Torque
14 lb-in
Type
Duplex
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL COMBINATION DEVIC

General Product Info

12-Digit UPC
078477226506
Color
Natural
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTiN
00078477226506
Product Type
Switch/Outlet Combo
Product UPC
07847722650

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-15R
Color Variations
  • Ivory
Features
  • AC quiet switches have silver-cadmium oxide contacts and receptacles have double-wipe contacts for maximum conductivity
  • All devices have grounding screw
  • Side wired with terminal screws that accept up to #12 copper or copper-clad wire
  • Fit standard wallboxes
  • Break-off tabs on devices with AC quiet switches permit conversion to seperate feeds
  • Backed by a Limited Two-Year Warranty
  • Functional provides multiple controls in a single-gang space
  • Durable impact-resistant thermoplastic nylon construction
  • Compatible designed for use with Leviton traditional wallplates
