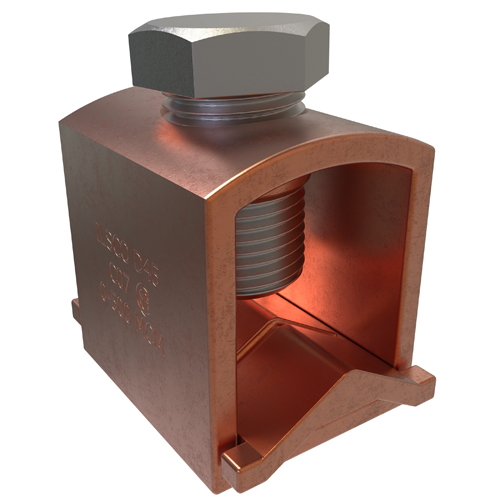

Ilsco CO7 Copper Box-Type Mechanical Lug, Conductor Range 500-1/0, 1 Hole

Manufacturer: Ilsco | Catalog # CO7 | Cooper Electric Part # 1487438
$123.22/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
ILSCO Box-Type Mechanical Lug, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 1/4-20 in, mounting hole spacing 0.719 in., UL 486A/B Recognized, C22.2 No. 65-03, Copper Primary Conductor 500 kcmil - 1/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/4 External Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
Box-Type Mechanical Lug
Conductor Material
Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.201 in
Number of Conductors
1
Number of Holes
1 Hole
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
CO:BOX TYPE LUG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669027808
Color
Copper
GTiN
00783669027808
Product UPC
78366902780
Weight
0.456 lb

Dimensions

Height
1.479 Inch
Length
1-3/8 Inch
Width
1.125 in
