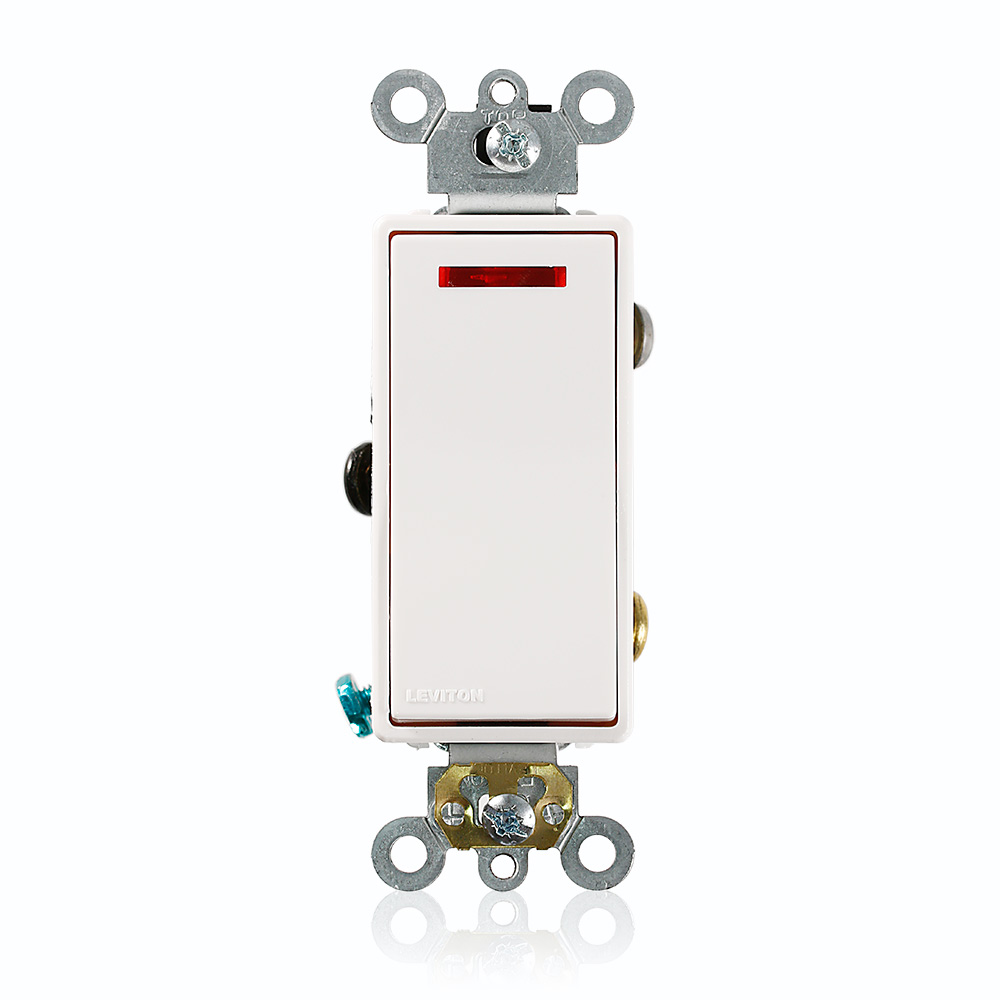

Product image for Leviton 5628-2W 120 VAC 20 Amp 1 Hp White Thermoplastic Polyester Self Grounding Illuminated Rocker Decorator Quiet Switch
Image thumbnail 0
Image thumbnail 1
Email

Leviton 5628-2W 120 VAC 20 Amp 1 Hp White Thermoplastic Polyester Self Grounding Illuminated Rocker Decorator Quiet Switch

Manufacturer: Leviton Mfg Co | Catalog # 5628-2W | Cooper Electric Part # 148492
$49.07/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 120 Volt, Decora Plus Rocker Pilot Light - Illuminated ON - Req. Neutral Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

Technical Information

Actuator
Rocker
Amperage
16 Amp
Applications
For Commercial use
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120 VAC, 20 A
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Indicator
Pilot Light
Material
Thermoplastic
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wire
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Illuminated
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477515648
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
GTiN
00078477515648
Product UPC
07847751564

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Decora Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Color Variations
  • Brown
Related Products
  • 5628-2
  • 5628-2I
  • 5628-2T
