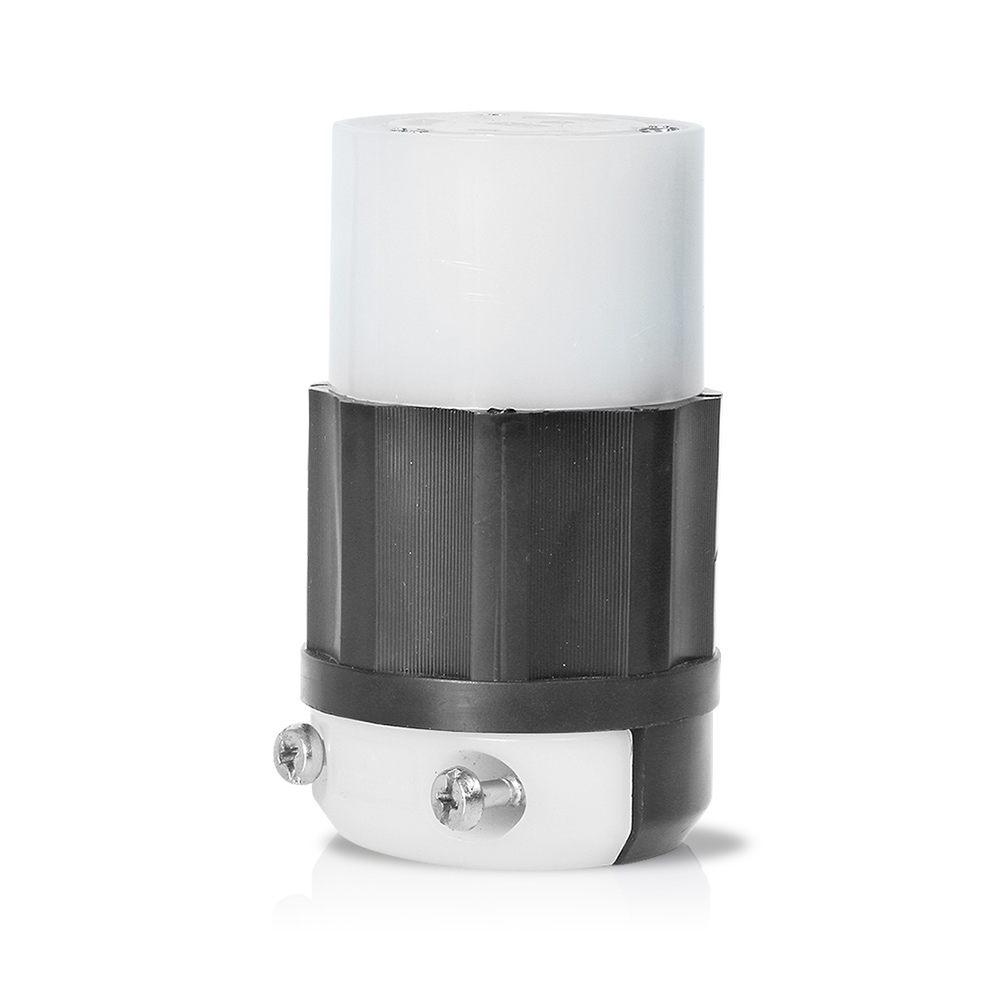

Product image for LEV 4889-C EB CONN LOCK 3PO 3WI L11
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LEV 4889-C EB CONN LOCK 3PO 3WI L11

Manufacturer: Leviton Mfg Co | Catalog # 4889-C | Cooper Electric Part # 1483333
$84.75/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 250 Volt 3-Phase, NEMA L11-15R, 3P, 3W, Locking Connector, Industrial Grade, Non-Grounding, - BLACK-WHITE

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Flamability Class
Rated HB Or Better UL94
Grounding
Non-Grounding
Material
Nylon
NEMA
L11-15R
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Screw Type
Steel,Zinc-Plated
Size
2.76 H x 1.53 W IN
Standard
CSA,UL
Type
Locking Connector
Voltage
250 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477795866
Color
Black,White
Environment
Dry
GTiN
00078477795866
Product UPC
07847779586

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Backed-out, color-coded brass terminal screws
  • Deep slotted triple drive face module and cord clamp screws
  • Deep wire wells with transparent wiring chambers
  • Single piece 0.035 inch thick contacts with NO rivets for longest life and continuous conductivity
  • Nylon face module features Amperage, Voltage, and NEMA configuration molded into face for easy identification and replacement.
  • Fluted nylon housing makes it easier to grip with gloves and in debris-laden environments
  • Thick-walled, super tough nylon housing resists abuse and impact
  • Single piece external cord clamp includes catalogue number and NEMA configuration for easy identification
  • External cord clamp accepts wire mesh connection grips
  • Connectors ship with standard white and black cord clamp. Color-coded cord clamps available to identify amperage or equipment. Choose from blue, green, yellow, red, and orange.
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
NEMA
  • L11-15R
