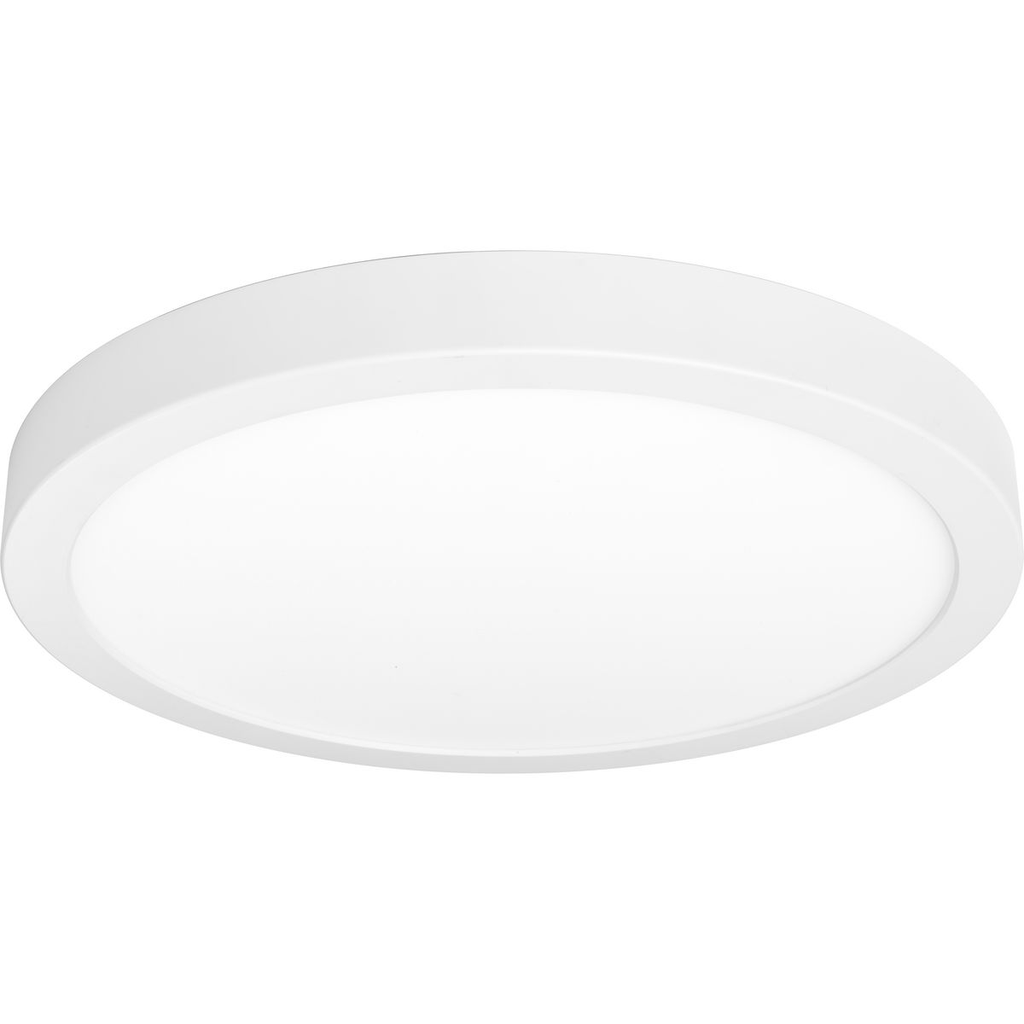

Product image for Progress P810017-030-30 Everlume Collection 14" Edgelit Surface Mount
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Progress P810017-030-30 Everlume Collection 14" Edgelit Surface Mount

Manufacturer: Progress Lighting | Catalog # P810017-030-30 | Cooper Electric Part # 1482498
$147.39/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
13 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The P810017 Edgelit Flush Mount delivers a solution for both residential and commercial markets. The Edgelit technology provides a bright and evenly illuminated surface in a very slim profile. The integrated LED power supply does not protrude into the junction box, allowing for compatibility to 4" octagonal, 4" round shallow and 4" round PVC junction boxes.This surface mounted luminaire measures 14" in diameter with an overall height of 1". In addition, the P810017 is wet location rated, Title 24 . JA8 . 2016 listed, ENERGY STAR listed and is a cost effective solution for fire rated applications (when installed onto a fire rated junction box). The P810017 luminaire combines modern aesthetic, new technology, performance, cost and safety benefits.

Technical Information

Amperage
0.168 Amp
Bulb Included
Yes
Color Accuracy
90
Color Rendering Index
90
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Frequency
60 Hz
Glass Style
White
Lamp Type
LED
Lamp Wattage
19.5 W
Lumens
1,725 Lumen
Material
Aluminum
Number of Lamps
1,1
Power Source
Hardwired
Style
Modern
Type
Non-Reversing
Voltage
120 Volt
Wattage
19.5 Watt
Wire Length
6 in

Packaging

Shipping Weight
4.37 Pound

Manufacturer Information

Brand
Progress
Sub Brand
Progress LED

General Product Info

12-Digit UPC
785247225897
Collection
EdgeLit
Color
White
Finish
Painted,Painted,White
GTiN
00785247225897
Product UPC
78524722589
Weight
1.1 Pound

Dimensions

Depth
14 Inch
Height
1-1/8 Inch
Length
14 Inch
Warranty Length
5 yr
Width
14 Inch

Certifications and Compliance

CA Prop65 Warning
Yes
Country of Origin
China
Features
  • Simple installation to steel mounting plate
  • Light weight polycarbonate luminaire construction
  • PMMA diffuser controls glare and provides an evenly illuminated surface
  • 1725 lumens (delivered), 90CRI, 3000K
  • Integrated DC LED power supply capable of flicker-free dimming to 10% brightness with many Triac/Forward Phase dimmers (See Dimming Notes)
  • Can be installed to 4\" octagonal j-box, 4x1/2\" round shallow j-box and 4\" round PVC j-box
  • Suitable for use in IC or Non-IC applications
  • Meets California Title 24 JA8-2016 and is Energy Star listed
  • Suitable for use in clothes closets when installed in accordance with the NEC 410.16 spacing requirements.
