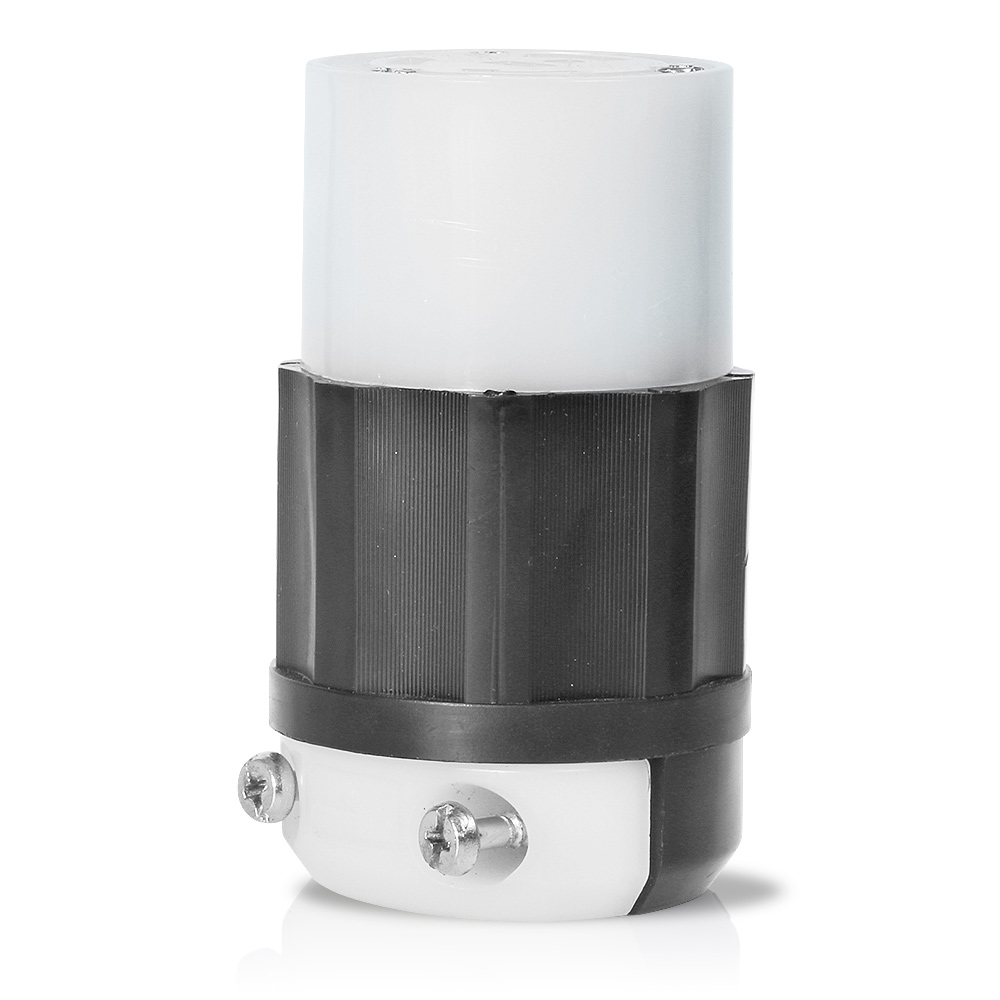

Product image for Leviton C2623 30amp 250v Black Locking Connector Body, 2-Pole 3-Wire, Industrial Grade
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Leviton C2623 30amp 250v Black Locking Connector Body, 2-Pole 3-Wire, Industrial Grade

Manufacturer: Leviton Mfg Co | Catalog # C2623 | Cooper Electric Part # 148185
$164.96/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 250 Volt, NEMA L6-30R, 2P, 3W, Locking Connector, Industrial Grade, Grounding - Black/White

Technical Information

Amperage
30 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Cable
NEMA
L6-30R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
28 Diameter X 3.53 L IN
Standard
ANSI C-73
TC Connection
Screw, 6 Terminals
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Straight
Voltage
250 Volt
Wire Count
3
Wire Size
16-8 AWG
Wire Type
S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477811139
Color
Black/White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477811139
Product UPC
07847781113

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive limited lifetime warranty
NEMA
  • L6-30R
