Product image for BB ADR99-34 AL 3CNDTR 4HOLE MOUNT 5
Image thumbnail 0
Image thumbnail 1
Email

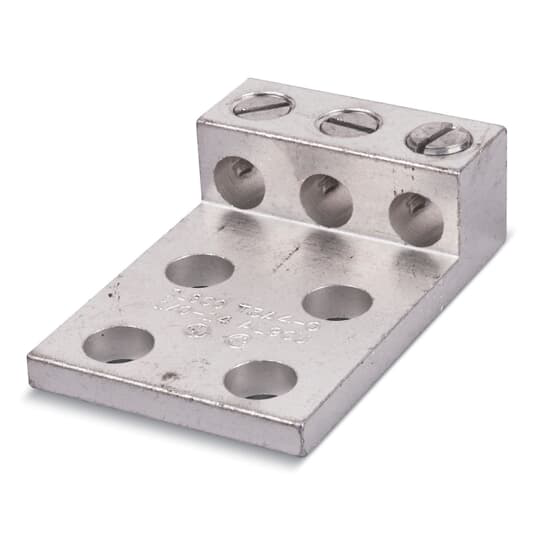

BB ADR99-34 AL 3CNDTR 4HOLE MOUNT 5

Manufacturer: Blackburn / Thomas & Betts | Catalog # ADR99-34 | Cooper Electric Part # 1480482
$257.63/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Three-Conductor, Four-Hole Mount for Conductor Range Max 1000 kcmil, Min 500 kcmil

Technical Information

Material
Aluminum
Number of Conductors
3
Standard
UL E9809
Type
Dual-Rated Mechanical Connector

Manufacturer Information

Brand
Blackburn

General Product Info

12-Digit UPC
783786610525
Finish
Tin Plated
GTiN
00783786610525
Product UPC
78378661052

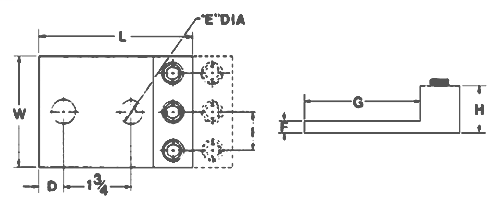

Dimensions

Height
1-7/8 Inch
Length
6-3/16 Inch
Width
4-3/4 in
Certifications
  • UL
  • CSA
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
Features
  • Easy Installation - no special tools required.
