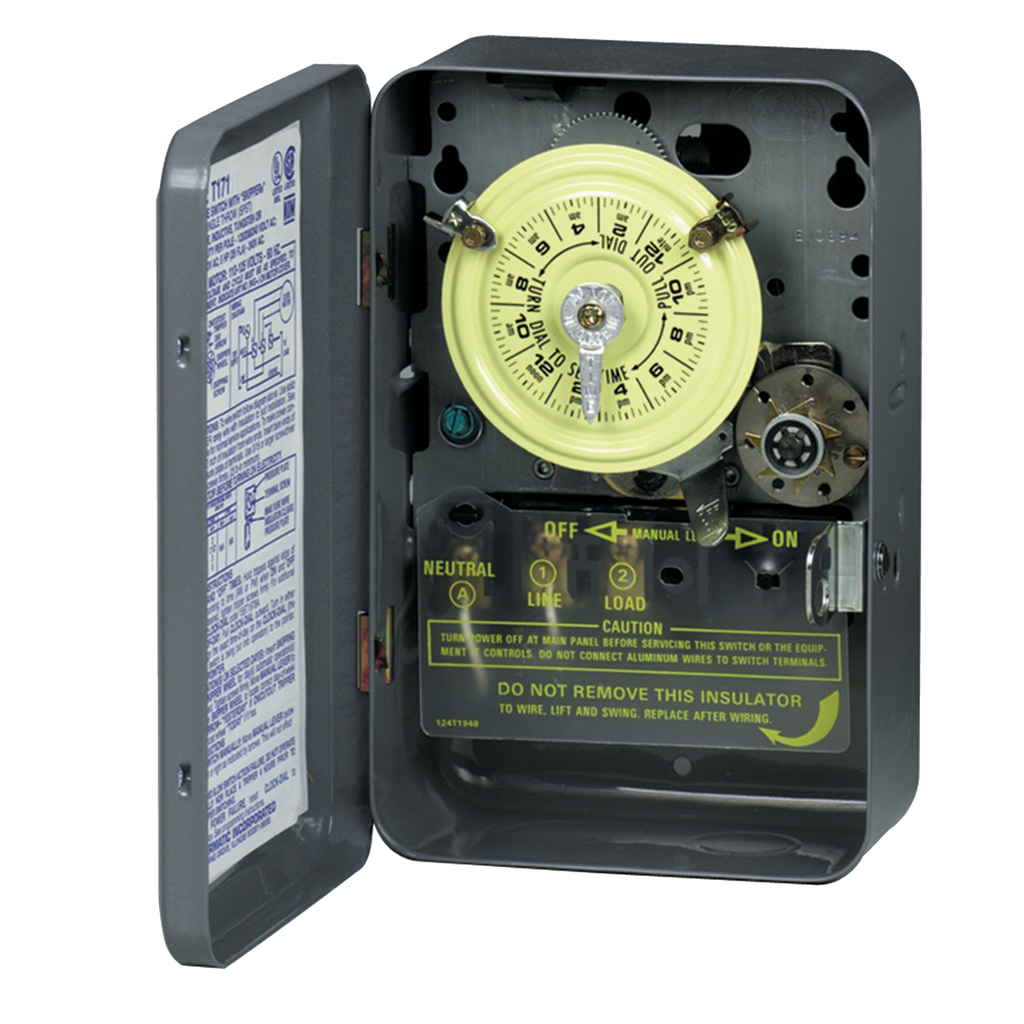

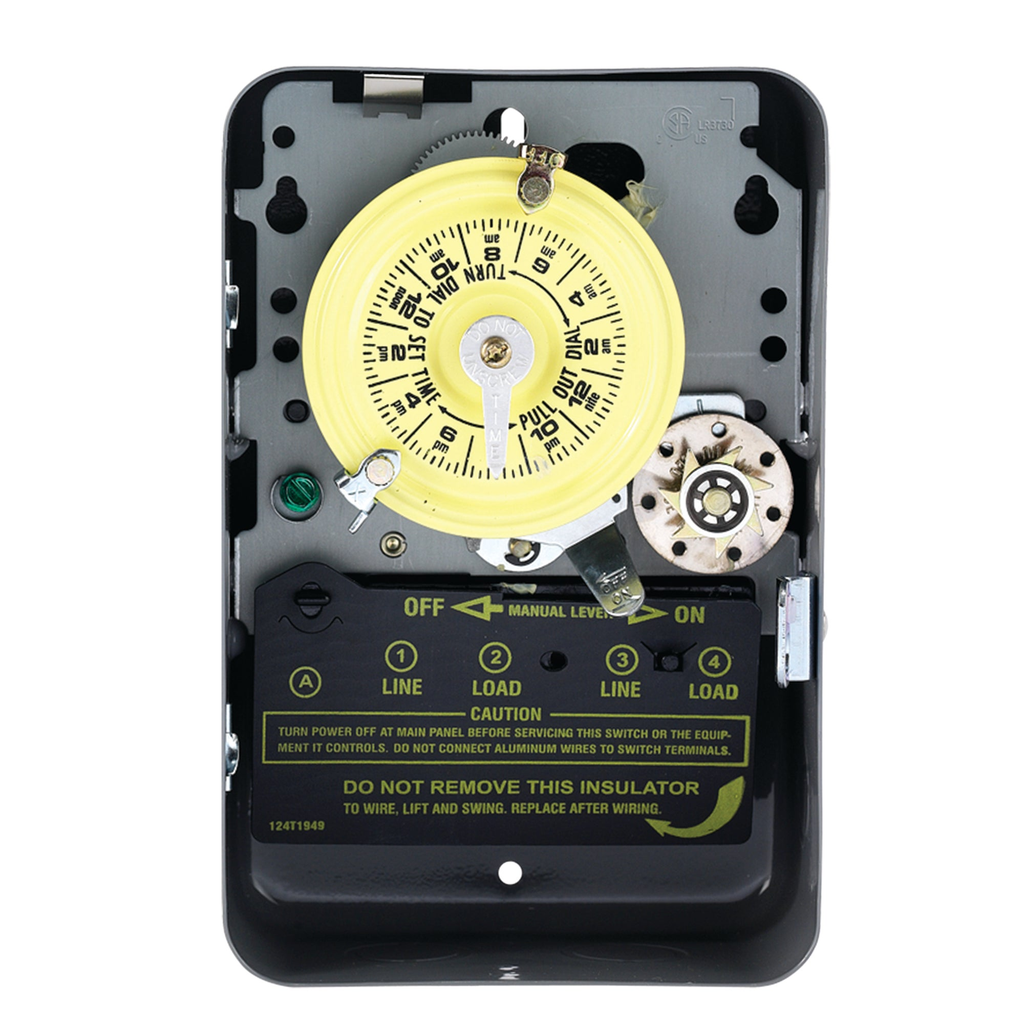

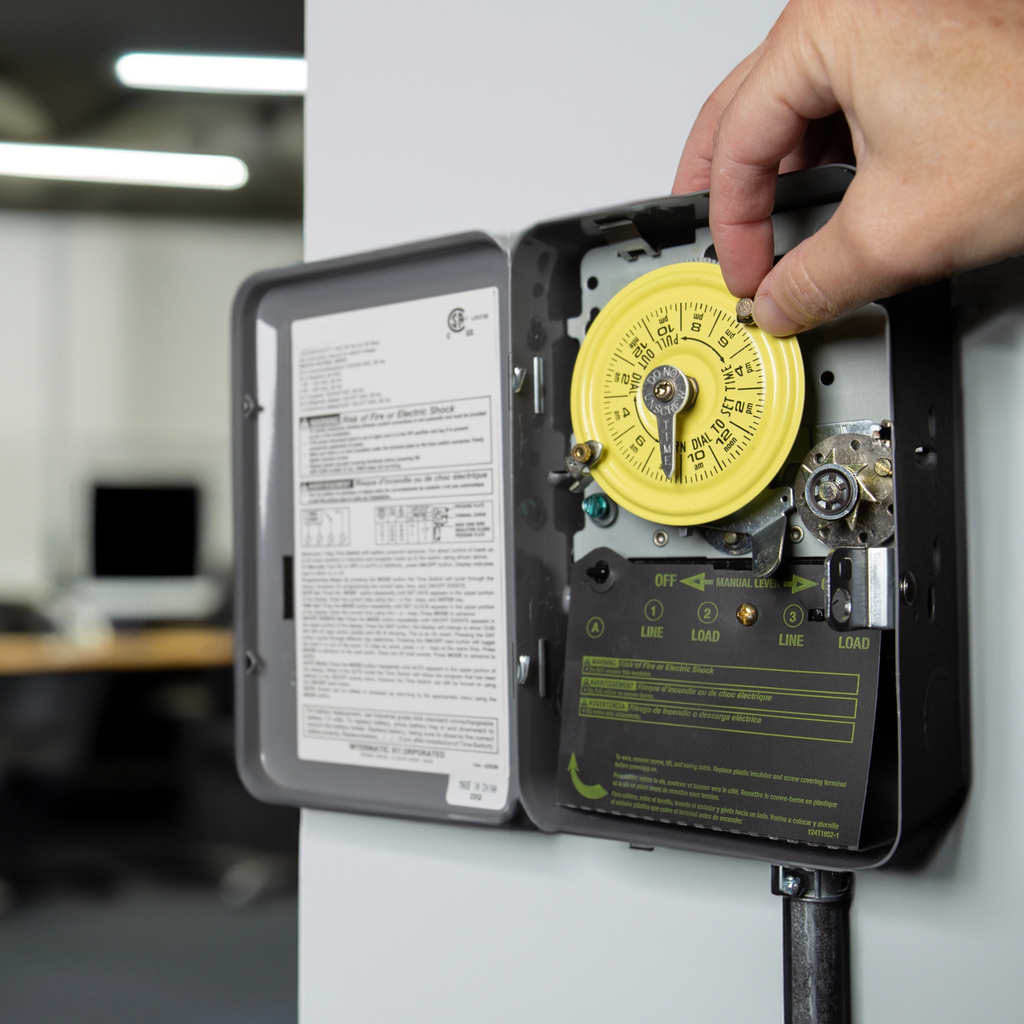

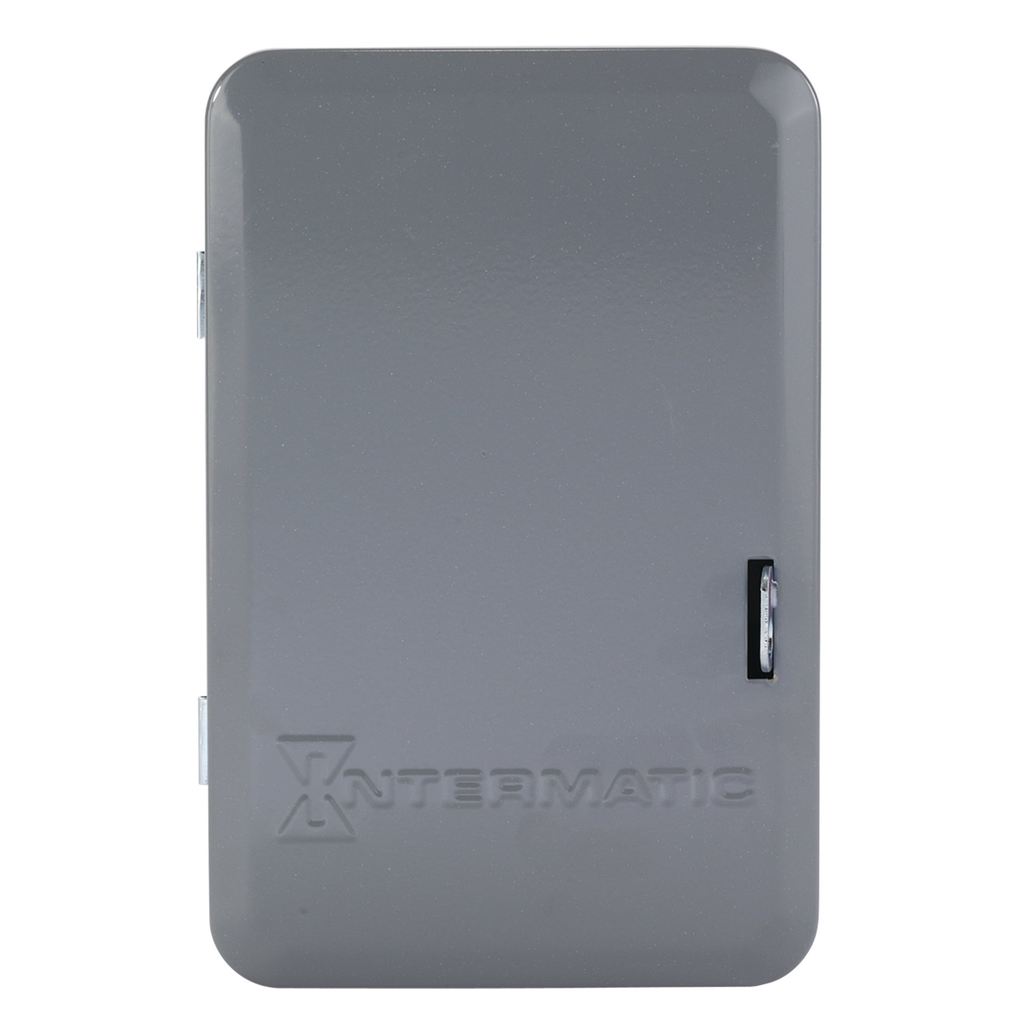

Intermatic T173 NEMA 1 125 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch

Manufacturer: Intermatic, Inc | Catalog # T173 | Cooper Electric Part # 14799
$207.58 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Technical Information

Action
DPST
Amperage
40 Amp
Applications
Commercial, Industrial, Residential, Outdoor, HVACR
Contact Configuration
2 NO
Contact Rating
40 A at 120 - 480 VAC (Resistive), 40 A at 120/240/277 VAC (Tungsten, Inductive)
Enclosure
NEMA 1
Enclosure Type
NEMA 1
Frequency
60 Hz
Input Voltage
120 V
Material
Metal
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Configuration
Wall mount
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
2 hp at 120 VAC, 5 hp at 240 VAC
Switch Type
DPST
Temperature Rating
130 degrees F
Type
Mechanical
Voltage
125 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275173019
Color
Gray
Environmental Conditions
Indoor
GTiN
00078275173019
Product Category
Medical/Dental/Veterinary - Timers
Product Type
Medical/Dental/Veterinary - Timers
Product UPC
07827517301
Used With
Lighting, signs

Dimensions

Depth
3.437 Inch
Height
7-7/8 Inch
Warranty Length
1 yr
Width
5.125 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Controls loads up to 40 A per pole
  • Direct 24-hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included
  • NA
