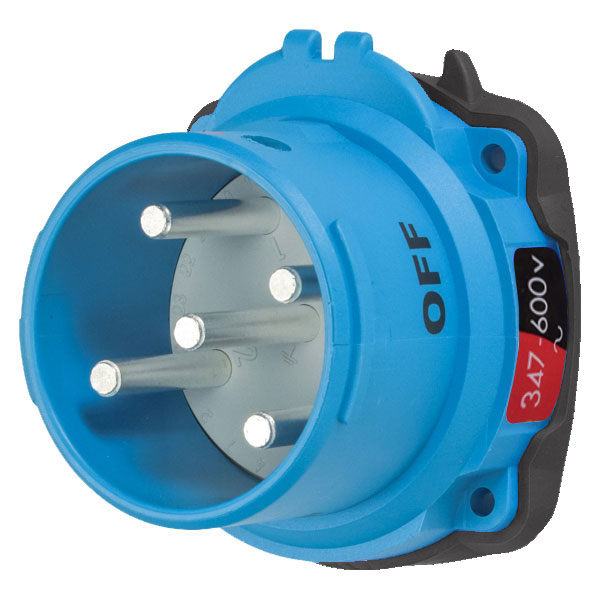

Product image for Meltric 63-38147 DSN30 Inlet, Poly, Blue, Size 2, Type 4X & IP69, 3P+N+G, 30A, 347/600 VAC, 60 Hz
Email

Meltric 63-38147 DSN30 Inlet, Poly, Blue, Size 2, Type 4X & IP69, 3P+N+G, 30A, 347/600 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 63-38147 | Cooper Electric Part # 1478281
$174.35/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Meltric 63-38147 Inlet, Enclosure NEMA 4X, IP66/IP67, Wiring Capacity 14 To 8 AWG, Horsepower Rating 15 HP At 600 V 3 Phase, Polarity 3 Pole, Neutral, Ground, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Size: 2.64 DIA X 1.97IN, Amperage Ratin

Technical Information

Amperage
30 Amp
Contact Configuration
3P+N+G
Current
30 Amp
Frequency
60 Hz
Horsepower
15 hp
IP Rating
66,67,69
Material
Polyester
Max Operating Temperature
140 degrees F
Short Circuit Current Ratng
125 A
Size
2
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Strip Length
3/4 in
Temperature Rating
-40 to 140 degrees F
Type
Single
Voltage
347 Volt

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474569514
Color
Blue
GTiN
00784474569514
Product Series
11
Product UPC
78447456951

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
