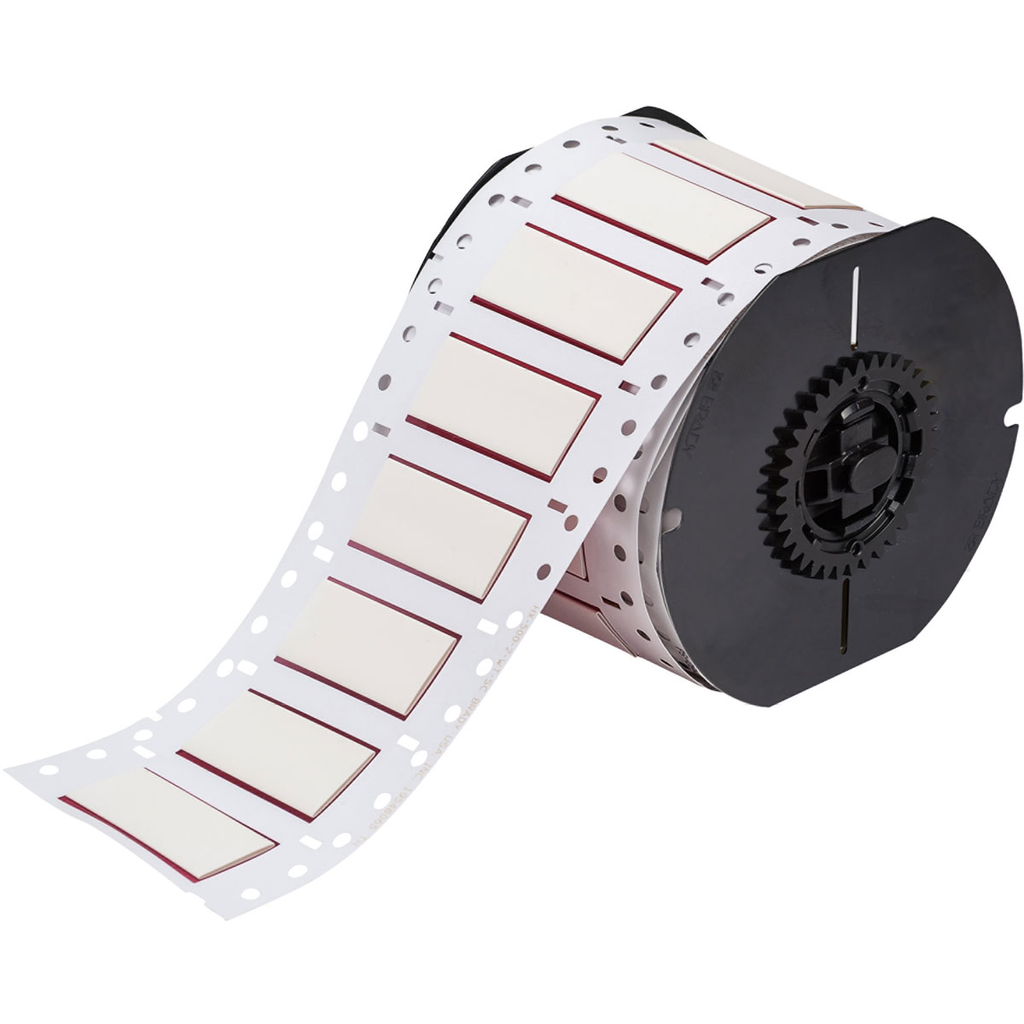

Product image for Brady B33-500-2-7642 B33 Series PermaSleeve HX Heat Shrink Wire Marking Sleeves, 0.5" Dia x 2" W, White, Roll of 225
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Brady B33-500-2-7642 B33 Series PermaSleeve HX Heat Shrink Wire Marking Sleeves, 0.5" Dia x 2" W, White, Roll of 225

Manufacturer: Brady Worldwide, Inc. | Catalog # B33-500-2-7642 | Cooper Electric Part # 1476381
$418.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.

Technical Information

Applications
Cable & Wire Marking
Conductor Size
6-1 AWG
Material
Polyolefin
Max Temperature
120 degrees C
Min Temperature
-40 degrees C
Shrink Ratio
2:1
Type
Heat Shrink Tubing
Wire Size
0.25-0.45 in

Manufacturer Information

Brand
Brady Corporation
Sub Brand
BBP®33 Series

General Product Info

12-Digit UPC
662820967422
Color
White
Finish
Matte
GTiN
00662820967422
Product UPC
66282096742

Dimensions

Diameter
1/2 Inch
Height
0.851 Inch
Roll Width
2 in
Width
50.80 mm

Certifications and Compliance

CA Prop65 Warning
Y
Features
  • Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
  • Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
  • Tested per ASTM E162 and ASTM E662
  • Operating temperature of -40°F to 248°F (-40°C to 120°C)
