LEV T5635-W DECORA TYPE CC USB 15A

Manufacturer: Leviton Mfg Co | Catalog # T5635-W | Cooper Electric Part # 1476216
$49.99/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
6 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Brochure

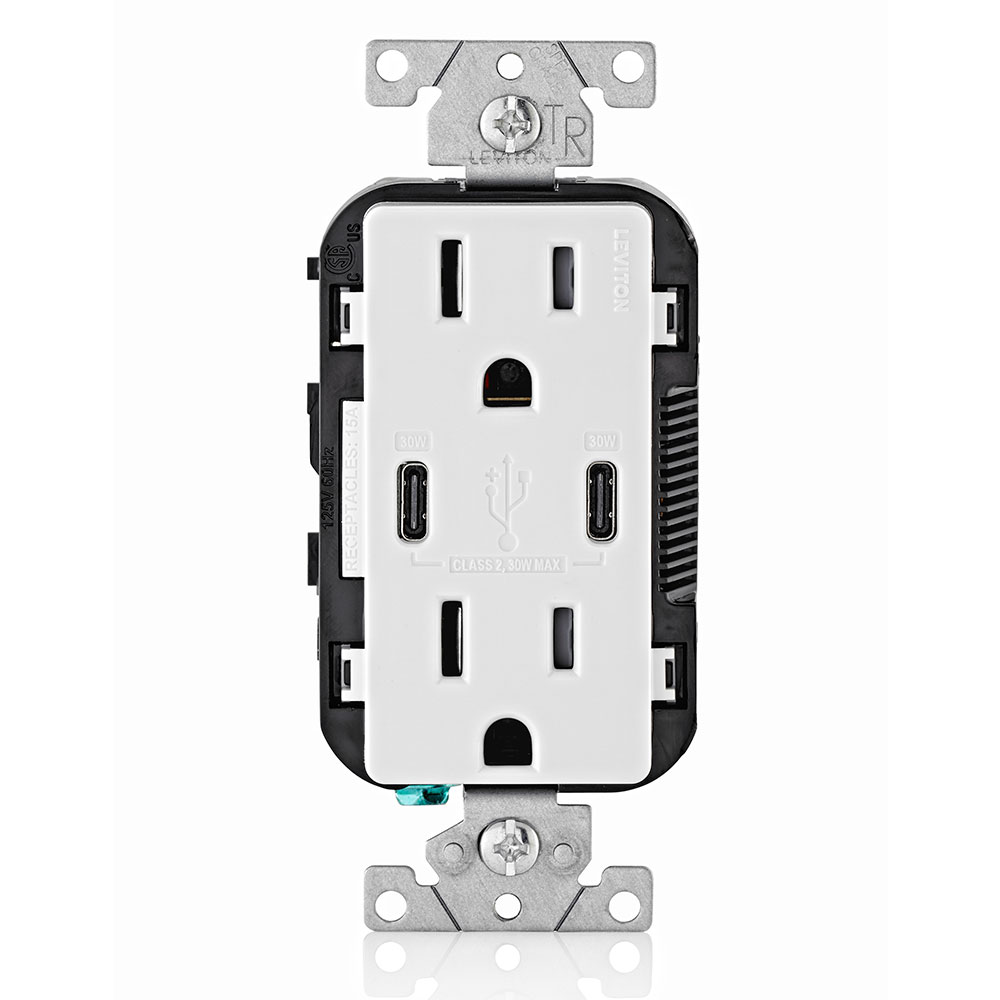

15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 30W (6 Amps), Dual Type-C/C Power Delivery USB Chargers, Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
15 Amp
Applications
For Residential and Commercial Applications Including Kitchens, Bedrooms
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Mounting Type
Wall
NEMA
5-15R
Operating Temperature
40 degrees C
Outlet Type
Tamper Resistant
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
USB Combo, Type C
Voltage
125 VAC

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477979105
Color
White
GTiN
00078477979105
Product Type
Outlet/USB Combo
Product UPC
07847797910

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2869845
  • MX338817
  • US7355117
  • US7820909
  • US7868719
  • US8242362
  • US8944859
  • US9368982
  • US9496726
  • US9543667
Features
  • Up to 30W charge when PD-enabled device connected to single port. Up to 15W charge per port (30W total) when both USB ports are connected to devices. Examples of maximum charging outputs are:
  • Single port connected to PD-enabled device: 15VDC@2A (30W) or 9VDC@3A (27W)
  • Single port connected to non-PD device: 5VDC@3A (15W)
  • Both ports connected to devices (PD or non-PD): 5VDC@3A each (up to 30W total)
  • Charges most Type-C devices as well as Type A devices (adapter required)
  • Shallowest profile on the market for ease of installation
  • Smart chip recognizes and optimizes the charging requirements of individual devices
  • Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
  • Internal thermo regulator prevents the electronics from overheating
  • USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
  • Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
  • Type-C USB Ports enable cables to be inserted in either direction
  • Tamper-Resistant improves child safety built-in shutter prevents access by most non-rated/foreign objects
  • Charging time may be affected by the charge cord used. Leviton recommends using the cord provided with the device

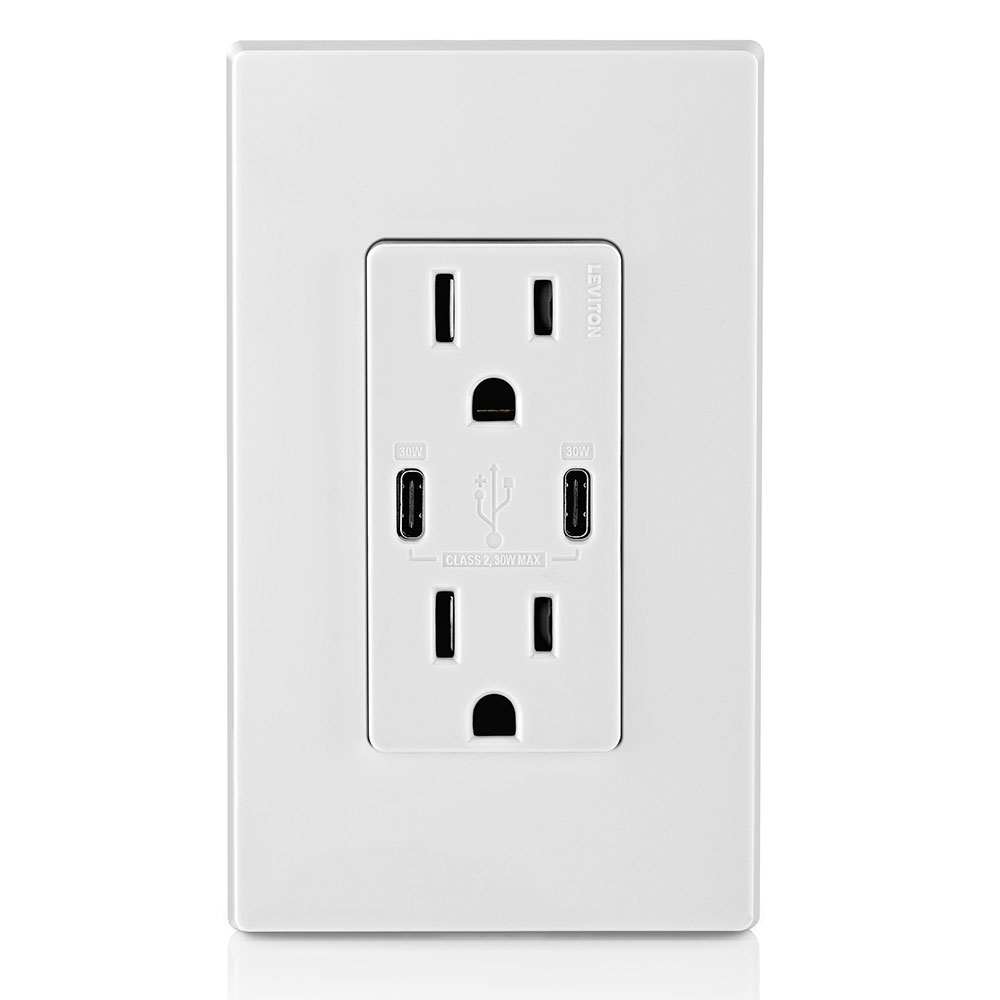

  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates
  • Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
  • Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
  • No data transfer capability

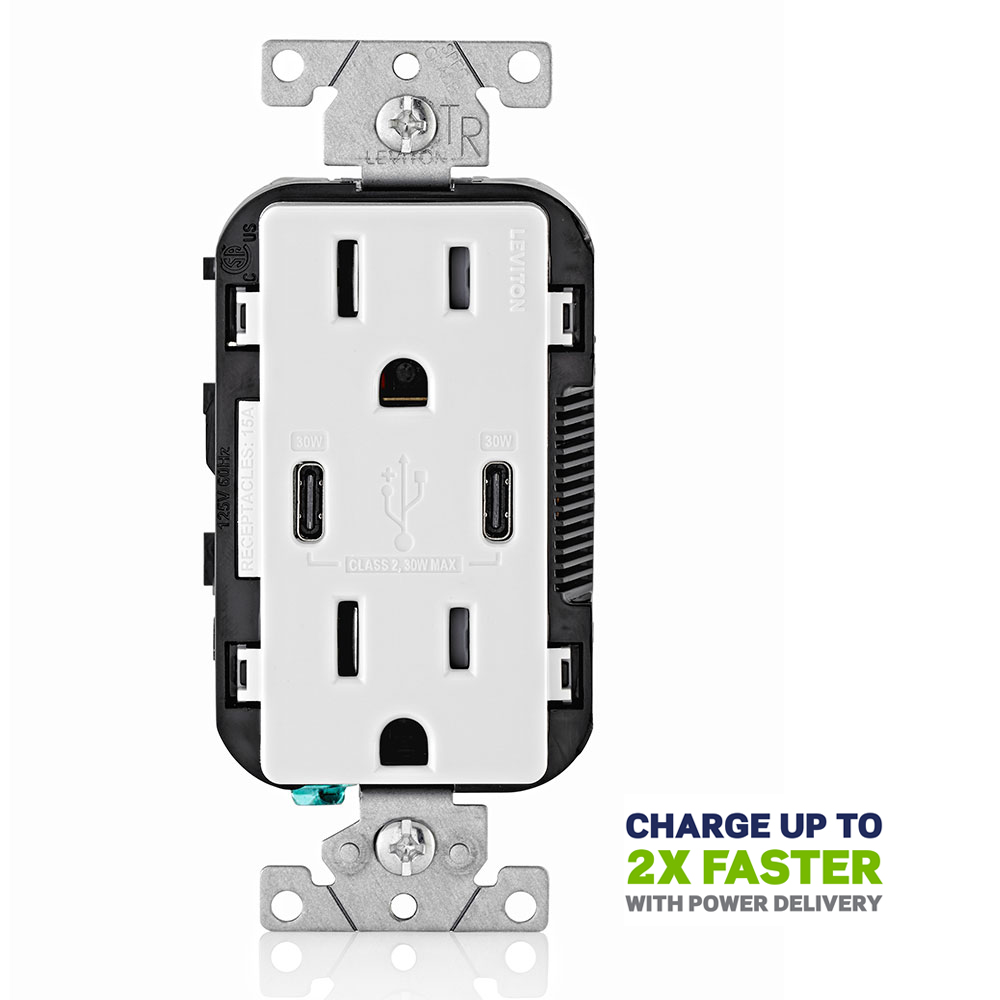

  • POWERFUL 30W charge on a single port. Up to 2x the charging power with PD-enabled devices
  • INNOVATIVE USB Type-C or USB-C provides faster charging and is emerging as the standard port on many phones, tablets and laptops
  • ENHANCED SAFETY Overcurrent protection helps protect electronic devices from over charging/heating and tamper-resistant outlets prevent unwanted objects from being inserted into the outlets
  • FAST CHARGING Smart chip ensures each device gets the power level it needs to charge fast and efficiently
Color Variations
  • Brown
NEMA
  • 5-15R
