SQD TDR782XBXA-24D Time delay relay

Manufacturer: Square-D / Schneider | Catalog # TDR782XBXA24D | Cooper Electric Part # 1475027
$186.29/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

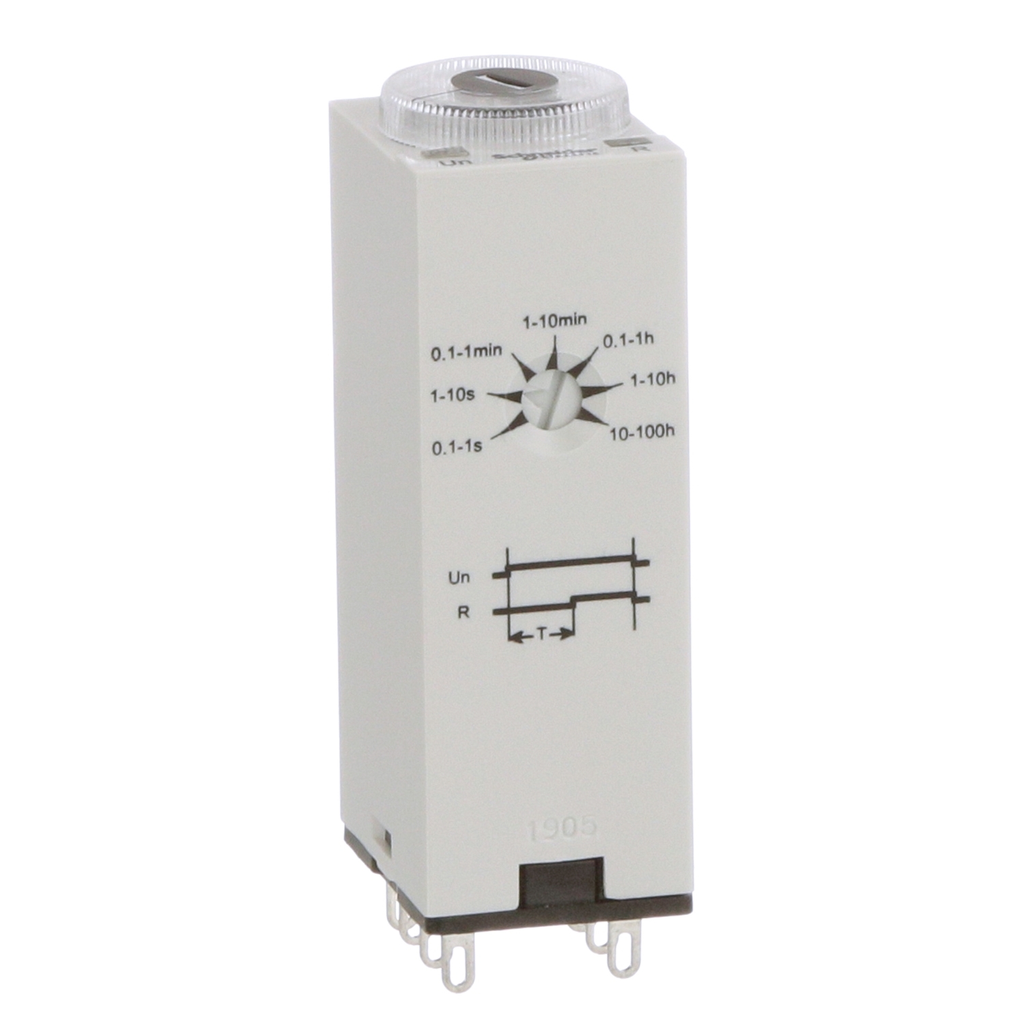

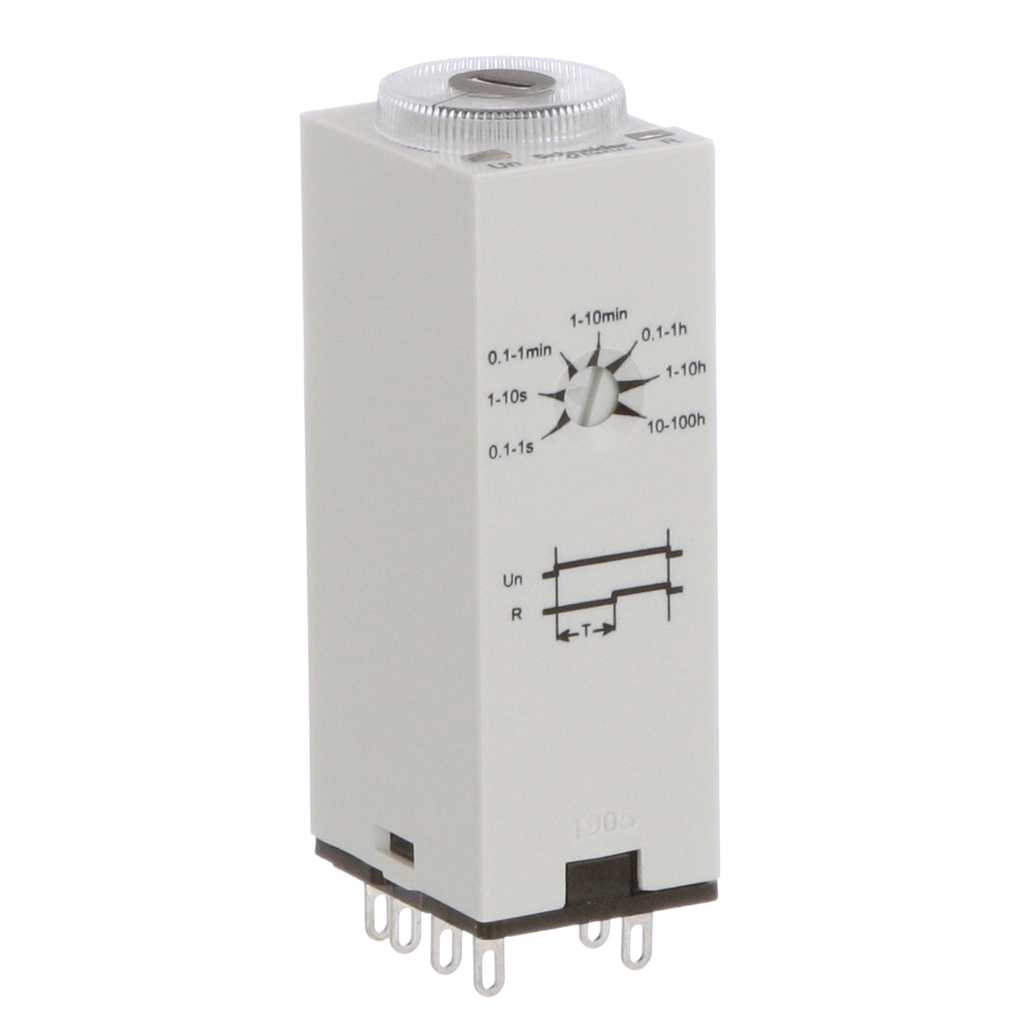

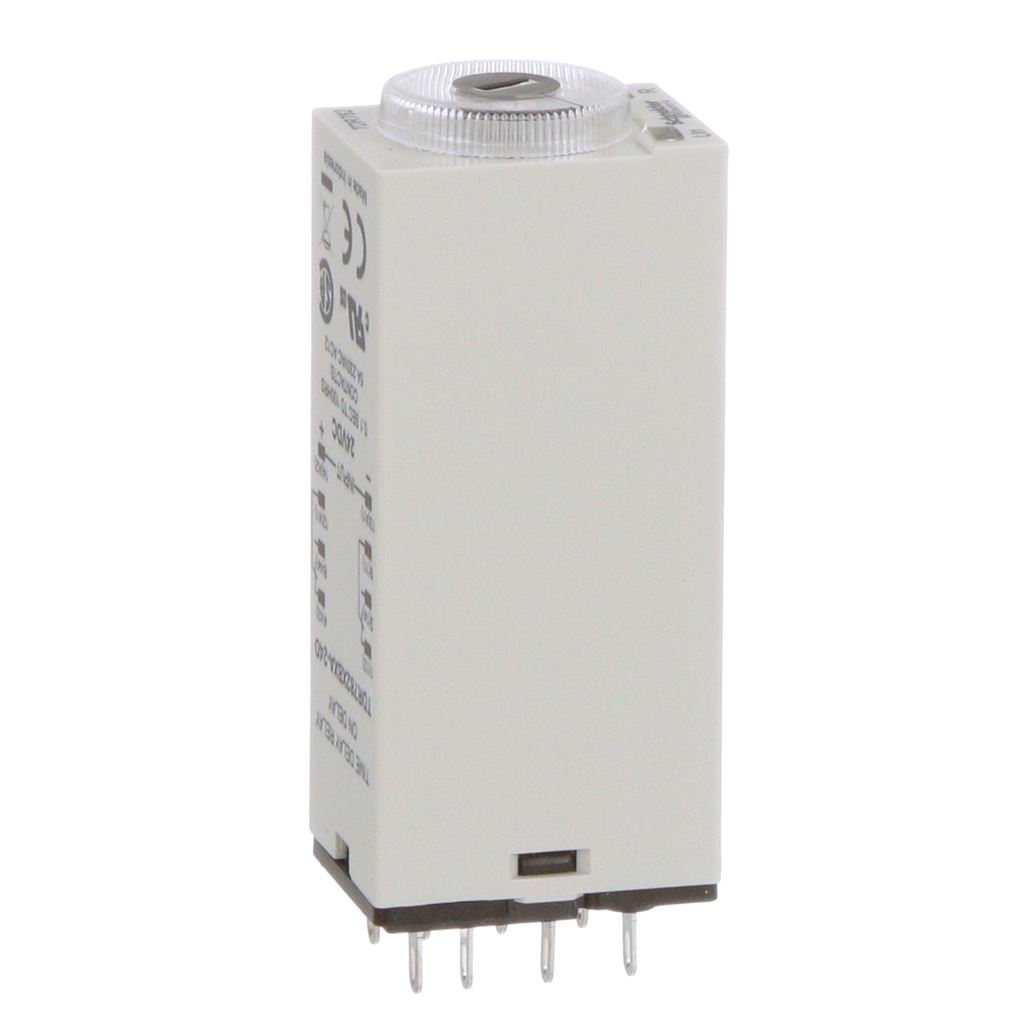

The SE Relays TDR782 series, miniature time delay relay offers 7 different time ranges with ultra-wide timing range of 0.1 ms to 100 hr with time adjustment dial for fine tune of time settings. Input voltage of 24VDC with contact ratings of 5A makes this single-function, single-voltage relay ideal for specific applications. Contact configaration is performed by silver alloy contacts as DPDT. Socket compatible mounting option allows to set relay directly to 35-mm DIN-rail or panel and makes it ideal for tight spaces and allows easy installation. 2 LED status indicators shows input indication in green LED and output indication in amber steady on LED light as energized relay status. IEC and NEMA terminal numbering allows numbering compatibility.

Technical Information

Contact Material
Silver Alloy
Dielectric Strength
2000 V
Net Weight
50 g
Operating Temperature
-4140 degrees F (-2060 degrees C)
Standard
IEC 61810-1
Storage Temperature
-40-70 degrees C

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
785901148562
GTiN
03606480283000
Product UPC
78590114856
Weight
50 g

Dimensions

Depth
27 mm
Height
59.4 mm
Width
21 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,CURus
Country of Origin
Indonesia
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
