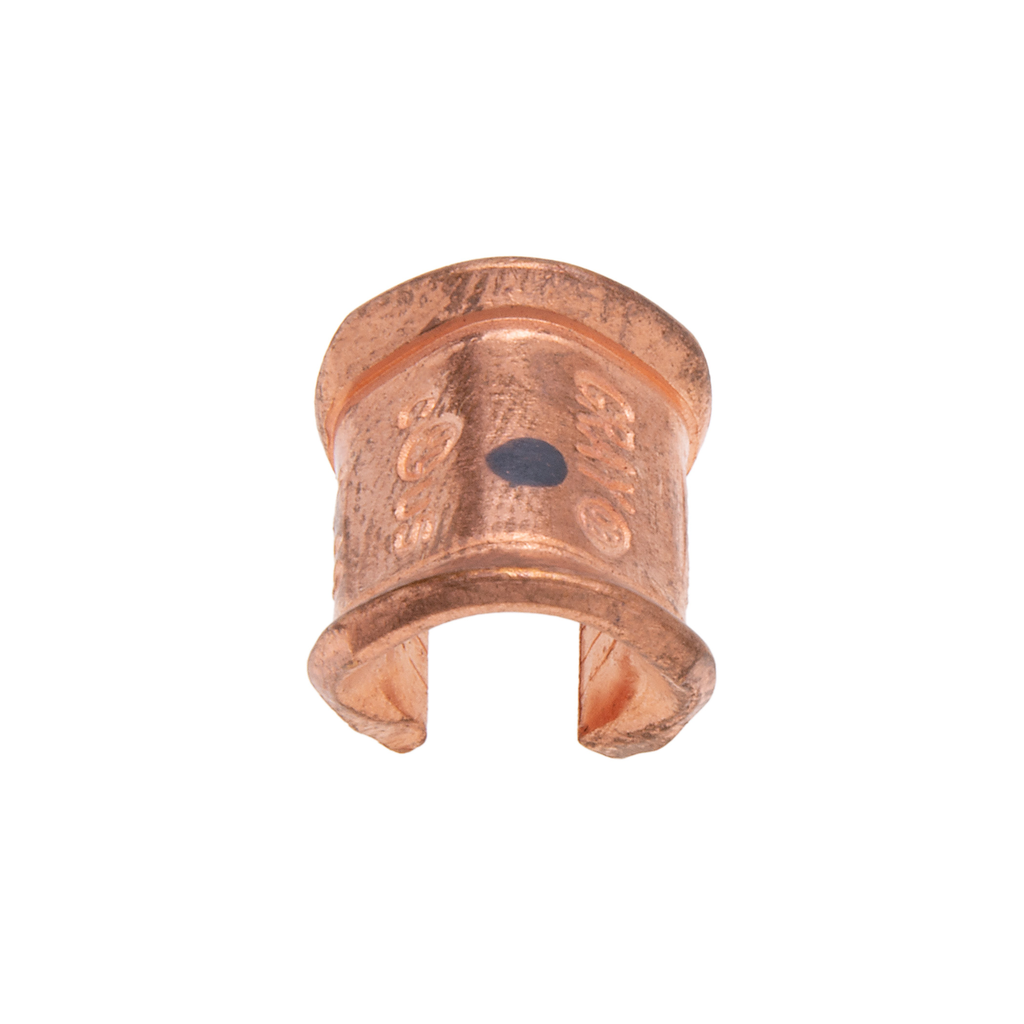

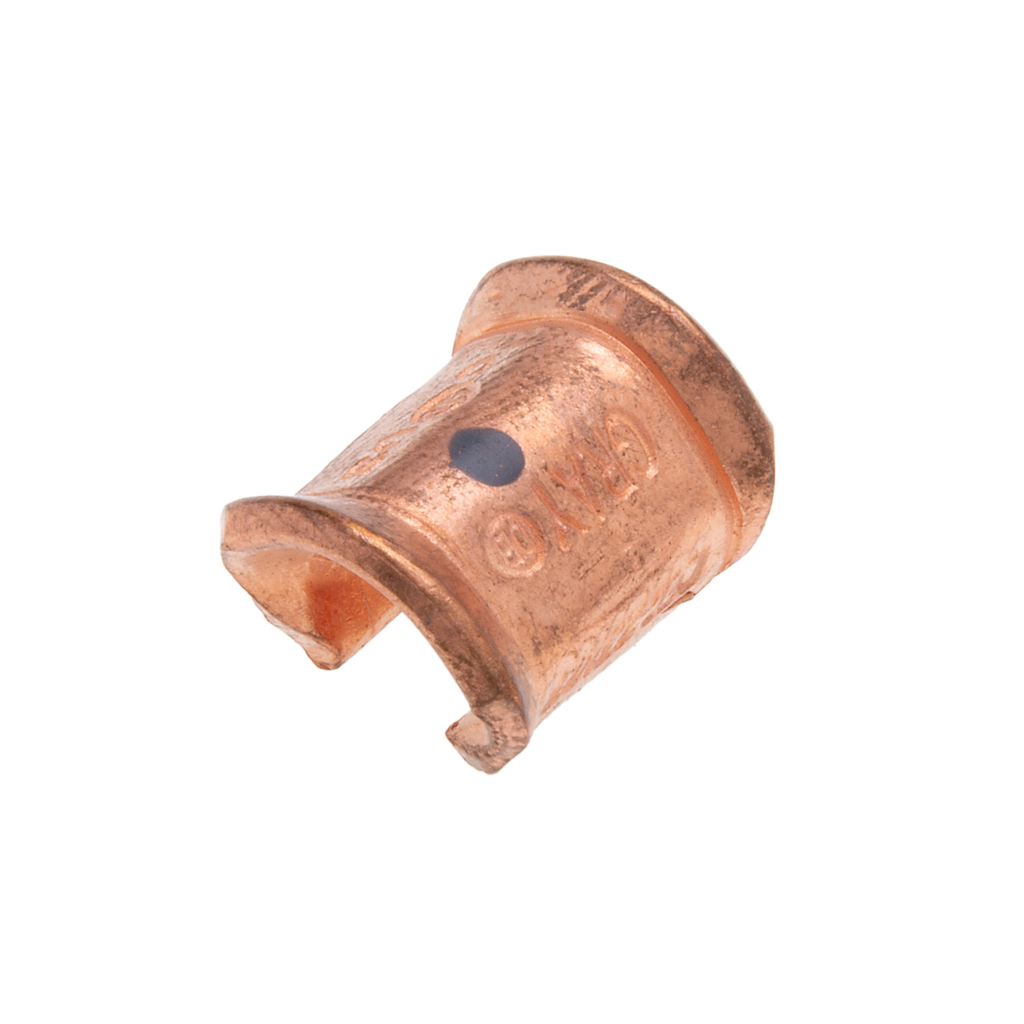

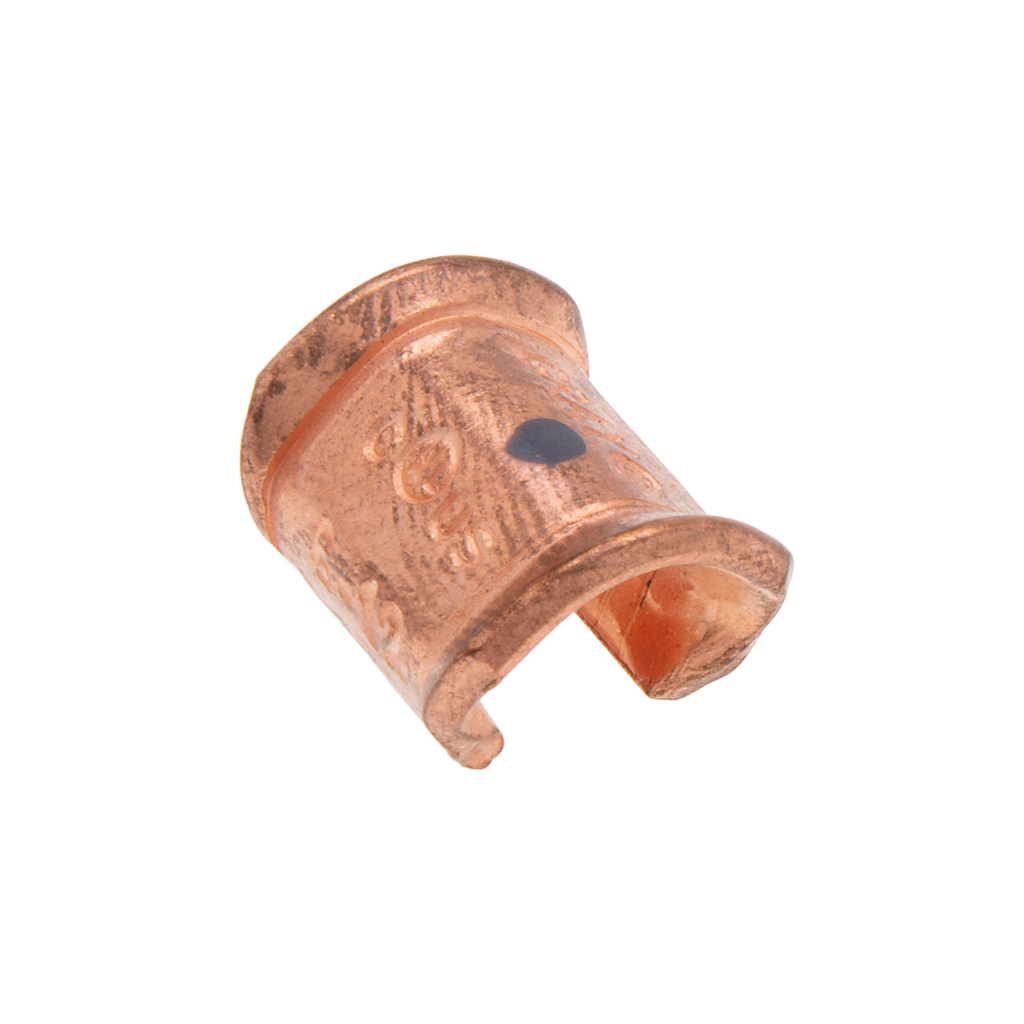

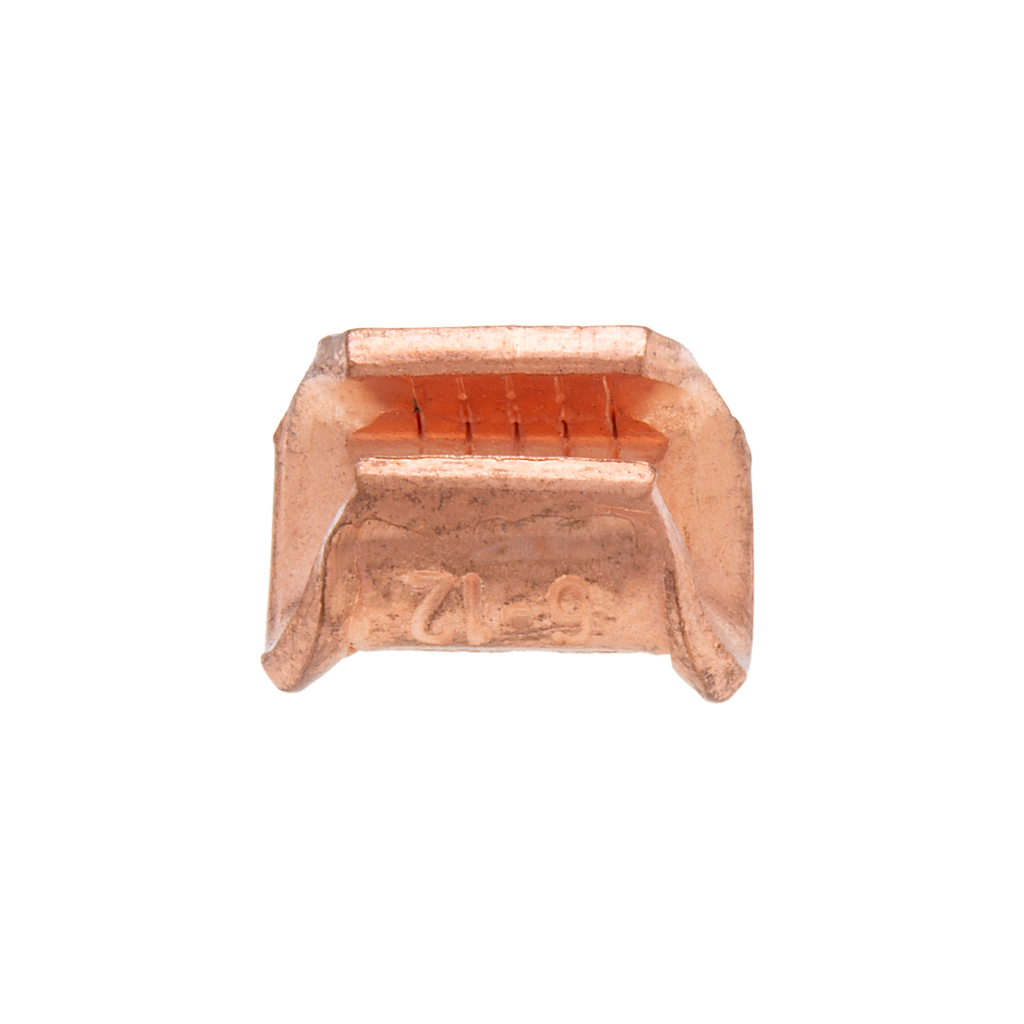

NSI CT-103 8 to 6 AWG Main Gray Copper Compression C-Tap Connector

Manufacturer: NSi | Catalog # CT-103 | Cooper Electric Part # 14697
$1,267.42/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Copper C Tap Grounding Connector for 6 to 8 AWG Copper "C" Taps ensure positive, all around compression with low-resistance and high pull-out values. Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
6 AWG
Material
Copper
Size
6-12 AWG
Standard
UL486
Tap Size
12 AWG
Temperature Rating
90 degrees C
Type
C-Taps
Voltage
600 Volt

Manufacturer Information

Brand
NSI Industries
Sub Brand
Copper Compression

General Product Info

12-Digit UPC
662381098023
Color
Gray
Environmental Conditions
90 degrees C
Finish
Copper
GTiN
00662381098023
Product UPC
66238109802

Dimensions

Length
15.5 mm
Warranty Length
1 yr
Width
11.75 mm

Certifications and Compliance

Country of Origin
India
Features
  • These taps ensure positive, all-around compression with low resistance and high pull-out values
  • Made of high conductivity copper, they satisfy the requirements of NEC250-81 and 250-91 for connecting to the grounding electrode system
  • Rated for 600V applications
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A, UL 467
Additional Notes
  • FOR TOOL/DIE CRIMPING INFORMATION, PLEASE SEE TABLE ON PAGE 88
