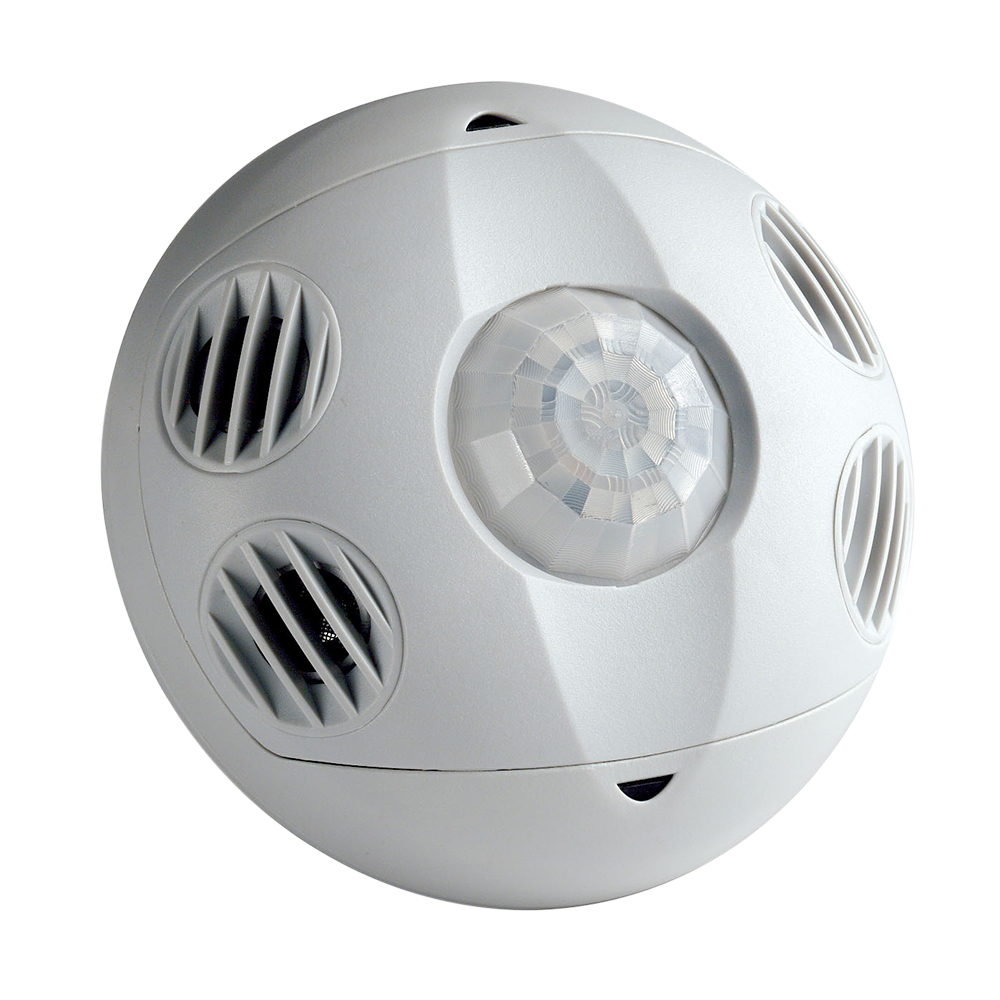

Product image for LEV OSC20-MWW WH OCC SENS 24V MLTIT
Email

LEV OSC20-MWW WH OCC SENS 24V MLTIT

Manufacturer: Leviton Mfg Co | Catalog # OSC20-MWW | Cooper Electric Part # 1469255
$215.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 30mA power consumption, 2000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S:64'Lx32'W, minor motion: U/S: 45'Lx23'W), red LED=PIR, green LED=U/S auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant. Color: true-white

Technical Information

Coverage
2000 sq-ft
Frequency
32 kHz
Grade
Commercial
Mounting Type
Ceiling
Operating Temperature
40 degrees C
Sensor Type
Ceiling Mount
Size
4.2 in
Type
OCCUPANCY SENSOR
Voltage
24 VDC

Manufacturer Information

Brand
Leviton
Sub Brand
OCC SENSORS LOW VOLTAGE

General Product Info

12-Digit UPC
078477901076
Color
White
GTiN
00078477901076
Product UPC
07847790107

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Self-adjusting: internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time delay. Performance is kept at a maximum and user complaints are eliminated.
  • Fast, simple installation: easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment for 360° rotation and flexibility
  • Maximum reliability, low cost: digital circuitry uses a minimum of components
  • Small motion sensitivity: the ultrasonic technology provides excellent small motion sensitivity
  • Wide coverage: units from 500 to 2000 sq. ft.
  • Rugged, high-impact, injection molded plastic device, custom true white color to meet true white applications
  • Applications: cafeterias, conference rooms, day care centers, workspaces, offices with cubicles
  • Occupancy Sensor , Ceiling Mounted, Multi-technology, Lighting Control , 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion: PIR:20' radius; U/S: 23'Lx23'W, minor motion: U/S: 17'Lx17'W), red LED=PIR, green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM listed, CEC Title 24 compliant. Color: true-white. Do you have a question about an occupancy sensor or vacancy sensor?
Color Variations
  • White
