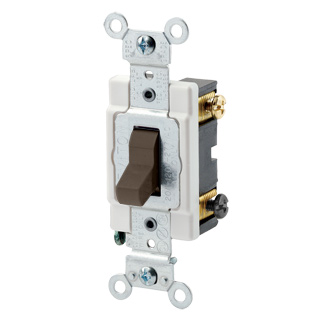

Product image for Leviton CSB3-20 120/277 VAC 20 Amp 2 Hp 3-Way Brown Thermoplastic Grounding Toggle Quiet Switch
Email

Leviton CSB3-20 120/277 VAC 20 Amp 2 Hp 3-Way Brown Thermoplastic Grounding Toggle Quiet Switch

Manufacturer: Leviton Mfg Co | Catalog # CSB3-20 | Cooper Electric Part # 146847
$21.34/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 120/277 Volt, Toggle 3-Way AC Quiet Switch, Commercial Spec Grade, Grounding, Back & Side Wired, - Brown

Technical Information

Actuator
Toggle
Amperage
16 Amp
Applications
Commercial
Base Material
PBT
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Material
Silver-Cadmium
Cover Material
Nylon
Device Type
Toggle Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL94
Grade
Commercial Specification
Horsepower
1 hp
Material
Thermoplastic, Nylon Cover, PBT Base, Polycarbonate Toggle, Silver-Cadmium Contact
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 to 120 degrees C
Size
46 H x 1.31 W x 1.47 D IN
Standard
CSA,UL
TC Connection
Back Wired;Side Wired
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Polycarbonate
Torque
12 lb-in
Type
3-Way
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Comm Switches

General Product Info

12-Digit UPC
078477240168
Color
Brown
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477240168
Product UPC
07847724016

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Color Variations
  • Gray
