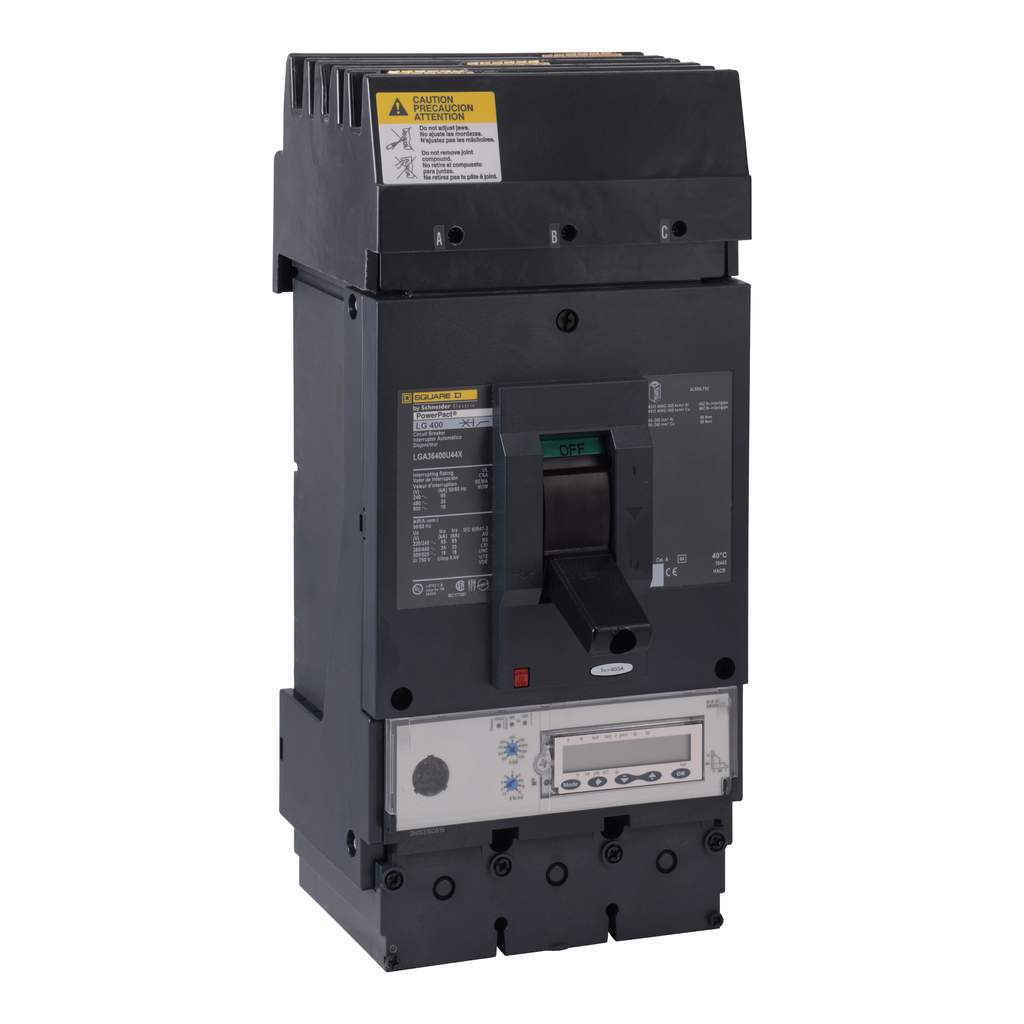

Product image for SQD LGA36400CU44X Circuit breaker,
Email

SQD LGA36400CU44X Circuit breaker,

Manufacturer: Square-D / Schneider | Catalog # LGA36400CU44X | Cooper Electric Part # 1467075
$4,843.67/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 6.3A, 100%, ABC

Technical Information

Amperage
400 Amp
Conductor Size
2/0 AWG-500 kcmil
Control Type
Toggle
Frame
G
Interrupt Rating
18, 35, 65 kAIC
Line Rated Current
400-400 A
Mounting Type
I-Line Bracket)
Net Weight
6.2 kg
Number of Poles
3 Pole
Range
PowerPact
Standard
CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
Storage Temperature
-50-85 degrees C
Strip Length
31 mm
TC Connection
AWG 2/0...500 KCMIL ALUMINIUM/COPPER)2,I-LINE CONNECTION LINE-LUGS LOAD
Terminal Type
AL600LS52K3
Trip Range
400 A
Trip Type
ELECTRONIC, AMMETER, MICROLOGIC 6.3 A, LSIG
Type
CIRCUIT BREAKER,CURRENT LIMITER
Voltage
600 Volt
Wire Size
AWG 2/0...500 kcmil aluminium/copper)2

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901727002
Color
Black
GTiN
00785901727002
Product UPC
78590172700

Dimensions

Depth
110 mm
Height
340 mm
Length
6.61 Inch
Warranty Length
18 mth
Width
140 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,NOM,UL
Country of Origin
USA
