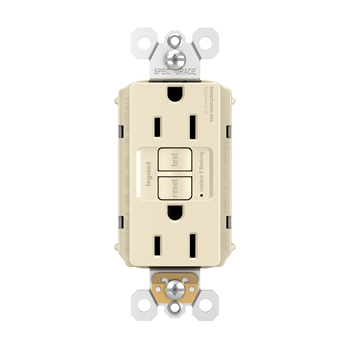

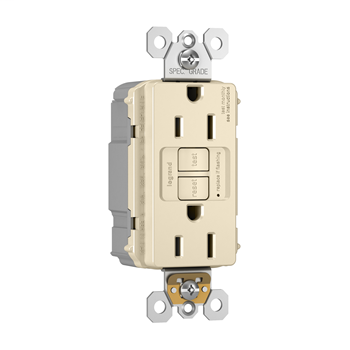

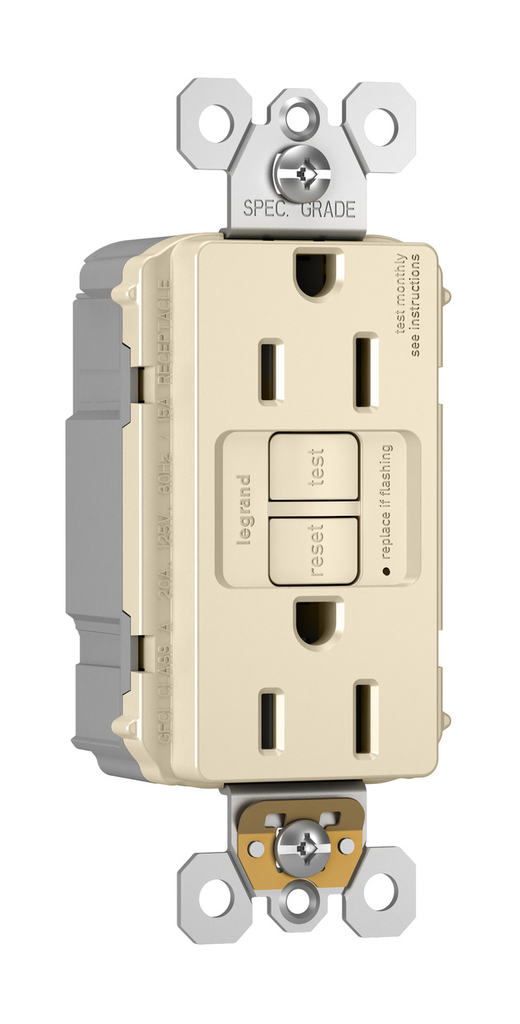

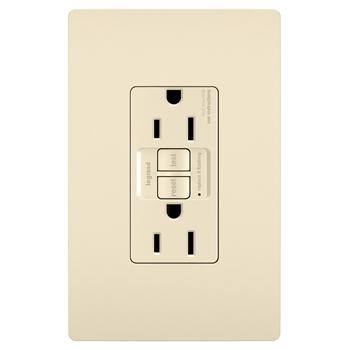

P&S PT1597NALA SELF-TEST PT GFCI RC

Manufacturer: Pass & Seymour / Legrand | Catalog # PT1597NALA | Cooper Electric Part # 1466510
$43.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Brochure
The fastest-installing GFCI ever now conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. For detailed PlugTail® information, visit our PlugTail Headquarters.For detailed GFCI receptacle information, visit our GFCI Headquarters.

Technical Information

Actuator
Control Circuit
Amperage
15 Amp
Applications
Commercial/Residential
Material
Thermoplatic
NEMA
5-15R
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
TC Connection
Built-in Connector
Trip Range
4 to 6 mA
Trip Type
.025 Second Nominal
Type
NAFTA-Compliant PLUGTAIL® Specification Grade 15A Self-Test Duplex GFCI
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007050080
Color
Light Almond
Environmental Conditions
95 PCT
GTiN
00785007050080
Product UPC
78500705008

Dimensions

Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • NAFTA-Compliant GFCI Receptacles are ideal for use on projects subject to the provisions of the Buy American Act.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects (Tamper-Resistant models).
  • Meets National Electrical Code® Tamper-Resistant requirements (Tamper-Resistant models) .
  • Faster, more reliable installation .
  • No exposed terminals create a finger-safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections to PlugTail® Connector.
  • GFCI works with existing 3-wire PlugTail Connectors creating a non-feed-thru application for facility owners.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
  • Auto-Ground clip assures a positive ground to metal box.
  • Meets 2015 UL requirements.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • FSUL Listed (Federal Specification WC596).
  • Trip indicator light (red LED).
  • 10kA short circuit rating.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • High-impact-resistant thermoplastic construction.
  • Zinc-plated steel mounting strap.
  • Button colors match the device face.
  • Dual-direction test and reset buttons.
  • Class A rated GFCI.
  • Supplied with matching TP wall plate.
  • Tri-drive screws.
  • Supply Voltage: 125VAC, 60 Hz
  • Supply Voltage Range: 102-132 VAC
  • Trip Threshold: 5 +/- 1 mA.
  • Trip Time: 0.025 sec., nominal per UL Standard
