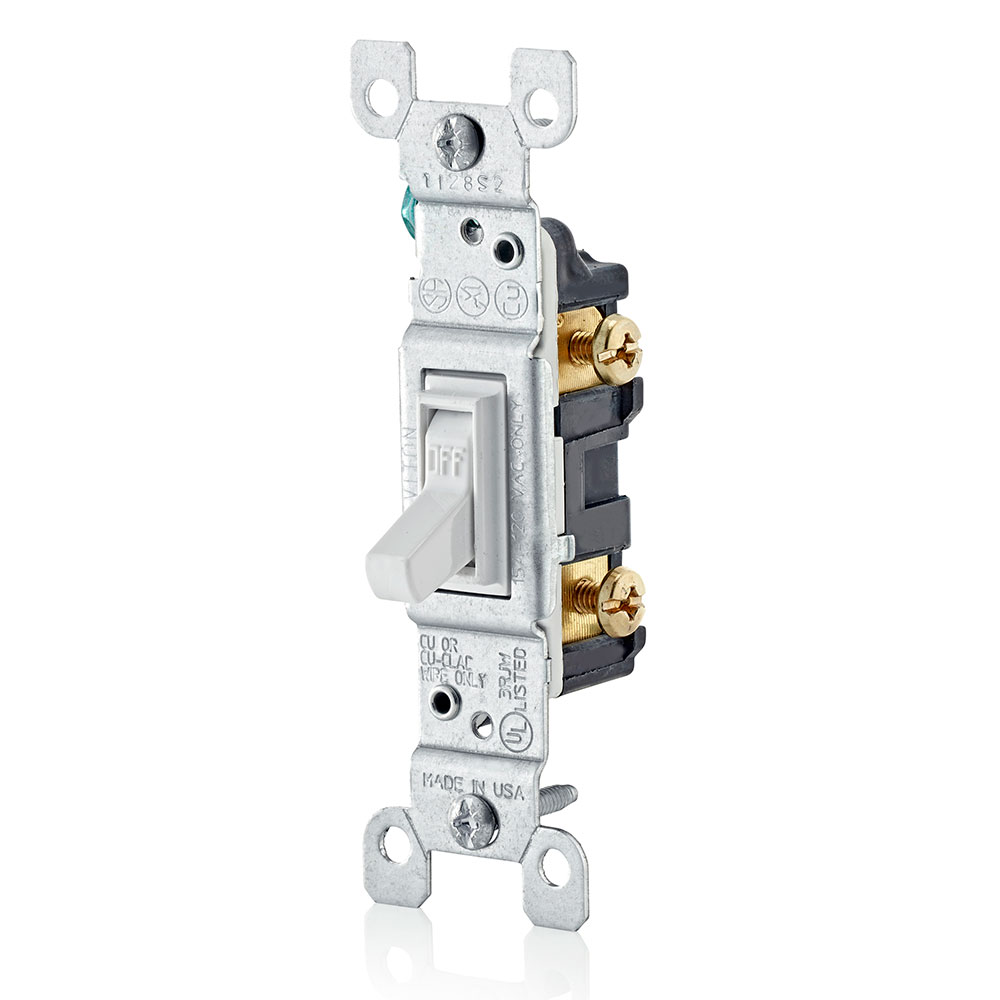

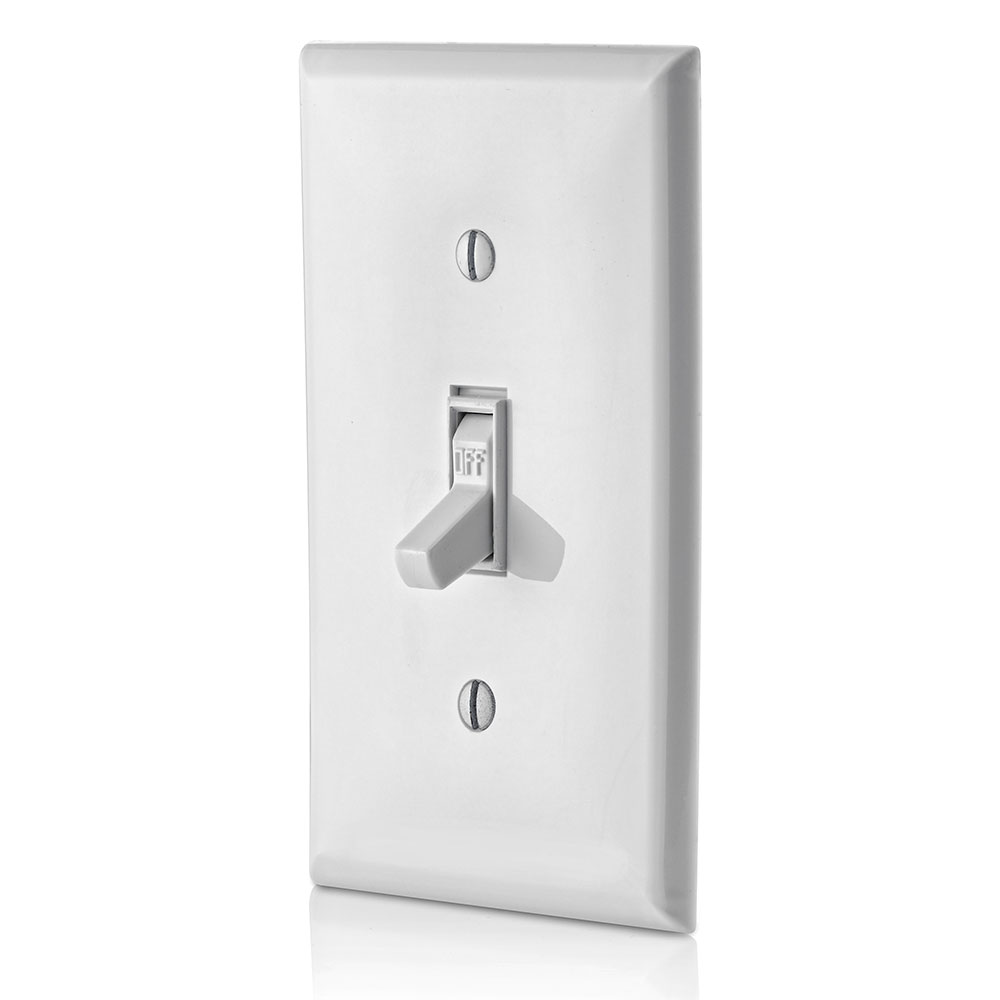

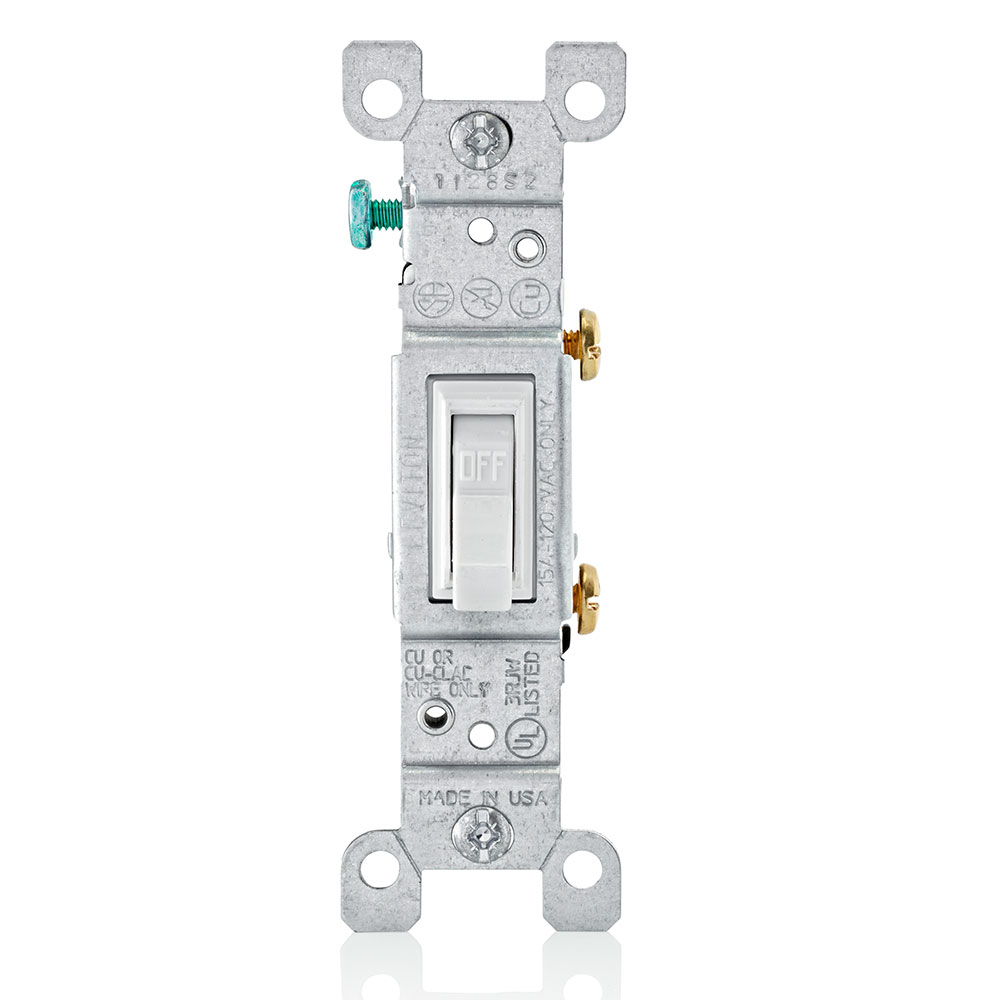

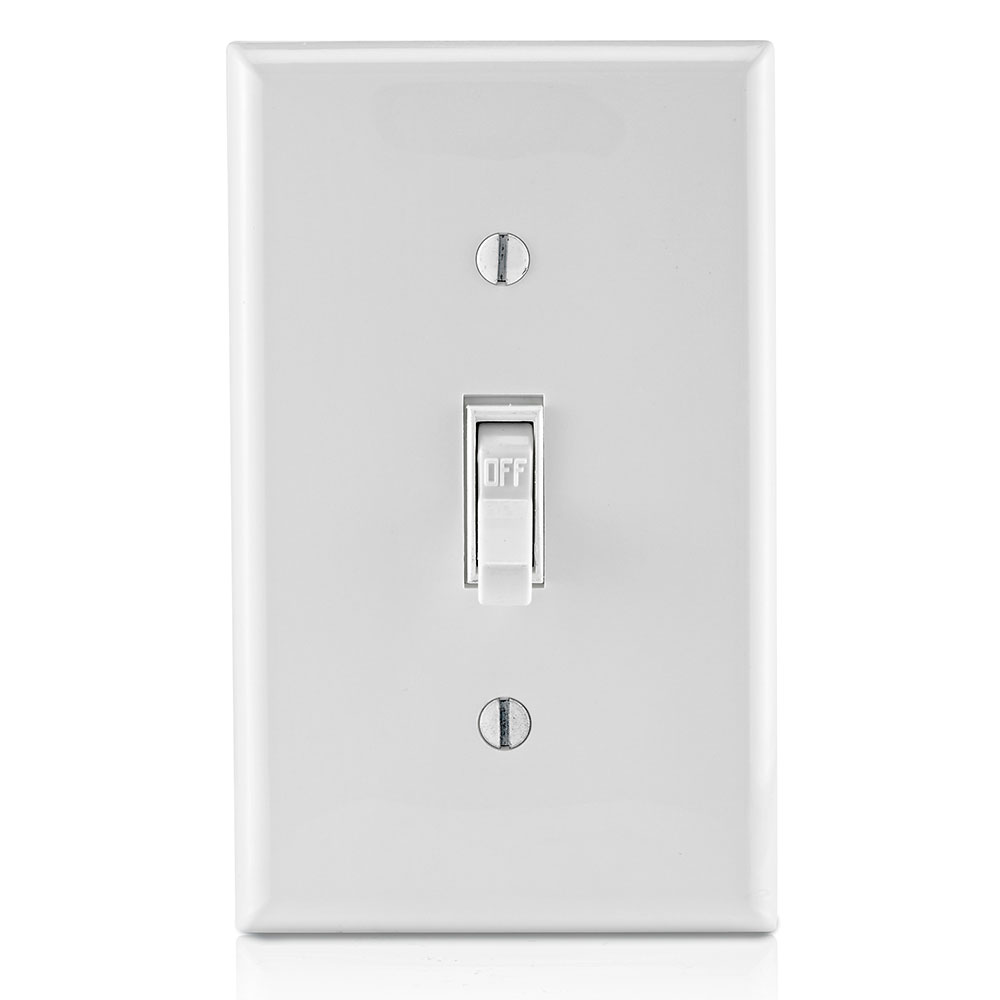

Leviton 1451-2W Single Pole Toggle Switch

Manufacturer: Leviton Mfg Co | Catalog # 1451-2W | Cooper Electric Part # 14659
$3.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 120 Volt, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade, Grounding, White

Technical Information

Action
Off
Actuator
Cam, Toggle
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Push-In And Side Wired
Contact Rating
120 V
Grade
Commercial
Grounding
Grounding
Horsepower
1/2 hp
Insulation Material
Thermoplastic
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1 Pole
Operating Temperature
-40 To 65 degrees C
Size
4.20 H x 1.31 W x 11 D IN
Standard
CSA,UL
TC Connection
Push-In and Side Wired
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
AC Quiet
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL SWITCHES

General Product Info

12-Digit UPC
078477778203
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477778203
Product UPC
07847777820

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Faster installation with combination of side wiring and Quickwire push-in wiring
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
  • Impact-resistant, durable thermoplastic toggle and frame
  • Backed by a Limited Two-Year Warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
  • Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Levitons traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
