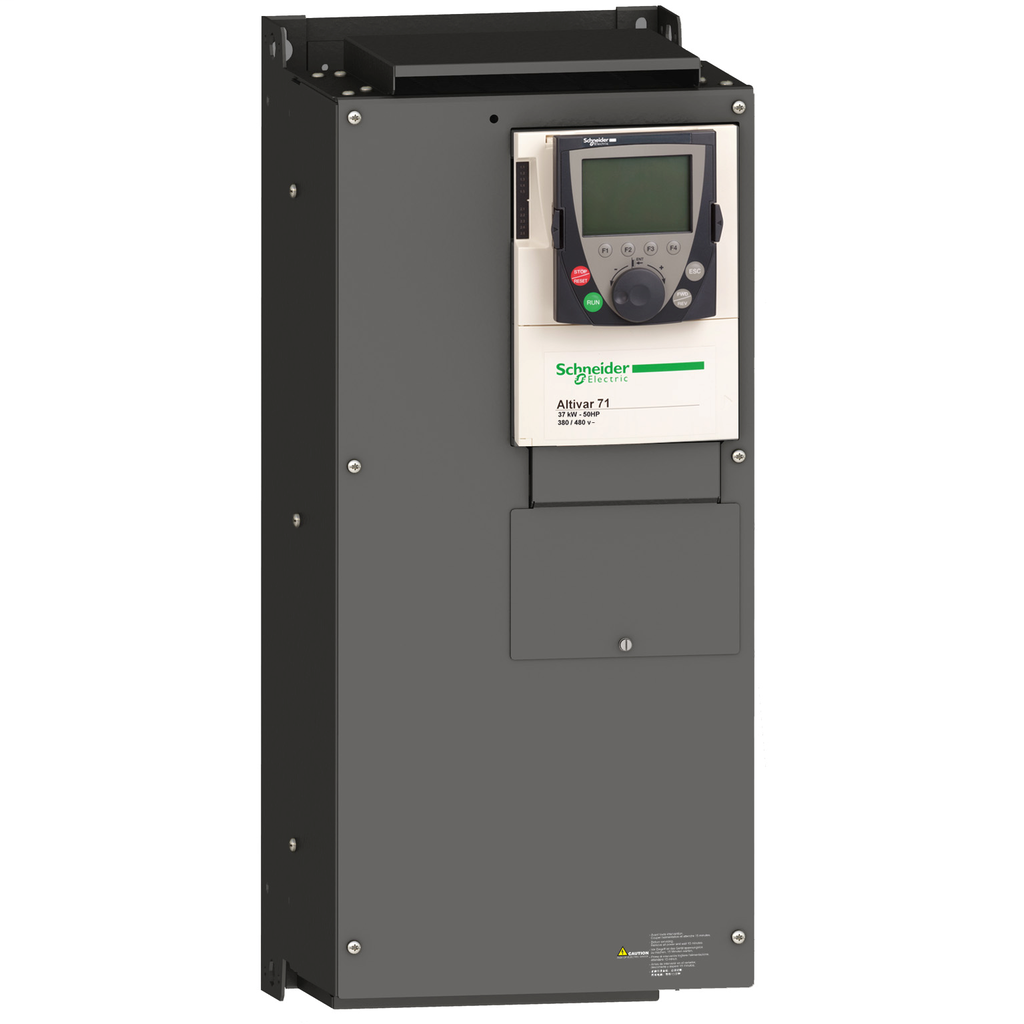

Product image for SQUARED ATV71HD55M3X variable speed
Image thumbnail 0
Image thumbnail 1
Email

SQUARED ATV71HD55M3X variable speed

Manufacturer: Square-D / Schneider | Catalog # ATV71HD55M3X | Cooper Electric Part # 1465797
$10,200.50/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
variable speed drive ATV71 - 55kW-75HP - 240V - w/o EMC filter-graphic terminal

Technical Information

Applications
CONSTANT TORQUE
Enclosure
IP20
Number of Phases
3 Phase
Output
3-PHASE
Size
FRAME 9
Standard
IEC 60721-3-3 Class 3C2,UL Type 1
TC Connection
AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR TERMINAL 2.5 MMA / AWG 14L1/R, L2/S, L3/T, U/T1, V/T2, W/T3 TERMINAL 2 X 100 MMAPA, PB TERMINAL 60 MMAPC/-, PO, PA/+ TERMINAL 2 X 100 MMA
Torque Rating
220 OF NOMINAL MOTOR TORQUE FOR 2 SECONDS, 170 FOR 60 SECONDS
Type
AC DRIVE
Voltage
208/240VAC
Wattage
55 kW

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ALTIVAR 71

General Product Info

12-Digit UPC
785901650553
Environmental Conditions
-10-50 AC WITHOUT)
GTiN
03389119201018
Product UPC
78590165055
Weight
220.46 lb

Dimensions

Depth
14.84 Inch
Height
36.22 Inch
Warranty Length
18 mth
Width
12.60 in

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Certifications
C-tick,CSA,GOST,NOM 117,UL
Country of Origin
China
