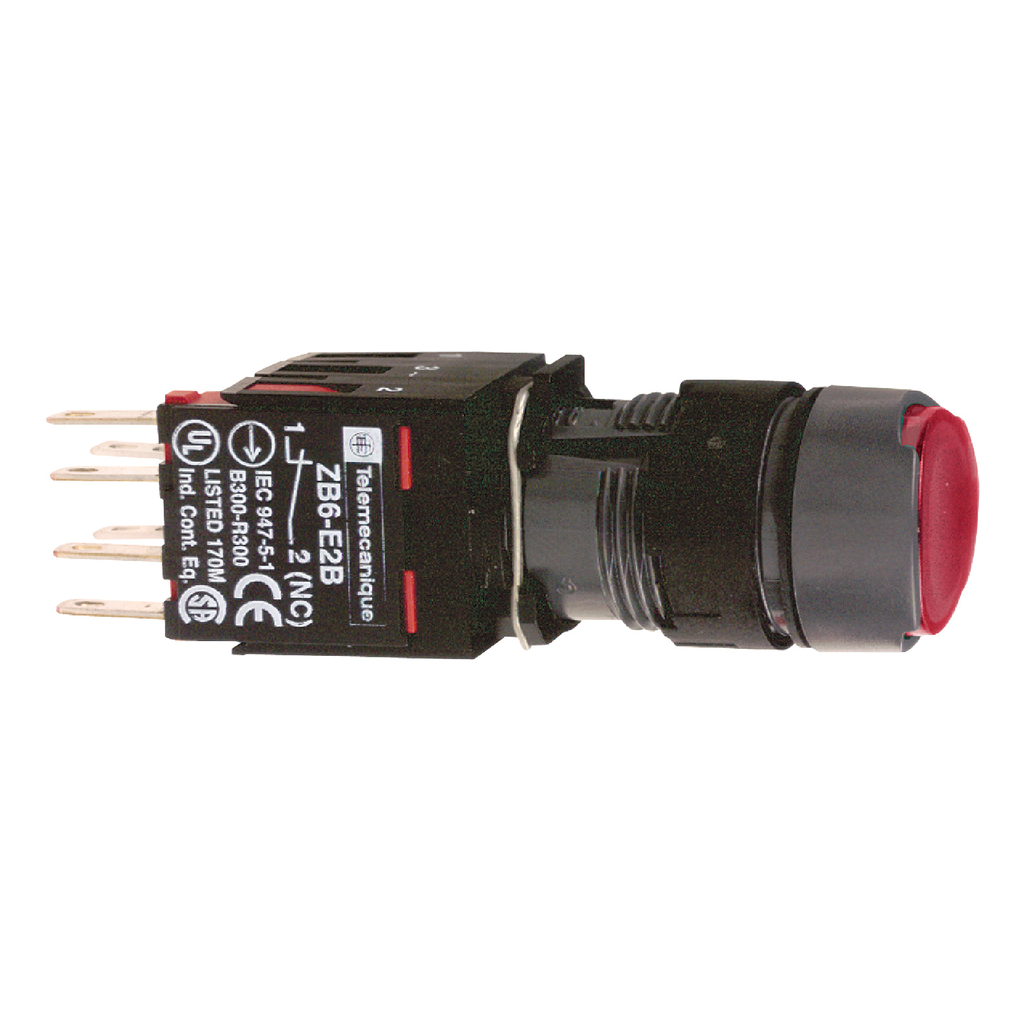

Square D XB6AF4B2B 16 mm 240 VAC 1.5 Amp 1NC Red Round Flush/Maintained Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB6AF4B2B | Cooper Electric Part # 1465637
$44.40/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Complete illuminated push button, Harmony XB6, red flush, 16mm, latching 1NC 12...24V

Technical Information

Action
Slow-break
Actuator
LATCHING,RED FLUSH, UNMARKED
Amperage
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Bezel Material
Plastic
Contact Configuration
1 NC
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Current
15 mA
Enclosure
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Indicator
LED,INTEGRAL LED
Net Weight
0.022 kg
Operating Force
4.5 N NC changing electrical state
Operating Temperature
-25-70 Adegrees C
Size
2.24 in
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-5,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
FASTON CONNECTORS 2.8 X 0.5 MM
Type
Complete illuminated push-button
Voltage
12...24 Volt AC/DC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB6

General Product Info

12-Digit UPC
785901356370
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110763980
Product UPC
78590135637
Weight
0.05 lb

Dimensions

Depth
57 mm
Height
18 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CCC,CSA,GOST,UL
Country of Origin
Mexico
