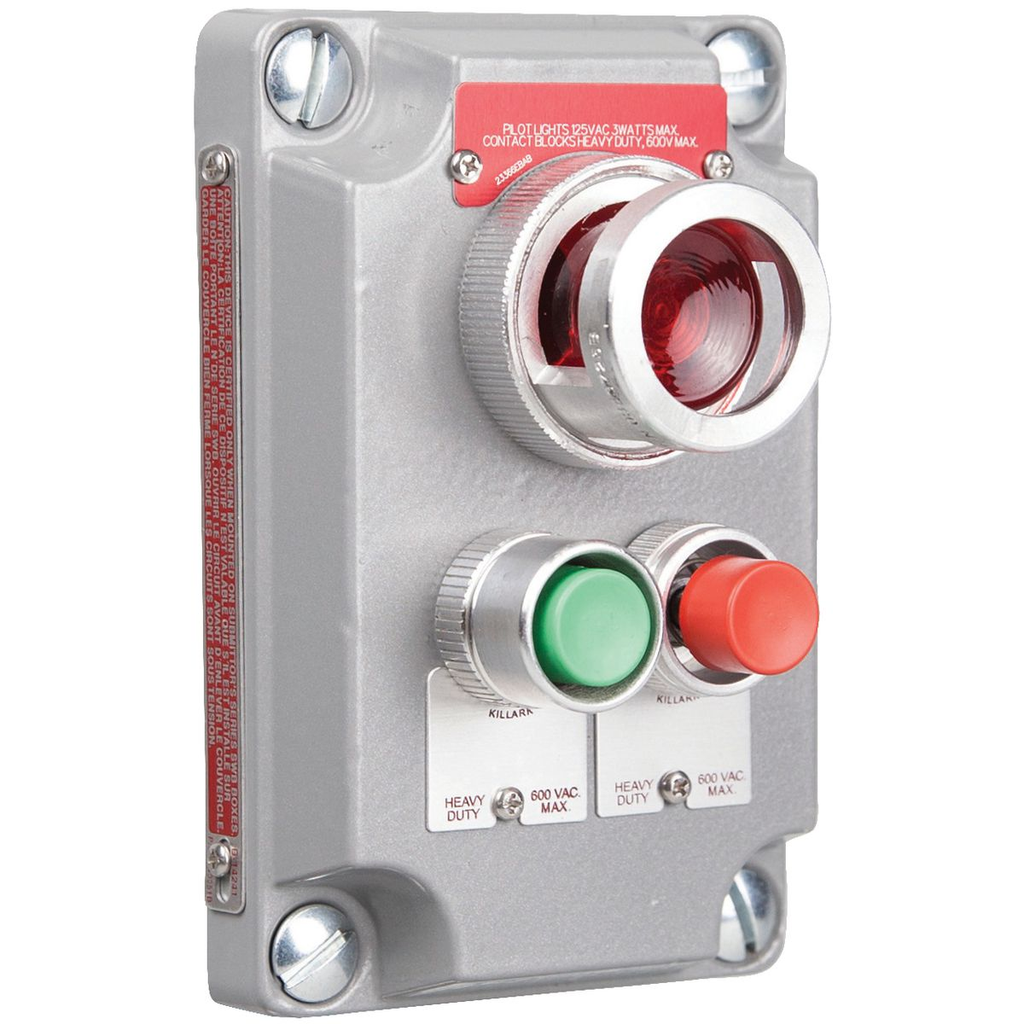

Product image for Killark XCS-0A15D XCS Series- Cover with Device - Momentary Contact Two Mini Red-Green Push Buttons And Red LED Pilot Light
Email

Killark XCS-0A15D XCS Series- Cover with Device - Momentary Contact Two Mini Red-Green Push Buttons And Red LED Pilot Light

Manufacturer: Killark | Catalog # XCS-0A15D | Cooper Electric Part # 1465318
$757.94/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
XCS Series- Cover with Device - Momentary Contact Two Mini Red-Green Push Buttons And Red LED Pilot Light

Technical Information

Action
SP
Actuator
Pilot light and momentary push buttons
Amperage
10 Amp
Applications
Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where similar hazards exist. Use in conjunction with magnetic starters or contactors for remote control of motors.
Contact Configuration
1-NO/1-NC
Contact Rating
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC.
Frequency
50/60 Hz
Material
Aluminum
Number of Poles
2-2 Pole
Size
1 1/2 in
Type
Aluminum cover with LED pilot light and two mini push buttons
Voltage
110/600//110 VAC//VDC

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936960333
Color
Green,Red Light,Red P.B.
GTiN
00783936960333
Product UPC
78393696033

Dimensions

Height
4 Inch
Length
7-7/8 Inch
Width
5.875 in

Certifications and Compliance

Country of Origin
USA
Features
  • Copper free cast aluminum alloy.
  • Ground flange joint between bolted cover and box provide required flame path.
  • Push button, selector switches and pilot light operator bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
