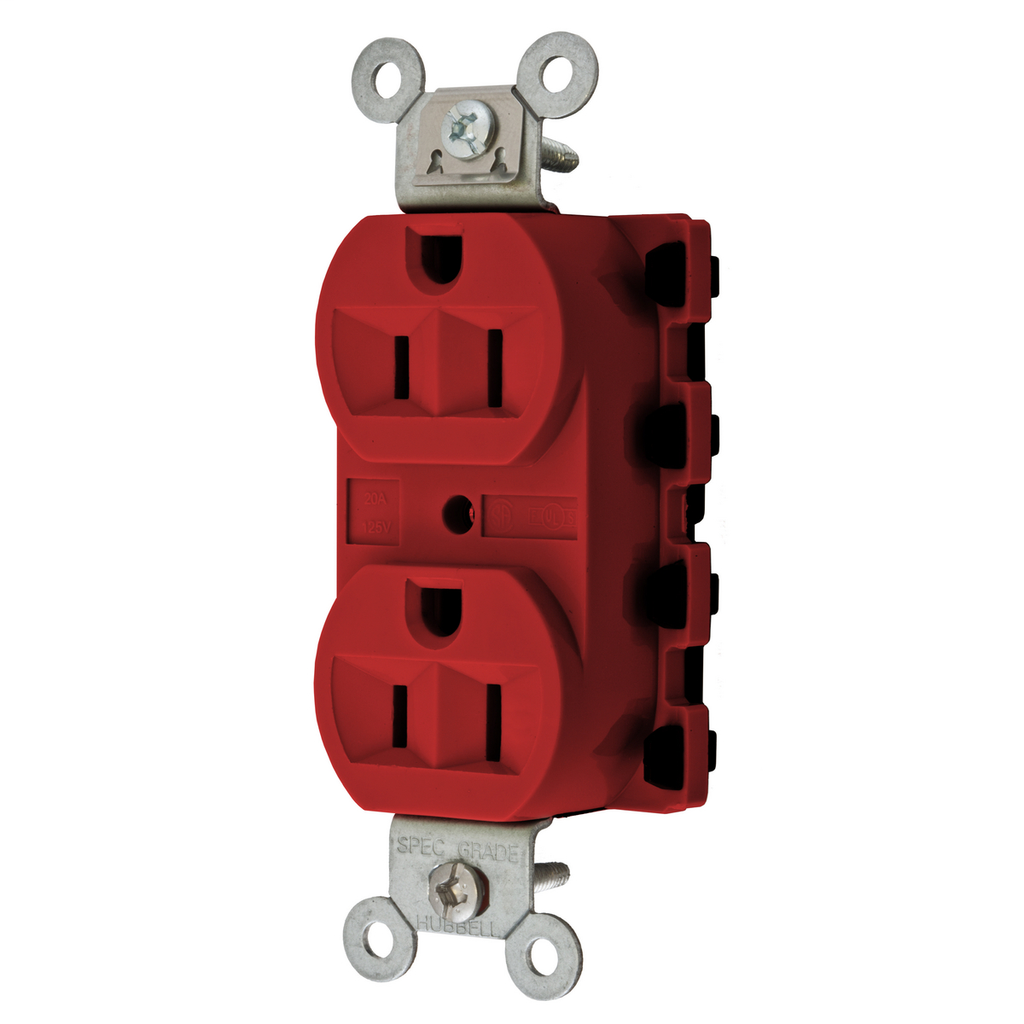

Product image for Hubbell SNAP5262RA Snap2Connect® 15A/125V DPLX, RED
Email

Hubbell SNAP5262RA Snap2Connect® 15A/125V DPLX, RED

Manufacturer: Hubbell Wiring Device | Catalog # SNAP5262RA | Cooper Electric Part # 1459400
$12.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Product Brochure
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Nylon, Red, USA.

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Specification Grade
Base Material
PBT,PBT
Conductor Size
12 AWG
Contact Material
Brass
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Horsepower
0.5 hp
Material
Nylon
NEMA
5-15R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Style
Finder Groove Face
TC Connection
Connectorized
Type
Non-Reversing
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585247793
Color
Red
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585247793
Product Series
Extra Heavy Duty
Product UPC
78358524779
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.56 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (without impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Quick Connect- SNAPConnect
  • Fully insulated design
