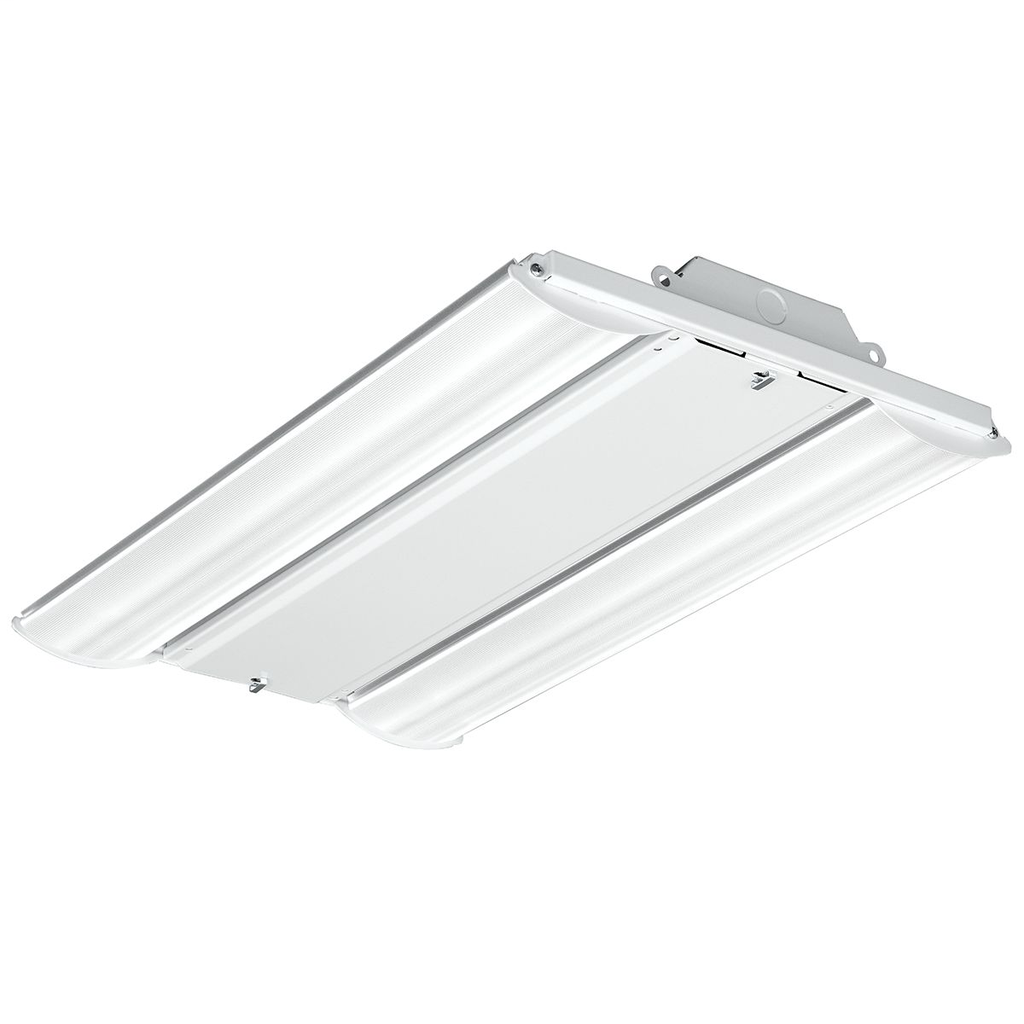

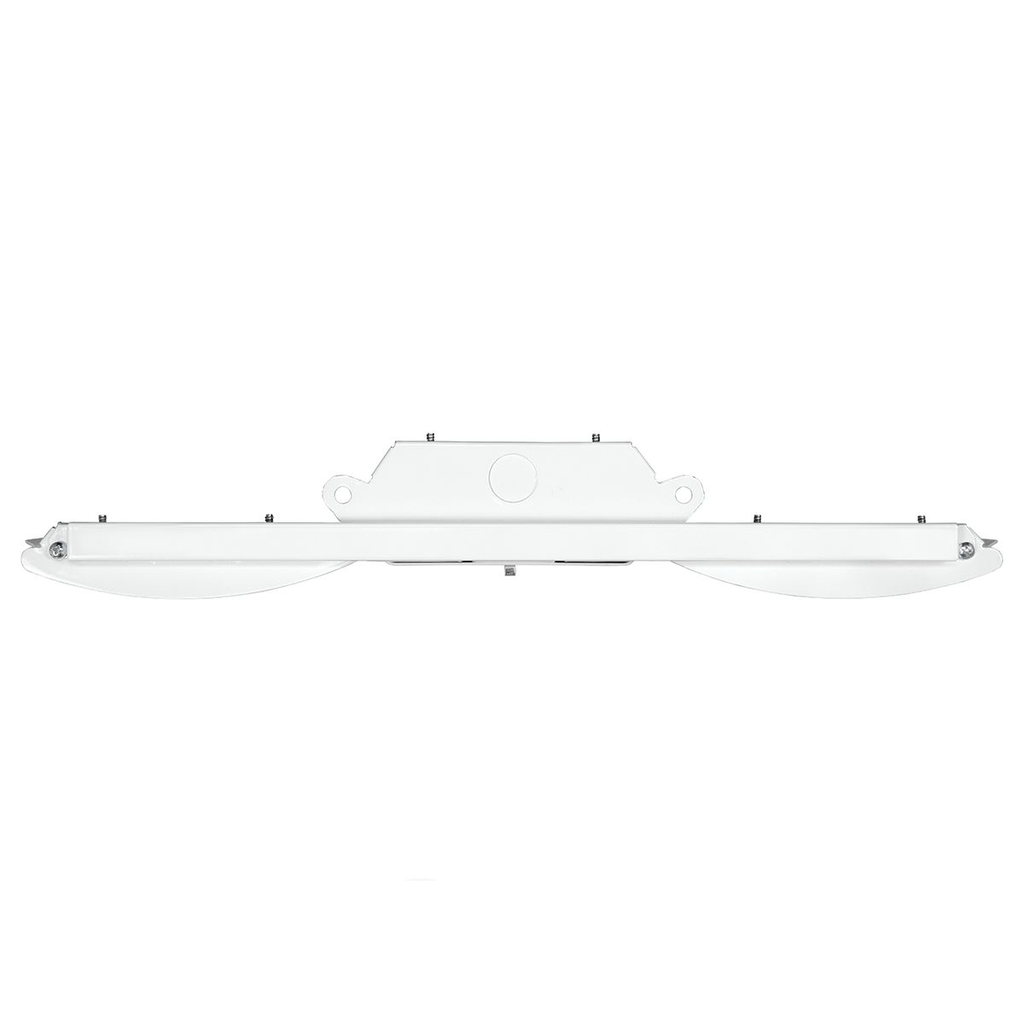

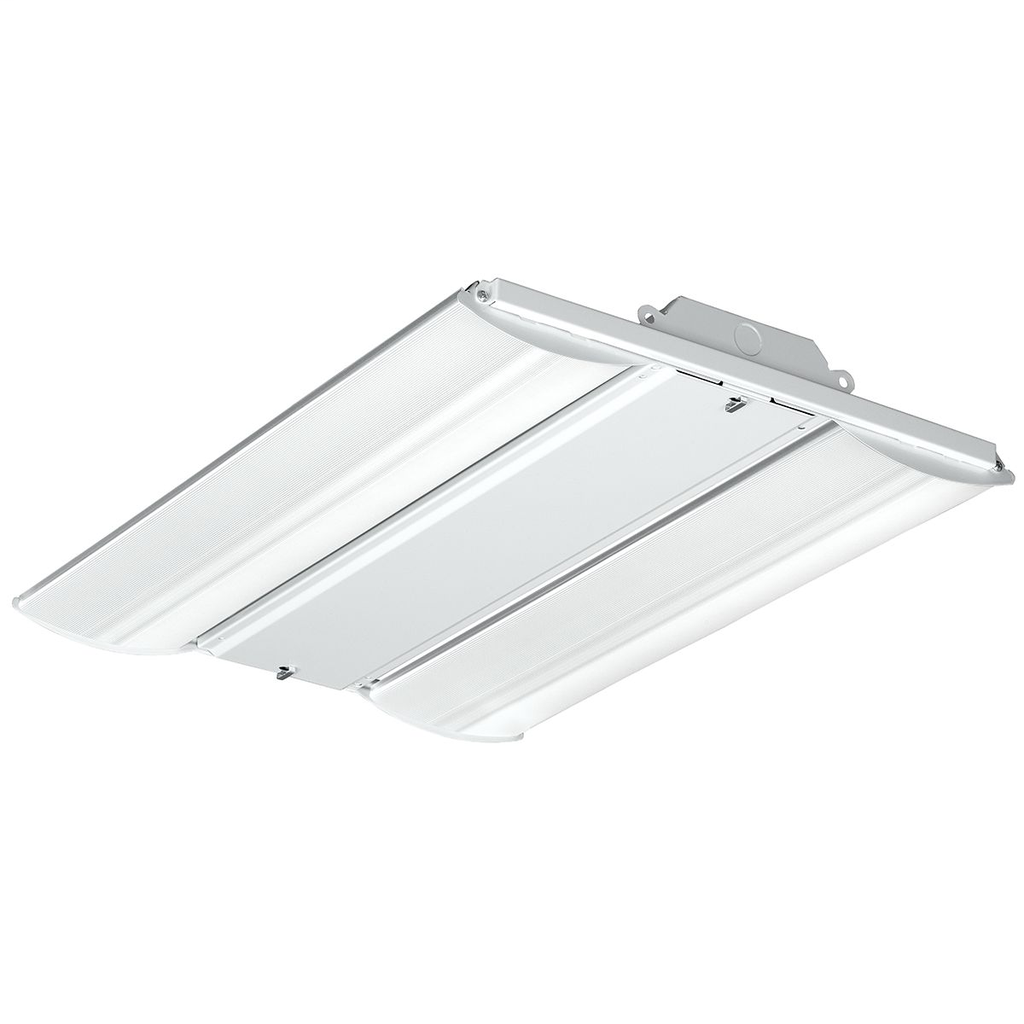

Product image for COL PEL2-40MM-FAW-EDU PEL 2F LED HI
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

COL PEL2-40MM-FAW-EDU PEL 2F LED HI

Manufacturer: Columbia Lighting | Catalog # PEL2-40MM-FAW-EDU | Cooper Electric Part # 1459020
$470.28/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
Peloton™, 2 ft, 4000 K, 18,000 lm, Lens Type: Frosted Acrylic, Light Distribution: Wide Distribution, Driver type: 0-10V Dimming, 120-277 V.

Technical Information

Applications

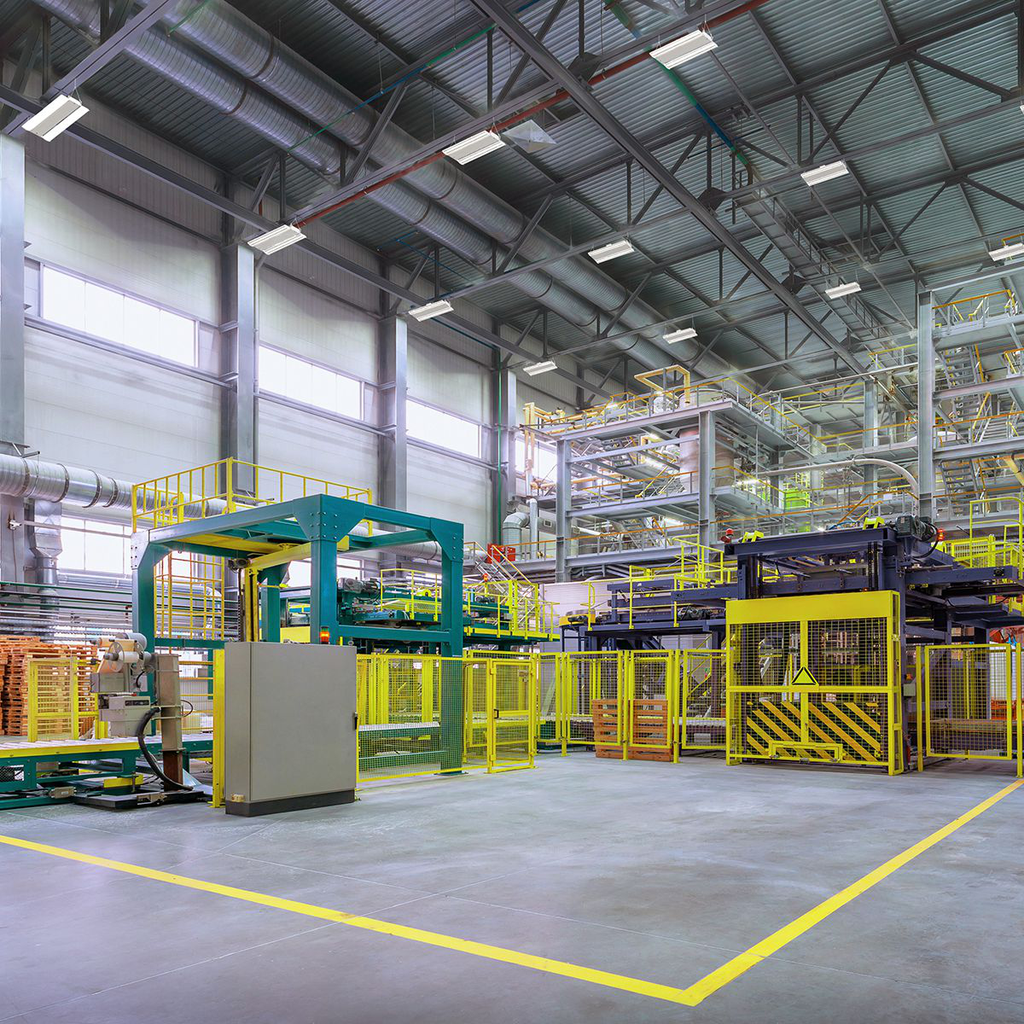

Light & Heavy Industrial, Warehouses, Gymnasiums, Retail, Convention Center
Color Rendering Index
80
Color Temperature
4000 K
Correlated Color Temp
4000 K
Input Voltage
347/480 V
Lamp Type
LED
Lumens
18,000 Lumen
Type
Industrial Bay Lighting, Industrial Linear
Voltage
120/277 Volt
Wattage
122.7 Watt

Manufacturer Information

Brand
Columbia Lighting

General Product Info

12-Digit UPC
078531133733
Fixture Type
Industrial Bay Lighting, Industrial Linear
GTiN
00078531133733
Product UPC
07853113373
Weight
18 lb

Dimensions

Height
3.725 Inch
Length
25-1/4 Inch
Warranty Length
5 yr
Width
15.125 in

Certifications and Compliance

CA Prop65 Warning
Prop65
Country of Origin
Mexico
Features
  • Lumen packages range from 8,000 to 60,000 lumens
  • Uplight options from 1,000 to 4,000 lumens
  • LED light engine provides efficacies of 150+ LPW standard with 170+ LPW for High Efficacy option
  • -20°C (-4°F) up to 65°C (149°F) ambient operation, see table provided for details
  • 6kV surge protection standard, with 10kV option
  • UL 924 with Two emergency battery pack options, 1800 lumens (10watt) and 4000 lumens (20watt)
  • Two distribution options available with frosted acrylic and polycarbonate lens materials
  • Long-life 60,000 hour LEDs at L80
  • NX Distributed Intelligence™ provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
  • DLC® (DesignLights Consortium) Qualified, with some Premium Qualified configurations - see www.designlights.org
  • Five year warranty
