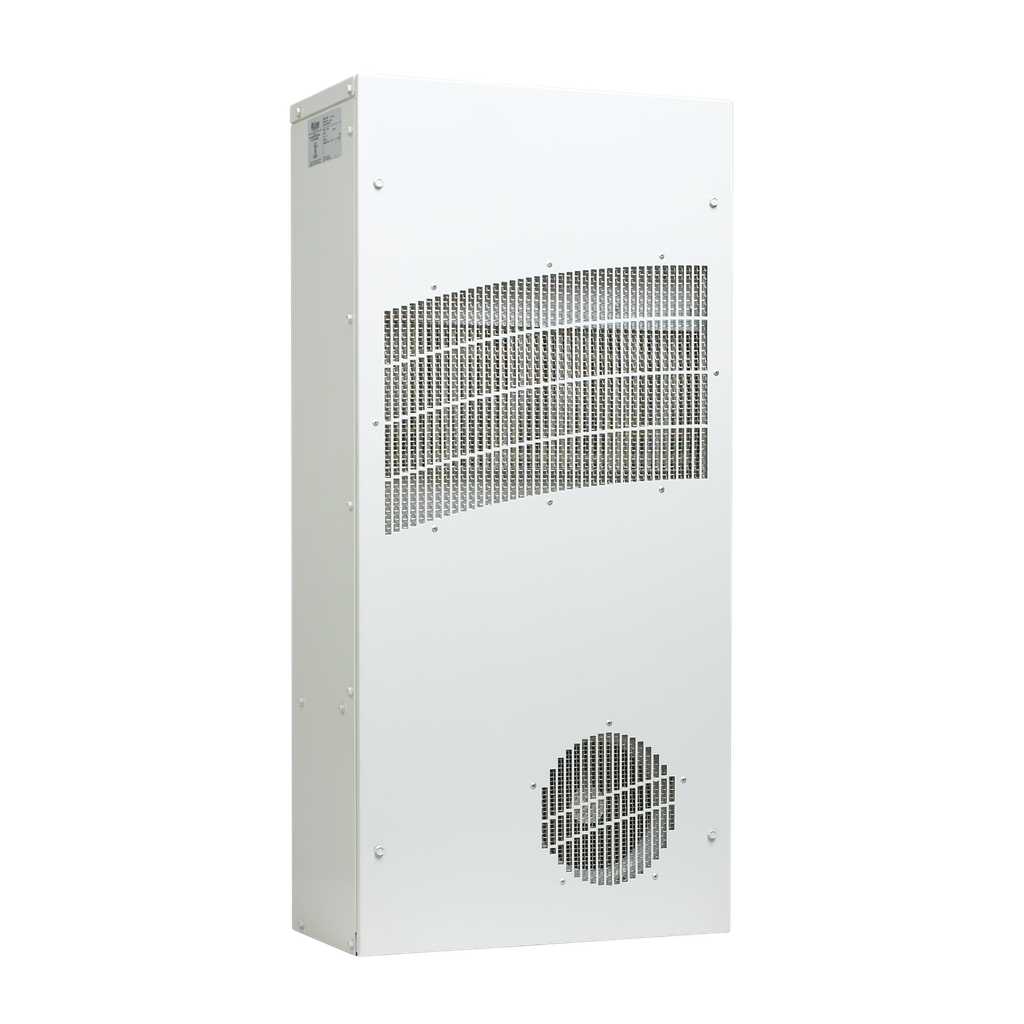

Product image for Hoffman TX332826100 ClimaGuard Air-to-Air Heat Exchanger Outdoor, X33 28w/F 230v

Email

Hoffman TX332826100 ClimaGuard Air-to-Air Heat Exchanger Outdoor, X33 28w/F 230v

Manufacturer: Hoffman | Catalog # TX332826100 | Cooper Electric Part # 1456250

$2,862.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
nVent Hoffman.s ClimaGuard Outdoor Heat Exchangers offer reliable closed-loop cooling while sealing out harsh environments including temperature extremes, dirt, dust, corrosive elements and wind-driven rain. This robust heat exchanger features a double-crimped and dip-sealed core, allowing efficient thermal transfer while ensuring maximum protection against leaks. With ClimaGuard Outdoor Heat Exchangers providing a tight seal against air and water infiltration, units can be simply surface- or recess-mounted to an enclosure with no loss of enclosure integrity.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Corrosive Environments; Hazardous Environments; Hygienic Environments; Power Distribution
Color Coding
RAL 7035
Material
Steel
Max Current
0.4 A
Max Temperature
149 degrees F
Min Temperature
-40 degrees F
Power Consumption
28 W per deg F max
Type
Heat Exchangers
Voltage
200 Volt

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510252663
Color
Gray
Finish
Powder Coated
GTiN
00783510252663
Housing Material
Mild Steel
Product UPC
78351025266
Weight
54 lb

Dimensions

Depth
8.1 Inch
Height
33 Inch
Length
18 Inch
Thickness
1.21 mm
Width
11.00 in
Features
  • Unique counterflow aluminum core for high efficiency and high performance heat transfer
  • Engineered for temperature extremes, corrosive environments and wind driven rain
  • Models for 24 VDC, 48 VDC, 115 VAC and 230 VAC power supplies
  • Variable speed blowers standard on DC powered units for quiet running
  • Filterless design for low maintenance and easy cleaning
  • Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
  • Easy-mount flanges for simple installation
  • Surface or recessed mount capable
  • Every unit functionally tested before shipping
  • Mounting hardware, gaskets and user manual furnished with the unit
