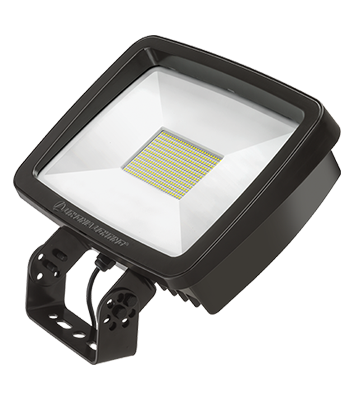

Product image for LITH TFX3 LED 40K MVOLT YK DDBXD Ou
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

LITH TFX3 LED 40K MVOLT YK DDBXD Ou

Manufacturer: Lithonia Lighting | Catalog # TFX3 LED 40K MVOLT YK DDBXD | Cooper Electric Part # 1456184
$1,070.86/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
The TFX3 delivers 25,600 lumens and can replace up to 400W metal halide. The TFX LED floodlight family is an industry-leading distributor stock solution providing cost-effective and energy-efficient solutions to replace HID floodlights. In addition, payback can be achieved in less than two years, due to DLC Premium listing and 140 lumens per watt efficacy. For the full solution, the TFX comes in four sizes delivering 7,000 to 41,000 lumens replacing 70W to 400W metal halide luminaires.

Technical Information

Average Rated Life
100,000 hr
Color Rendering Index
70
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Lamp Type
LED
Lens Material
Glass
Lumens
25, 600 Lumen
Material
Aluminum
Mounting Type
Yoke
Power Source
Hardwired
Size
18x18x17.75
Style
Traditional
Type
Floodlight
Voltage
120 Volt
Wattage
188 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193047670258
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Fixture Type
Floodlight
GTiN
00193047670258
Product UPC
19304767025
Shape
Rectangle
Weight
20.9 lb

Dimensions

Height
17-3/4 Inch
Length
5 Inch
Width
18 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Standards
  • ULDLC Premium
Features
  • The TFX LED flood luminaire is a cost-effective, energy-efficient and long-life solution for replacing metal halide or HPS floodlights
  • Replace up to 400W metal halide while saving over 60% in energy costs
  • Hardwired on/off capability only
  • UL Certified to meet US and Canadian standards, suitable for wet locations, IP66 rated, DesignLights Consortium® (DLC) Premium qualified product
  • 120V-277V and the yoke mount option allows mounting to solid surfaces and has a 30 inch SO cord and is suitable for aiming in any orientation while being tilted from 0° horizontal facing downwards up to 180° horizontal facing upwards
  • Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L90/100,00 hours
  • Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life where the light engines andhousing are IP66 rated and sealed against moisture or environmental contaminants
  • No emergency battery back-up available in this version
  • Five-year limited warranty
  • 18 in x 17-3/4 in x 5 in
