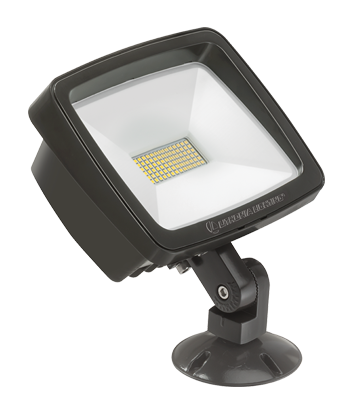

Product image for LITH TFX1 LED 40K MVOLT THK DDBXD M
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

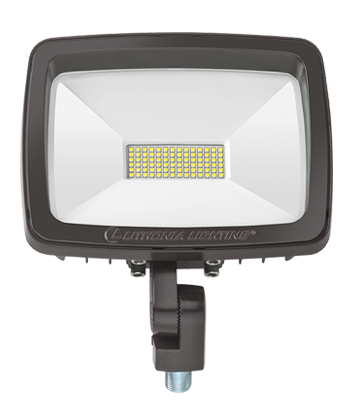

LITH TFX1 LED 40K MVOLT THK DDBXD M

Manufacturer: Lithonia Lighting | Catalog # TFX1 LED 40K MVOLT THK DDBXD M6 | Cooper Electric Part # 1456180
$251.51/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant Product Spec Sheet
The TFX1 delivers 7,300 lumens and can replace up to 150W metal halide. The TFX LED floodlight family is an industry-leading distributor stock solution providing cost-effective and energy-efficient solutions to replace HID floodlights. In addition, payback can be achieved in less than two years, due to DLC Premium listing and 140 lumens per watt efficacy. For the full solution, the TFX comes in four sizes delivering 7,000 to 41,000 lumens replacing 70W to 400W metal halide luminaires.

Technical Information

Average Rated Life
100,000 hr
Color Rendering Index
70
Color Temperature
4000 K
Correlated Color Temp
4,000 K
Lamp Type
LED
Lens Material
Glass
Lumens
7,300 Lumen
Material
Aluminum
Mounting Type
Knuckle
Power Source
Hardwired
Size
3.125x9.375x10
Style
Traditional
Type
Floodlight
Voltage
120 Volt
Wattage
54 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
193047670173
Color
Bronze
Environment
Outdoor
Environmental Conditions
Outdoor
Finish
Gloss
Fixture Type
Floodlight
GTiN
00193047670173
Product UPC
19304767017
Shape
Rectangle
Weight
4.56

Dimensions

Height
10 Inch
Length
3-1/8 Inch
Width
9.375 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China
Features
  • The TFX LED flood luminaire is a cost-effective, energy-efficient and long-life solution for replacing metal halide or HPS floodlights
  • Replace up to 175W metal halide while saving 74% in energy costs
  • Hardwired on/off capability only
  • UL Certified to meet US and Canadian standards, suitable for wet locations, IP66 rated, DesignLights Consortium® (DLC) Premium qualified product
  • 120V-277V and are rated for ground installation and are suitable for aiming in any orientation while being tilted from 0° horizontal facing downwards up to 180° horizontal facing upwards
  • Light engine(s) configurations consist of high-efficacy LEDs and LED lumen maintenance is L84/100,000 hours
  • Die-cast aluminum main body with optimal thermal management that both enhances LED efficacy and extends component life where the light engines andhousing are IP66 rated and sealed against moisture or environmental contaminants
  • No emergency battery back-up available in this version
  • Five-year limited warranty
  • 9-3/8 in x 10 in x 3-1/4 in
Standards
  • ULDLC Premium
