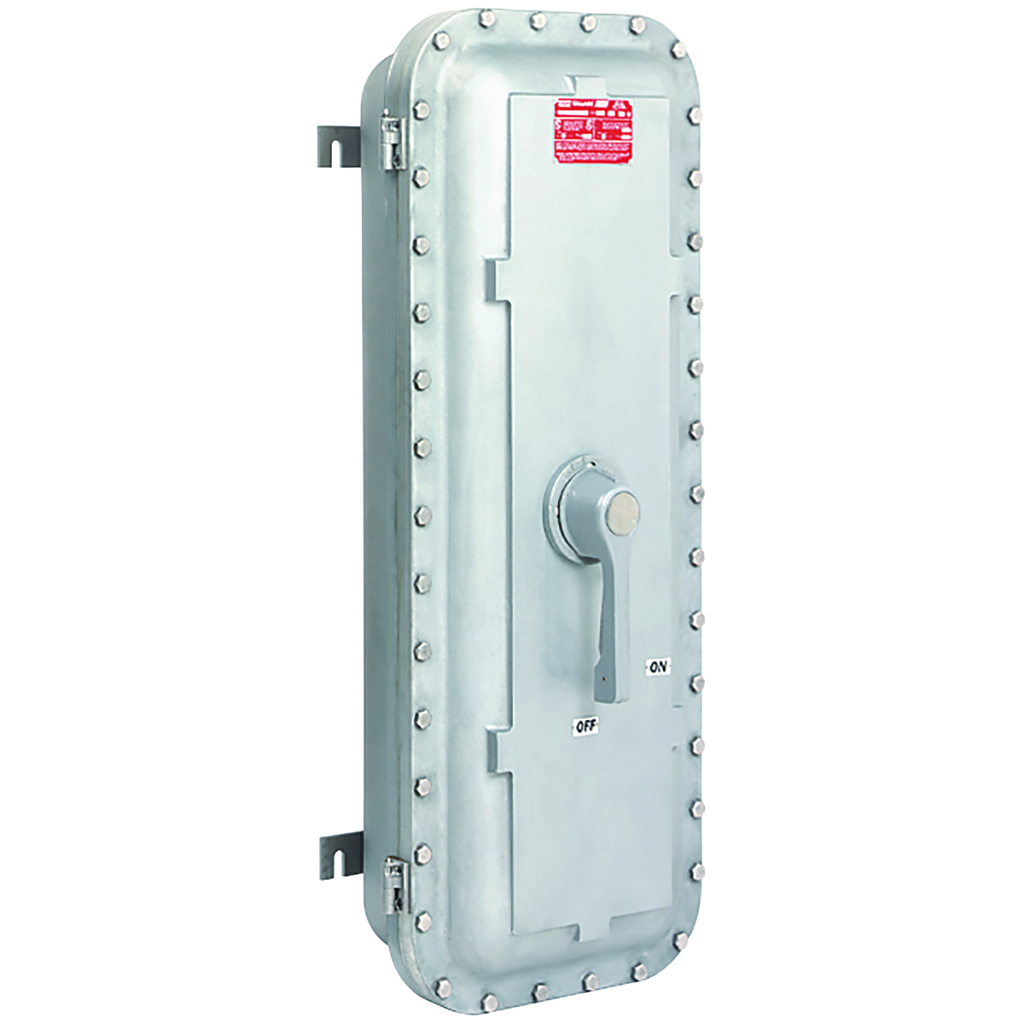

Product image for KLRK B7CF-WND-63800 CKT BRKR ENCL
Email

KLRK B7CF-WND-63800 CKT BRKR ENCL

Manufacturer: Killark | Catalog # B7CF-WND-63800 | Cooper Electric Part # 1453599
$10,757.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual
B7C Series,800 A, 600 VAC, 3 Pole, ND Frame, Circuit Breaker Enclosure

Technical Information

Amperage
800 Amp
Frequency
60 Hz
Material
Aluminum
Mounting Type
Wall
Number of Poles
3 Pole
Number of Wires
4 Wire

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936112466
Color
Aluminum
Finish
Lacquer
Product UPC
78393611246
Weight
540 lb

Dimensions

Height
62-1/4 Inch
Width
20.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Copper-free, cast aluminum construction (less that 4/10 of 1%).
  • High strength, lighter in weight, corrosion resistant.
  • Hinged Cover is standard (left side hinge).
  • More wiring room - Meets the latest NEC/CEC wire bending requirements for circuit breaker enclosures.
  • Ductile Mounting Lugs - Lugs are made of ductile aluminum alloy to adjust to irregular mounting surfaces without damage to enclosure.
  • Universial Mounting Pan - Sheet aluminum pan is pre-drilled to facilitate easy field installation of major circuit breaker brands.
  • Provision for grounding supplied as standard.
  • Conduit Openings Supplied - Standard conduit openings include power conduit top and bottom and a plugged opening suitable for field installation of drain and breather.
  • Special conduit openings can be supplied at factory, or can be field installed.
  • Breaker Handle - Provisions for lock \"ON\" or \"OFF\" positions with up to three padlocks. Spring loaded to prevent damage of breaker toggle and provides positive handle alignment. O-ring on shaft to prevent water seeping into enclosure.
  • Recessed Flange Notches - Flanges are notched to allow for easier cover opening with prying instrument without flange damage.
  • Gasketed Flange - Nitrille (BUNA-N) O-ring gasket is located inside cover bolt circle to prevent water seeping into enclosure.
  • Quick Release, Captivated Cover - Bolts of 316 Grade Stanless Steel Triple lead bolts require only 3 1/2 turns to disengage.
  • Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
