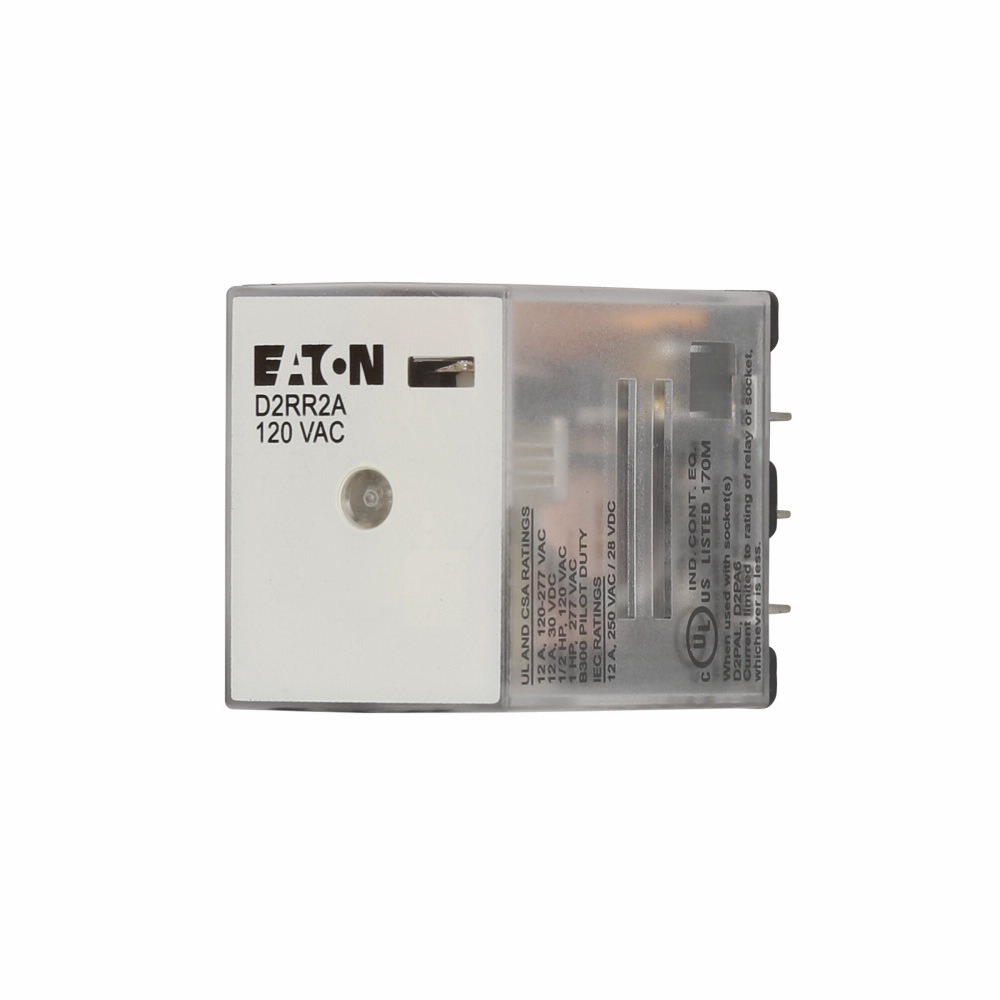

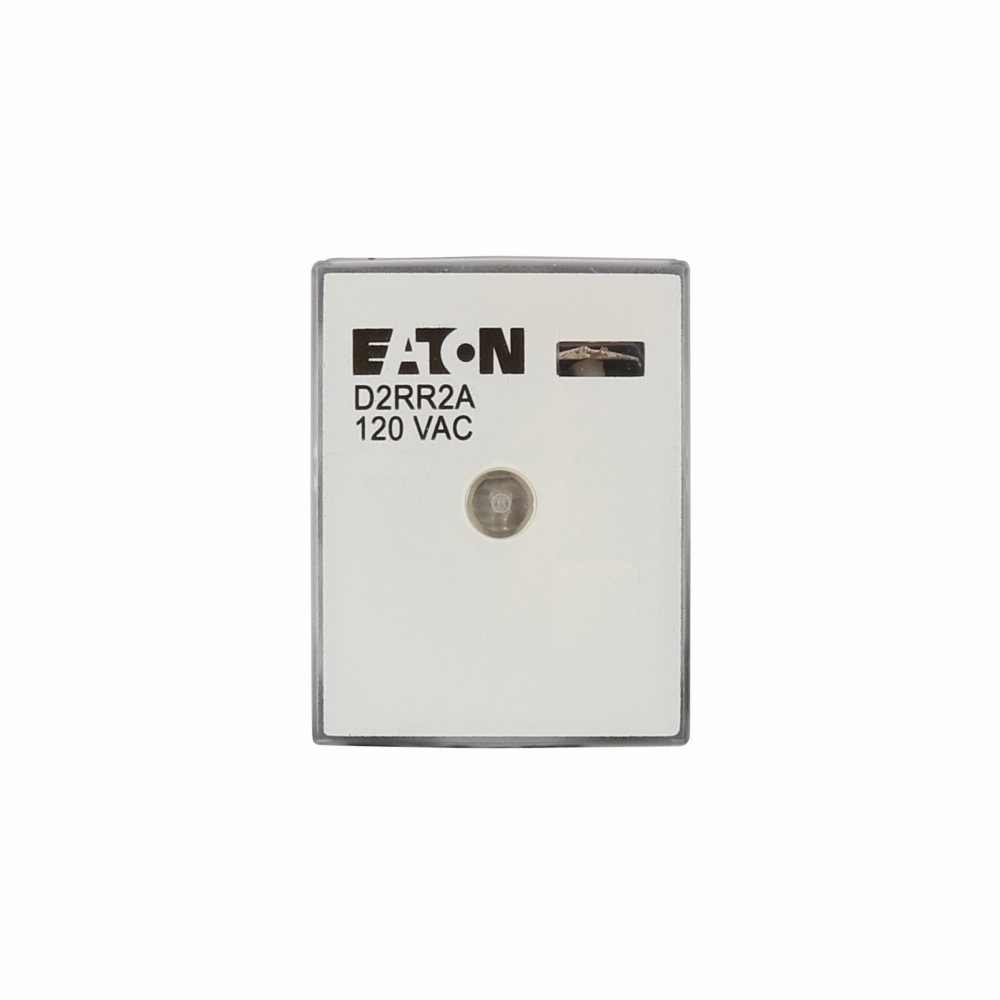

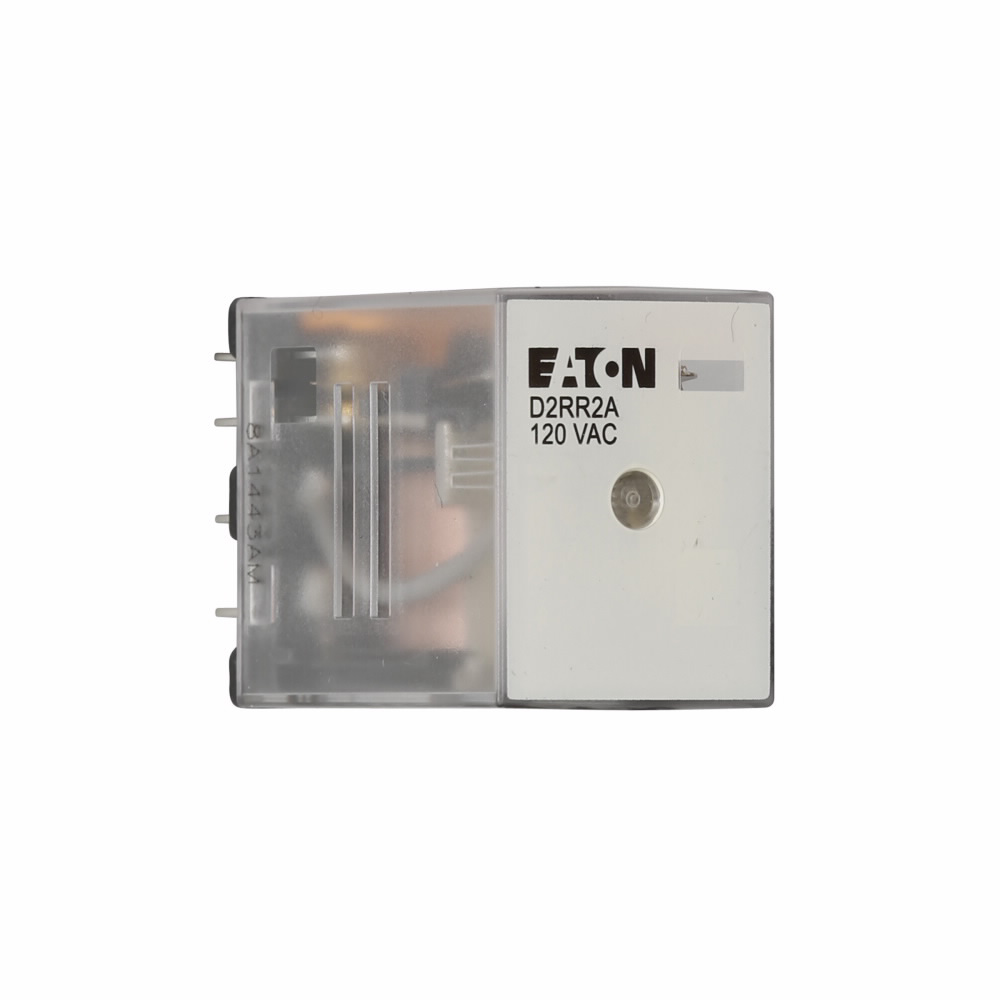

ETN D2RR2R1 ICE CUBE RELAY, DPDT, 1

Manufacturer: Cutler-Hammer / Eaton | Catalog # D2RR2R1 | Cooper Electric Part # 1451482
$23.85/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Eaton General-purpose relay, ICE CUBE RELAY, DPDT, 12A, 12VDC COIL, ICE CUBE RELAY, DPDT, 12A, 12VDC COIL,

Technical Information

Amperage
10 Amp at 120 VAC, 8 Amp at 277 VAC/28 VDC
Applications
Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other
Contact Configuration
DPDT
Contact Material
Silver Alloy
Contact Rating
12 A
Dielectric Strength
1500 VAC Between Coil and Contact, 1500 VAC Between Poles
Material
Polycarbonate
Mounting Type
DIN Rail/Panel/Flange
Number of Poles
2 Pole
Operating Cycles
10000000 Mechanical, 200000 Electrical
Power Rating
0.9 W
Resistance
160 ?
Temperature Rating
-40 to 131 degrees F
Type
Ice Cube, Plain Cover
Voltage
300 Volt

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786685929859
Environmental Conditions
-40 to 185 F Storage
GTiN
00786685929859
Product UPC
78668592985
Weight
.085 lb

Dimensions

Height
1 Inch
Length
2 Inch
