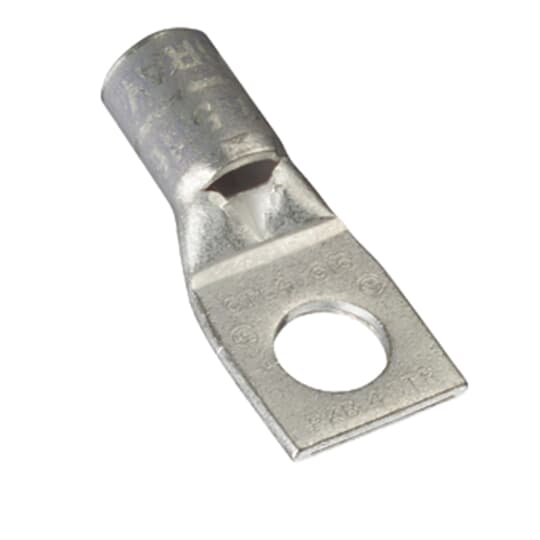

Blackburn CTL4-38 Compression Terminal

Manufacturer: Blackburn / Thomas & Betts | Catalog # CTL4-38 | Cooper Electric Part # 145129
$492.21/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Copper One-Hole Lug, Short Barrel, Max 35kV, 4 Str. Wire, 3/8 Bolt Size, Tin Plated, Die Color Code Gray

Technical Information

Applications
For Copper Conductors
Barrel Length
1/2 in
Barrel Shape
Standard
Barrel Type
Short
Cable Size
4 AWG
Conductor Size
4 AWG
Die Color
Gray
Material
Copper
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
3/8 in
Tongue Angle
Straight
Tongue Type
Straight
Type
Standard Barrel
Voltage
35 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786131754
Color
Gray
Finish
Tin Plated
GTiN
00783786131754
Product UPC
78378613175

Dimensions

Height
2.3 Inch
Overall Length
1-13/32 in
Width
2.8 in
Features
  • Specifically chamfered barrel for ease of installation.
  • Color-coded for matching die identification.
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
Certifications
  • UL
  • CSA
