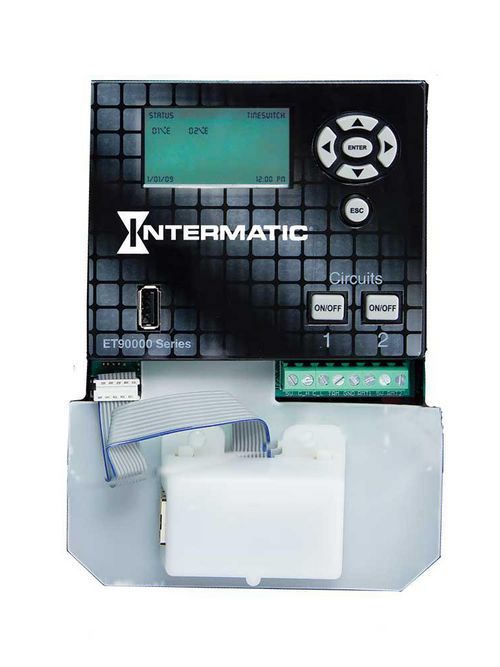

Product image for INT-MAT ET90215M 2-Circuit Time Swi
Image thumbnail 0
Image thumbnail 1
Email

INT-MAT ET90215M 2-Circuit Time Swi

Manufacturer: Intermatic, Inc | Catalog # ET90215M | Cooper Electric Part # 1447468
$791.97/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates.

Technical Information

Amperage
20 Amp
Applications
General Purpose, HVACR
Conductor Size
20-6 AWG
Connection Type
Wire Lead
Contact Configuration
NO/NC
Contact Rating
5 AMP @ 12 - 120 VAC
Frequency
50/60 Hz
Input Voltage
208-277 V
Max Operating Temperature
104 degrees F
Min Operating Temperature
-40 degrees C
Number of Circuits
2
Operating Temperature
104 degrees F
Standard
CCSAus Certified,CULus Listed,HVACR
Switch Type
SPDT
TC Connection
Wire Lead
Type
Astronomic Electronic
Voltage
120-277 VAC
Wire Size
20-6 AWG

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275129955
GTiN
00078275129955
Product UPC
07827512995
Applications
  • School Districts
  • Banks
  • Small Hotels
  • Franchises
  • Retail Stores
  • Municipalities
  • Parking Lots
  • Offices
Features
  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules
  • Advanced scheduling including relative dating, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware upgradable in-field via USB or Ethernet
  • Firmware upgradable in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models
  • PC App for easy scheduling or control, either remotely or through USB flash drive
  • Mobile app for real time status and overrides
Related Accessories and Parts
  • ET9232
Compare
