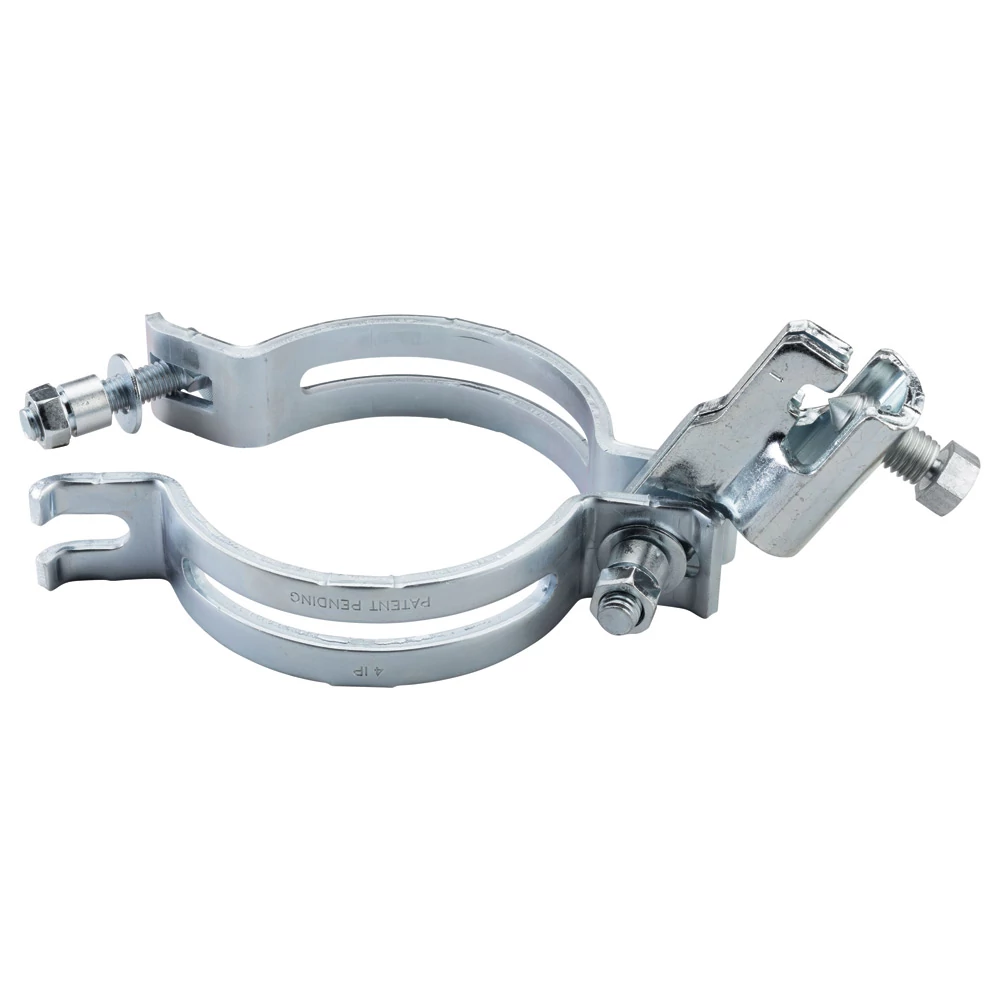

Product image for Erico CSB0150 Universal Sway Brace, EG, 1 1/2" Pipe
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Erico CSB0150 Universal Sway Brace, EG, 1 1/2" Pipe

Manufacturer: Erico, Inc | Catalog # CSB0150 | Cooper Electric Part # 1446830
$5,509.26/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
Universal Sway Brace, EG, 1 1/2" Pipe

Technical Information

Angle
45 degrees
Applications
Seismic Bracing; Fire Sprinkler
Material
Steel
Pipe Size
1-1/2 in
Type
Sway Braces

Packaging

Standard Packaging Qty
10 pc

Manufacturer Information

Brand
nVent Caddy

General Product Info

12-Digit UPC
782856920168
Finish
Electro Galvanized
GTiN
00782856920168
Product UPC
78285692016
Weight
1.12 kg

Dimensions

Width
1 1/2 in

Certifications and Compliance

Certifications
CULus,FM,FM Tested,OSHPD
Features
  • Used for both lateral and longitudinal sway brace applications
  • Snap-off bolt head helps enable easy installation and inspection
  • Works with 1\" to 2\" (25,4mm to 50,8mm) brace pipes to reduce inventory
  • Works with 12 gauge or thicker Type A solid strut as brace member
  • Meets NFPA®-13 and CEN/TS 1755:2021 requirements for seismic sway bracing
  • FM Approved with the following brace members: Type A Solid Strut (12 gauge or thicker) and 1-2 in Sch40/EN 10255H Pipe
  • FM Specification Tested with the following brace members: Type A Solid Strut (12 gauge or thicker) and 1-2 in Sch40/EN 10255H Pipe
Certifications
  • cUL ULC/ORD-C203A
  • UL UL 203A
  • FM Tested ANSI/FM 1950
  • FM Approved, Seismic FM 1950-2013
