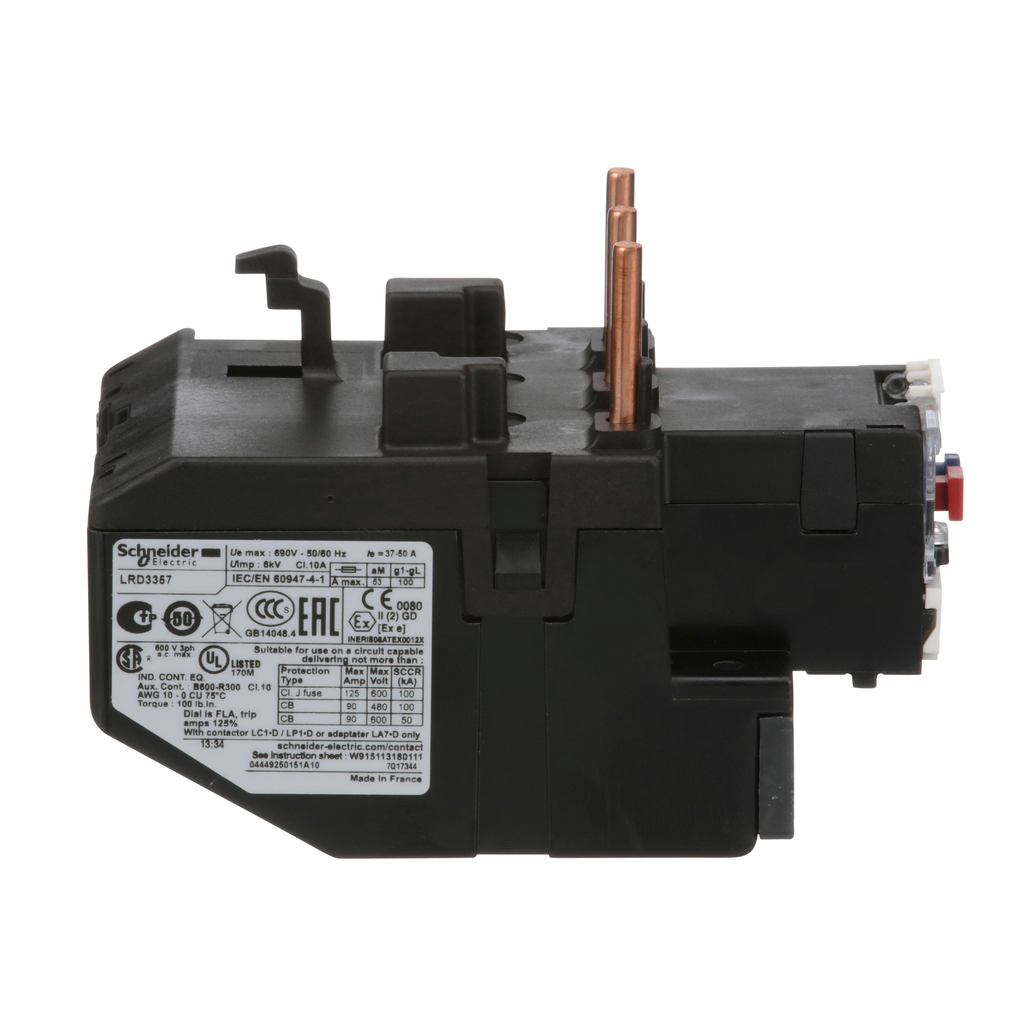

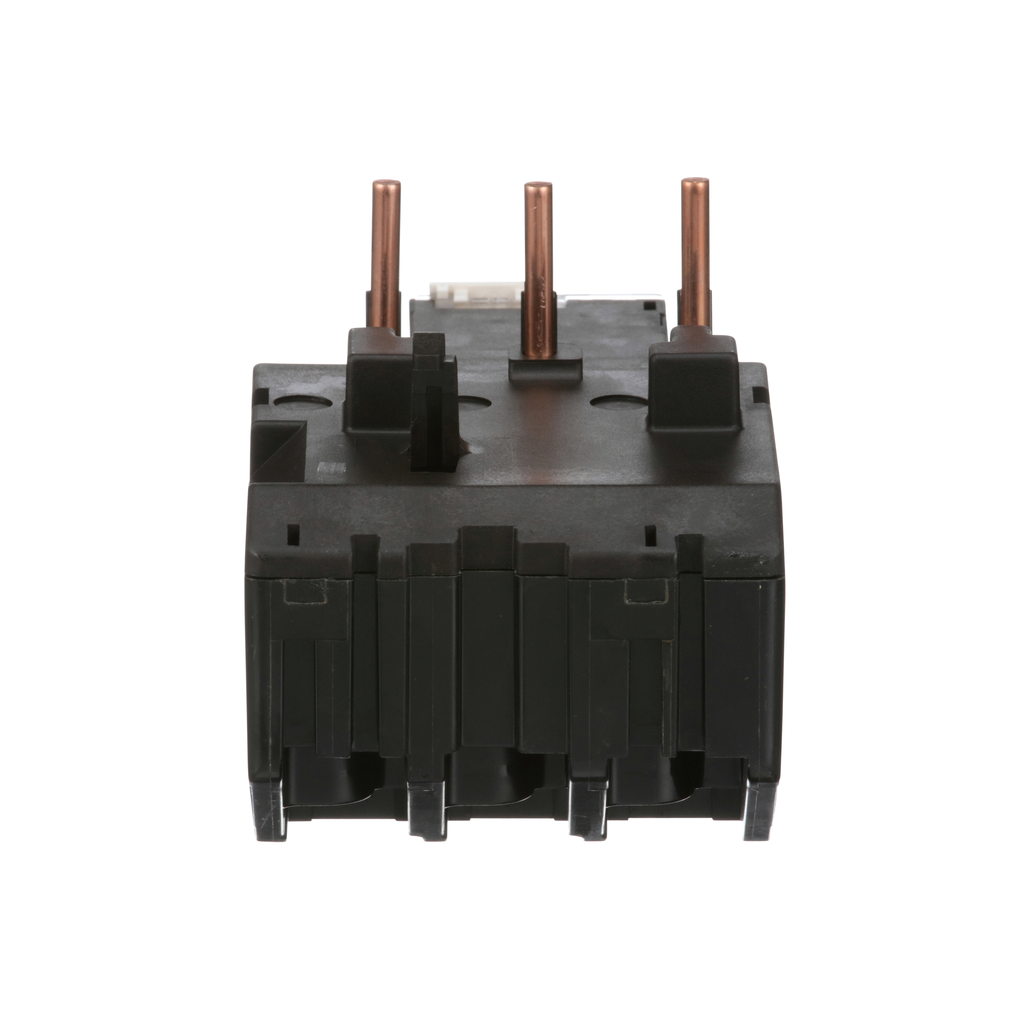

Square D LRD3357 600 Volt 50 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

Manufacturer: Square-D / Schneider | Catalog # LRD3357 | Cooper Electric Part # 144464
$171.61 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00PM ET
2 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page Product Spec Sheet CAD Drawing #1 Product Brochure CAD Drawing #2 CAD Drawing #3
TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 80 amp through 95 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 37 to 50 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Technical Information

Applications
LC1D95;LC1D80;Motor protection
Contact Configuration
1 NO + 1 NC
Contact Rating
10A CONTROL CIRCUTRY
Control Type
Red push-button stop;Blue push-button reset
Dielectric Strength
50 Hz
Net Weight
0.51 kg
Number of Poles
3 Pole
Operating Temperature
-20C TO 60C WITHOUT DERATING
Reset Type
MANUAL OR AUTO
Size
4.53 in
Standard
CSA C22.2 No 60947-4-1,CSA C22.2 No 60947-5-1,EN 50495,EN/IEC 60947-4-1,EN/IEC 60947-5-1,GB/T 14048.4,GB/T 14048.5,UL 60947-4-1,UL 60947-5-1
Storage Temperature
-60-70 degrees C
Trip Type
THERMAL - AMBIENT COMPENSATED BI-METALLIC/DIFFERENTIAL CLASS 10 WITH SINGLE PHASE SENS.
Type
Differential thermal overload relay
Voltage
1000 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LRD;TeSys LRD;TeSys Deca

General Product Info

12-Digit UPC
338911051997
GTiN
03389110519952
Product UPC
78590151995
Weight
0.51 kg

Dimensions

Depth
115 mm
Height
3.19 in
Warranty Length
18 mth
Width
2.76 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX INERIS,CCC,CSA,EAC,IEC,UKCA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Features
  • Ensure high safty with phase failure and load unbalance detection
  • The thermal adjustement dial enables accurate and reliable operation
  • It is designed with a transparent cover lockable by sealing in case of misoperation
  • Simple mounting on DIN rail or screw fixing
  • Multi sdandards certified makes it possible to wide application
  • Simple and quick maintenance with compact size
Accessory Products
  • LA7D305
  • LA7D902
  • XB5AL84101
  • XB5AA86102
Related Products
  • LC1D80M7
  • LC1D80P7
  • LC1D80F7
  • GV3L50
