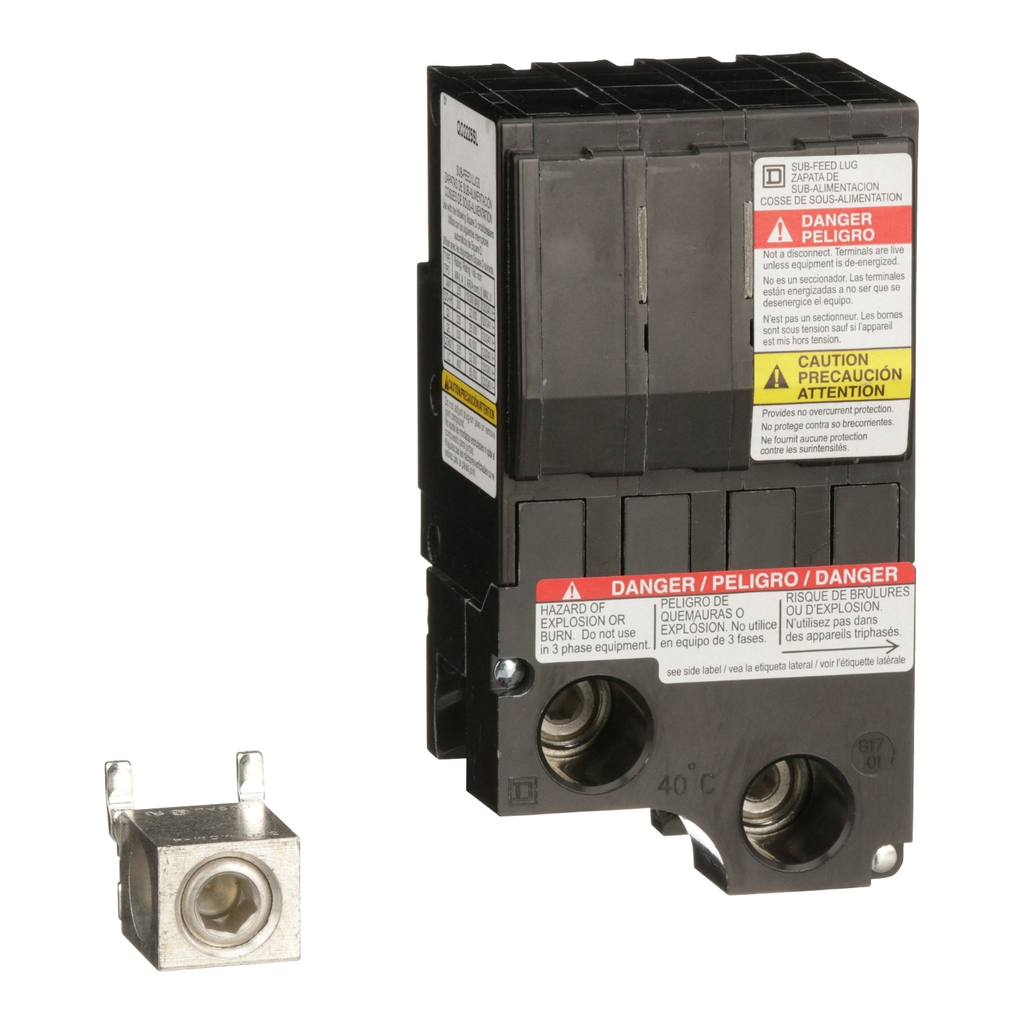

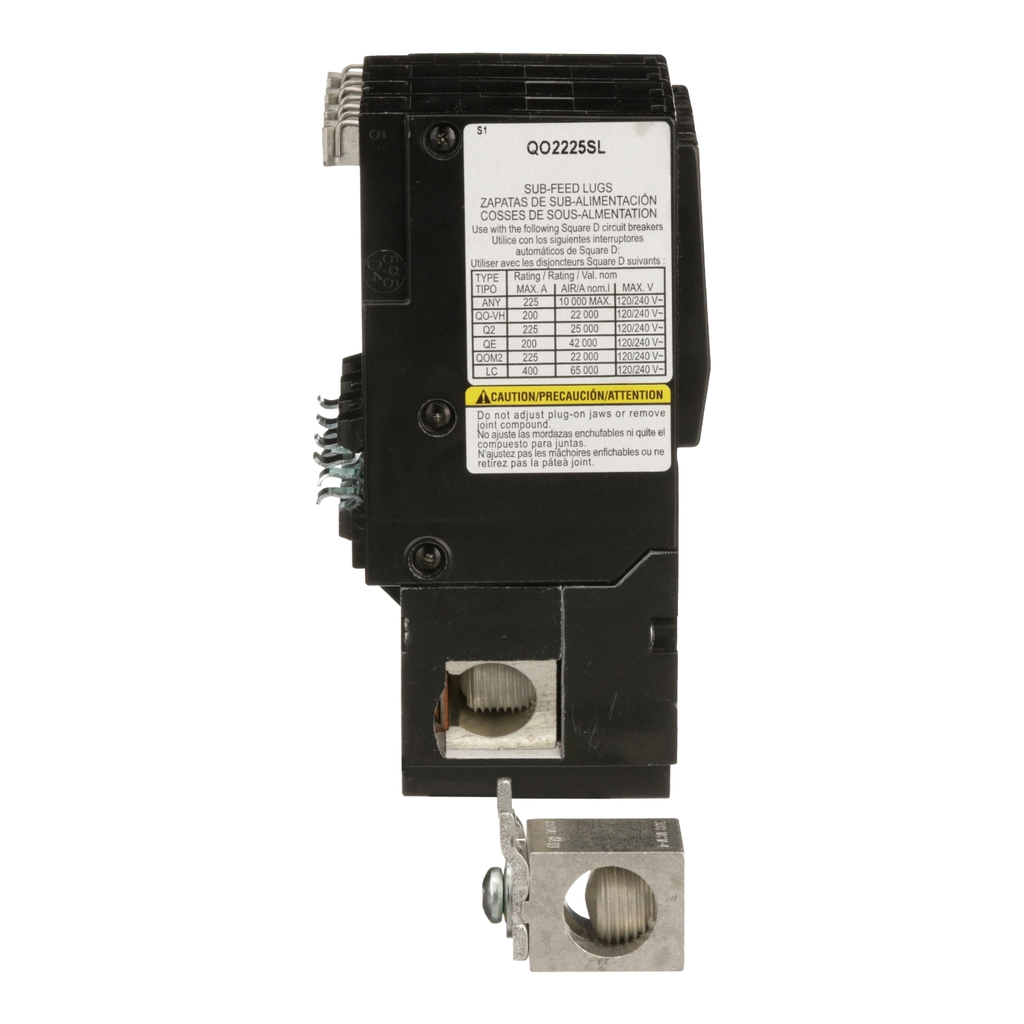

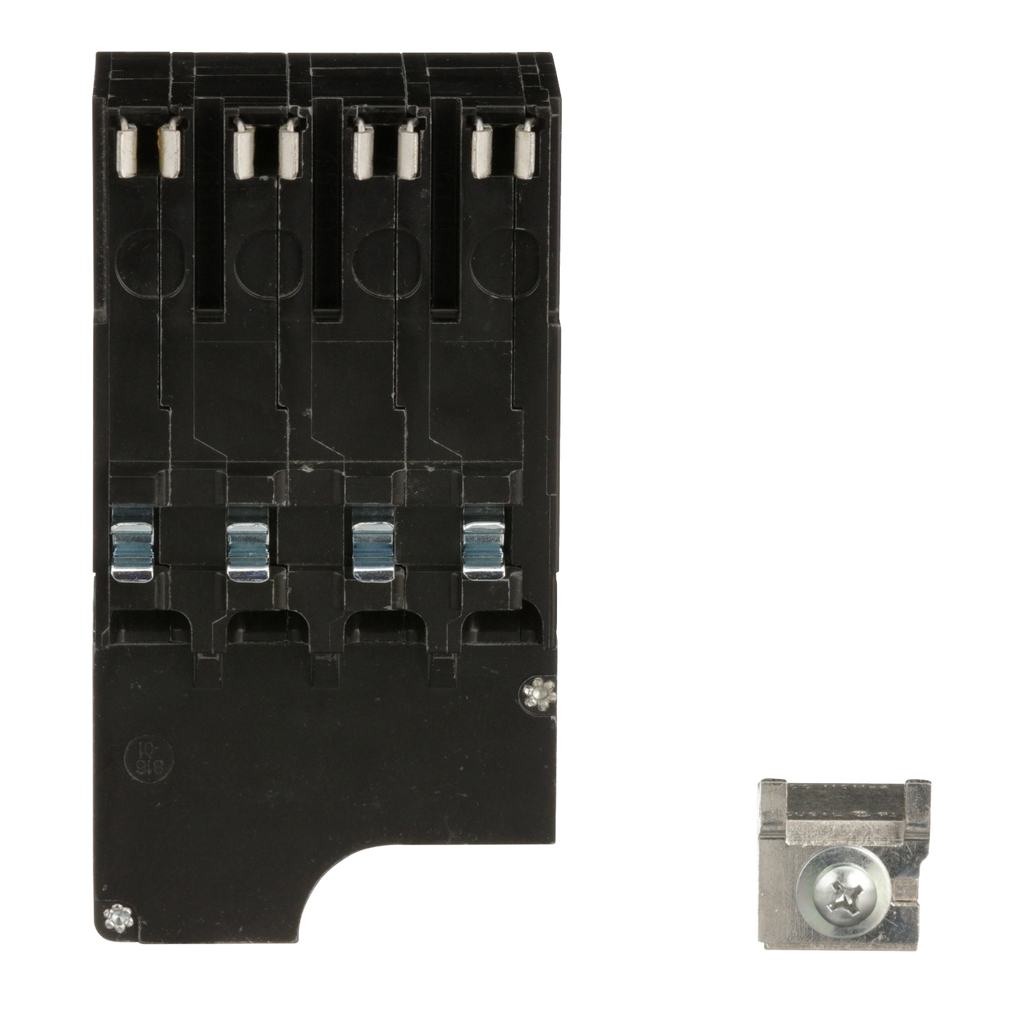

Square D QO2225SL Circuit Breaker Sub-Feed Lug

Manufacturer: Square-D / Schneider | Catalog # QO2225SL | Cooper Electric Part # 144273
$308.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
4 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page Product Brochure
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO and QOB miniature circuit breaker subfeed lug kit is rated for 225 A, 2 pole, and 4 spaces. Lugs will accept 4 AWG to 300 kcmil aluminum or copper wire.

Technical Information

Amperage
225 Amp
Applications
HACR RATED,QO
Conductor Size
4 AWG-300 kcmil
Current
225 Amp
Interrupt Rating
10 kAIC
Line Rated Current
225 A
Mounting Type
Plug-In
Number of Phases
2 Phase
Number of Poles
4 Pole
Number of Spaces
4
Operating Temperature
23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
TC Connection
SUB-FEED LUGS #14 TO #8 AWG(AL/CU)
Type
Lug kit
Voltage
120/240 Volt
Wire Size
AWG 4...300 kcmil copper or aluminium NULL

Manufacturer Information

Brand
Square D
Sub Brand
QO

General Product Info

12-Digit UPC
785901755708
GTiN
00785901755708
Product UPC
78590175570

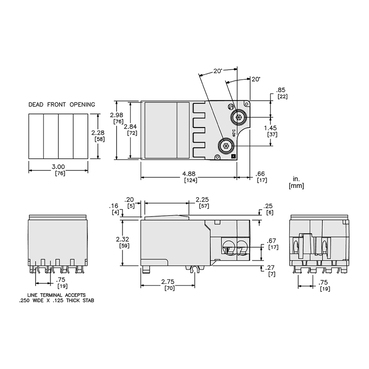

Dimensions

Depth
2.31 Inch
Height
3-1/2 Inch
Length
2.31 Inch
Warranty Length
18 mth
Width
2.988 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CURus
Country of Origin
Mexico
Carbon Footprint Of The Installation Phase A5
  • 0.0002675281
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.2 kg CO2 eq.
  • 0.1957867864
Ue Rated Operational Voltage
  • 120/240 V AC
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 6 kg CO2 eq.
  • 6.2580937054
Persona Type Names
  • End User
  • Consumer
  • Contractor
  • Electrician
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 17 kg CO2 eq.
  • 17.3042434783
Persona Type Ids
  • EU
  • EUA
  • LC
  • SC
Carbon Footprint Of The Distribution Phase A4
  • 0.1381841038
  • 0.1 kg CO2 eq.
AWG Gauge
  • AWG 4...300 kcmil copper or aluminium
Ambient Air Temperature For Operation
  • -5 °C
  • 40 °C
