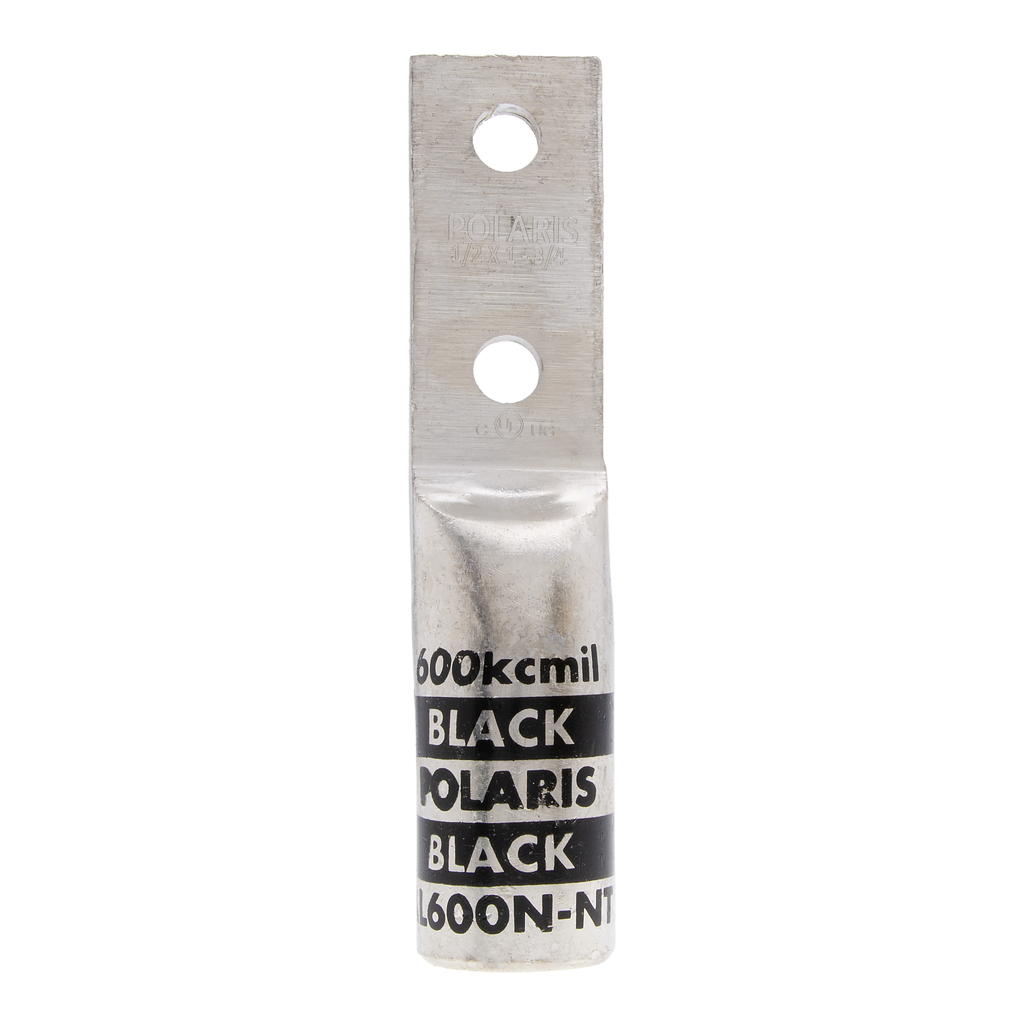

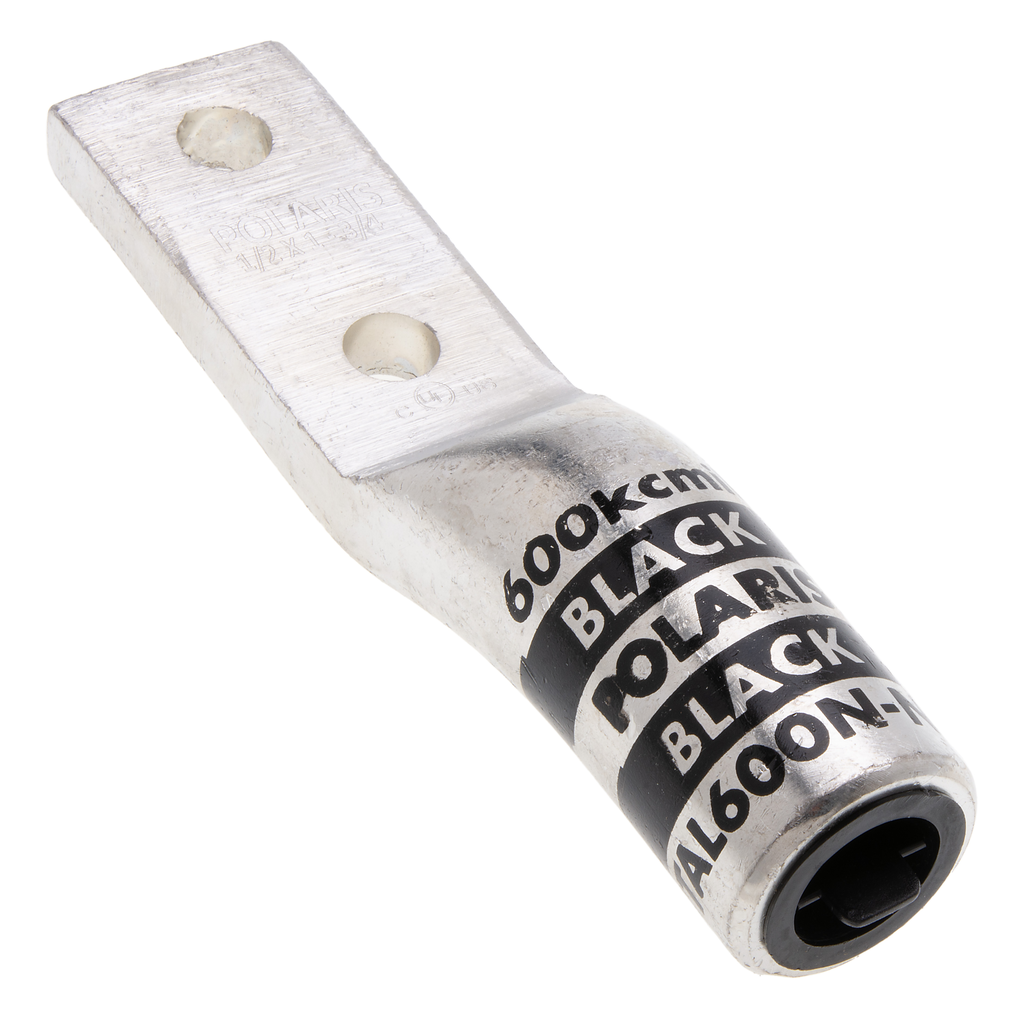

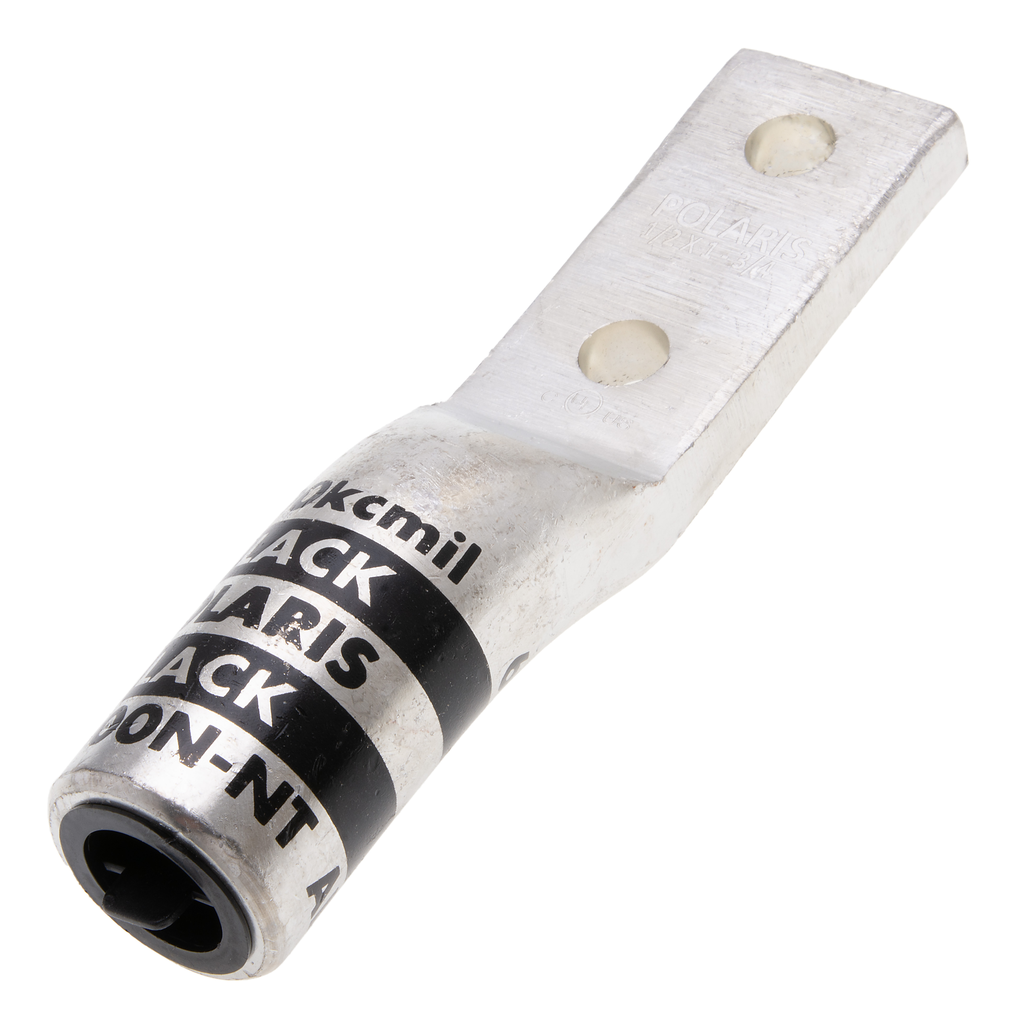

Product image for NSI AL600N-NT 600mcm AL CMP 1/2" ho
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

NSI AL600N-NT 600mcm AL CMP 1/2" ho

Manufacturer: NSi | Catalog # AL600N-NT | Cooper Electric Part # 1441523

$5,331.73/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Buy American Compliant Buy American Compliant
The POLARIS compression connectors are crafted from premium grade aluminum, ensuring exceptional conductivity and minimal signal loss. Additionally, a tin-plated finish provides superior corrosion resistance, even in harsh environments. The die color-coded markings simplify cable selection, while installation requires only a single standard crimp tool, saving you time and effort. These lugs are also compatible with flex rated cable, class K, H, G, I, M, and DLO. Useful in all environments up to 194 degrees Fahrenheit (90 C, AL9CU), these connectors are cULus and UL486A-486-B certified and rated for use with class B and C wires. The innovative design features of our compression connectors don.t just make connections faster.they also make connections better.

Technical Information

Material
Aluminum
Max Temperature
194 degrees F
Voltage
600 Volt

Manufacturer Information

Brand
Polaris

General Product Info

12-Digit UPC
662381367488
Finish
Tin Plated
GTiN
00662381367488
Product UPC
66238136748

Dimensions

Height
1.44 Inch
Length
6-3/4 Inch
Warranty Length
1 yr
Width
1.41 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
India
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
Features
  • High conductivity aluminum tubing and corrosive resistant tin-plated finish
  • Die cast color-coded identification
  • Dual rated for both copper and aluminum conductors
  • Flex rated for use with K, H, G, I, M and DLO cable
  • Narrow tang fits on adjacent mounting holes on a NEMA standard bus bar
Additional Notes
  • UL listed to 35kV when properly installed to cable manufacturers specifications, Expanded wire range when installed with dieless NSi compression tool (N12ID), Dieless tools require only one crimp. See installation instructions for more details
