LITH EU2L B M12 Lithonia Lighting L

Manufacturer: Lithonia Lighting | Catalog # EU2L B M12 | Cooper Electric Part # 1440063
$91.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

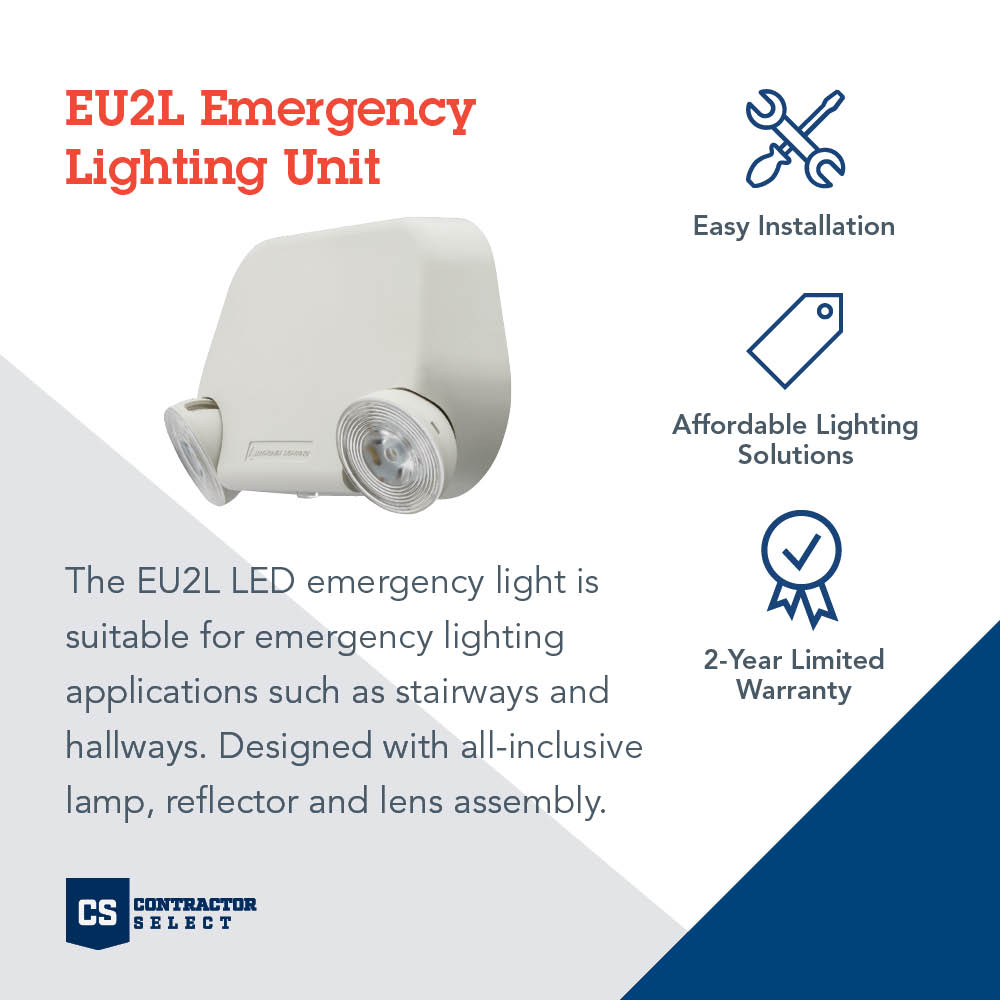

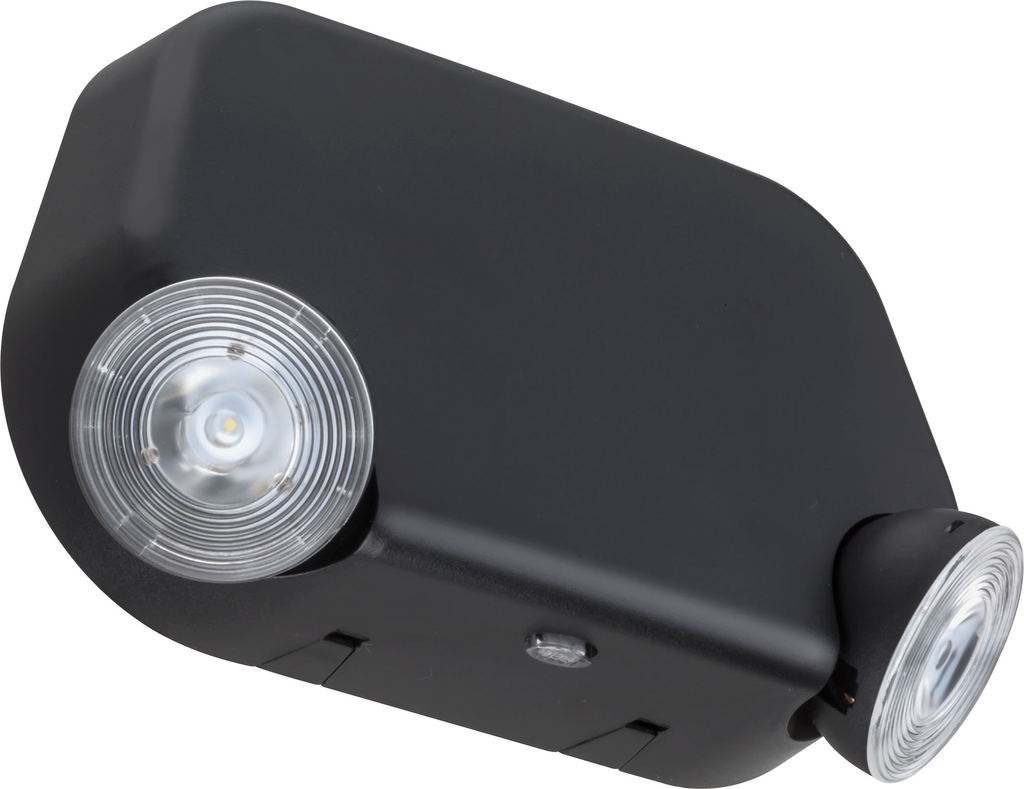

The Lithonia Lighting® black housing EU2L LED Emergency Light is suitable for emergency lighting applications such as stairways and hallways. Designed with all-inclusive lamp, reflector and lens assembly. Its low profile and dual lamp heads make the EU2L ideal for safely illuminating the path of egress in small spaces at lower mounting heights. It can be wall or ceiling mounted and will provide 90 minutes of emergency power in the case of power loss.

Technical Information

Applications
Education,Hospitality,Offices & Banks,Retail
Color Temperature
5000 K
Correlated Color Temp
5000 K
Lamp Type
LED
Lamp Wattage
0.75
Lens Color
Clear
Lens Material
Plastic
Lumens
150 Lumen
Mounting Type
Surface
Power Source
Hardwired
Size
7.875x2.75x4.5
Type
Emergency Lighting Unit
Voltage
120 Volt
Wattage
0.75 Watt

Manufacturer Information

Brand
Lithonia Lighting

General Product Info

12-Digit UPC
191848035429
Color
Black
Environmental Conditions
Indoor
Finish
Matte
Fixture Type
Emergency Lighting Unit
GTiN
00191848035429
Product UPC
19184803542

Dimensions

Height
4-1/2 Inch
Length
7-7/8 Inch
Width
2.75 in
Standards
  • NFPA 101
  • ULCA Title 20
Applications
  • Education
  • Hospitality
  • Offices & Banks
  • Retail
Features
  • This low-profile design features dual adjustable lamp heads making it ideal for small spaces at lower mounting heights. The EU2L provides a min of 90 minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
  • The energy efficiency of LEDs improves your payback and reduces your total cost of ownership.
  • UL Listed. Meets all applicable requirements for UL 924, NFPA 101 (current Life Safety Code),NFPA 70 (NEC), California Energy Commission Title 20 section 1605.3 (W)(4), FCC and OSHA. Indoor damplocation 50° to 104°F (10°C to 40°C) listed standard.
  • Dual-voltage 120 or 277 standard.Wall mount and ceiling mount. Surface mount back plate fits most standard size junction boxes and snaps into place.
  • The typical life of the LED is 10 years. One, 0.75W white LED per lamp head

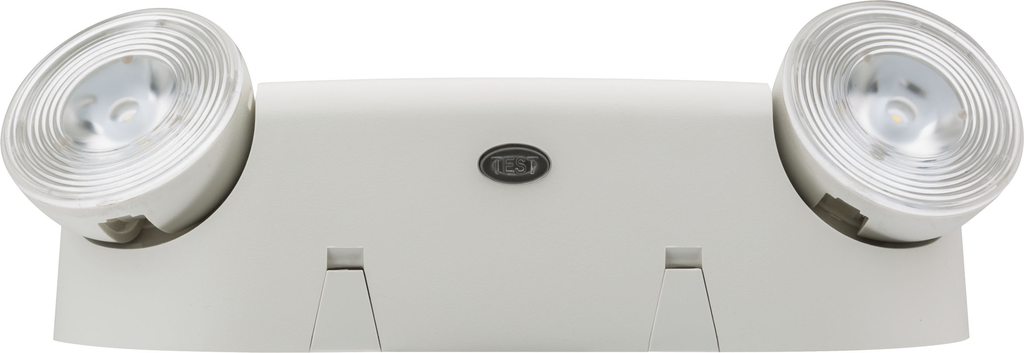

  • The EU2L LED Emergency Light lets you aim into the darkness. The fully adjustable LED lamp heads allow for more accurate illumination of tight spaces at lower mounting heights.
  • 3.6V Maintenance-free, rechargeable, nickel-cadmium. Bi-color LED status indicator for battery condition. (Green-normal, Red-check battery).
  • BUY WITH CONFIDENCE: Your satisfaction is our top priority, this product is backed by our 2-year limited warranty!

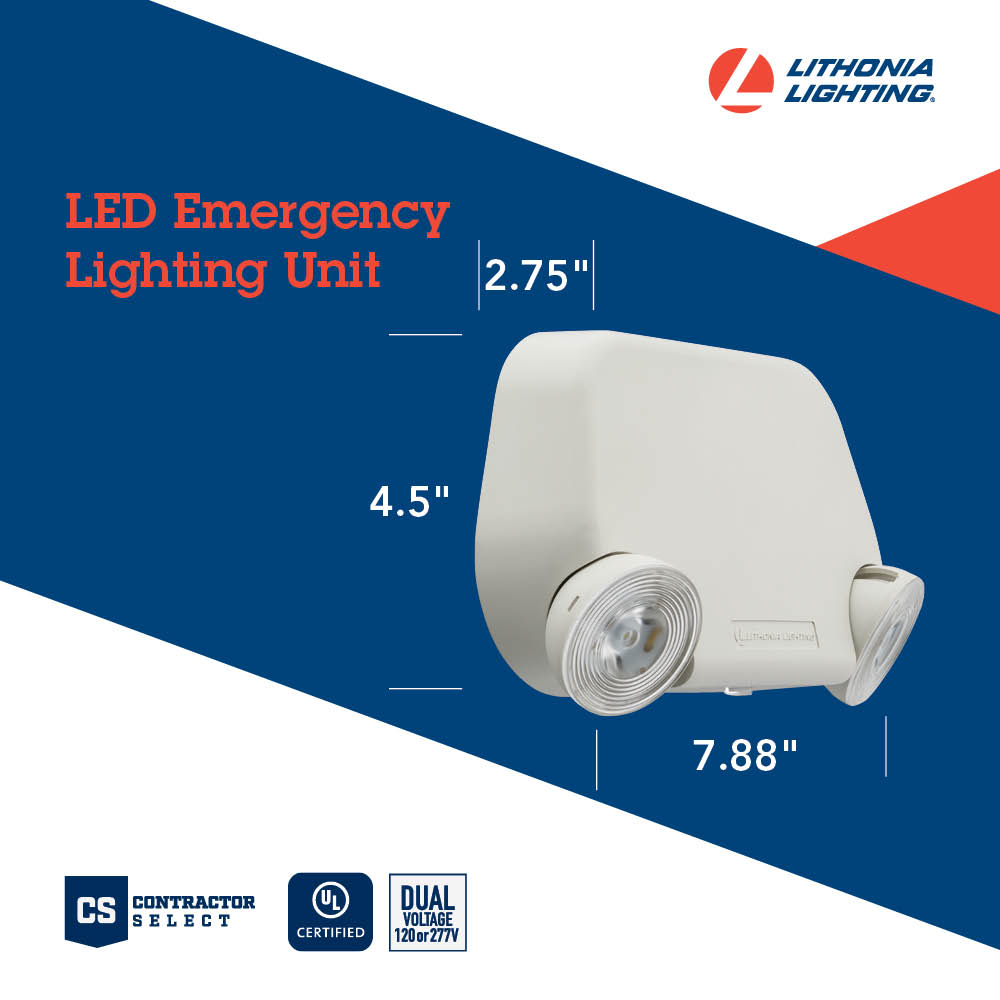

  • Length: 7.88 (20)Depth: 2.75 (6.99)Height: 4.5 (11.43)Weight: 0.7 lbs. (.32 kg)
