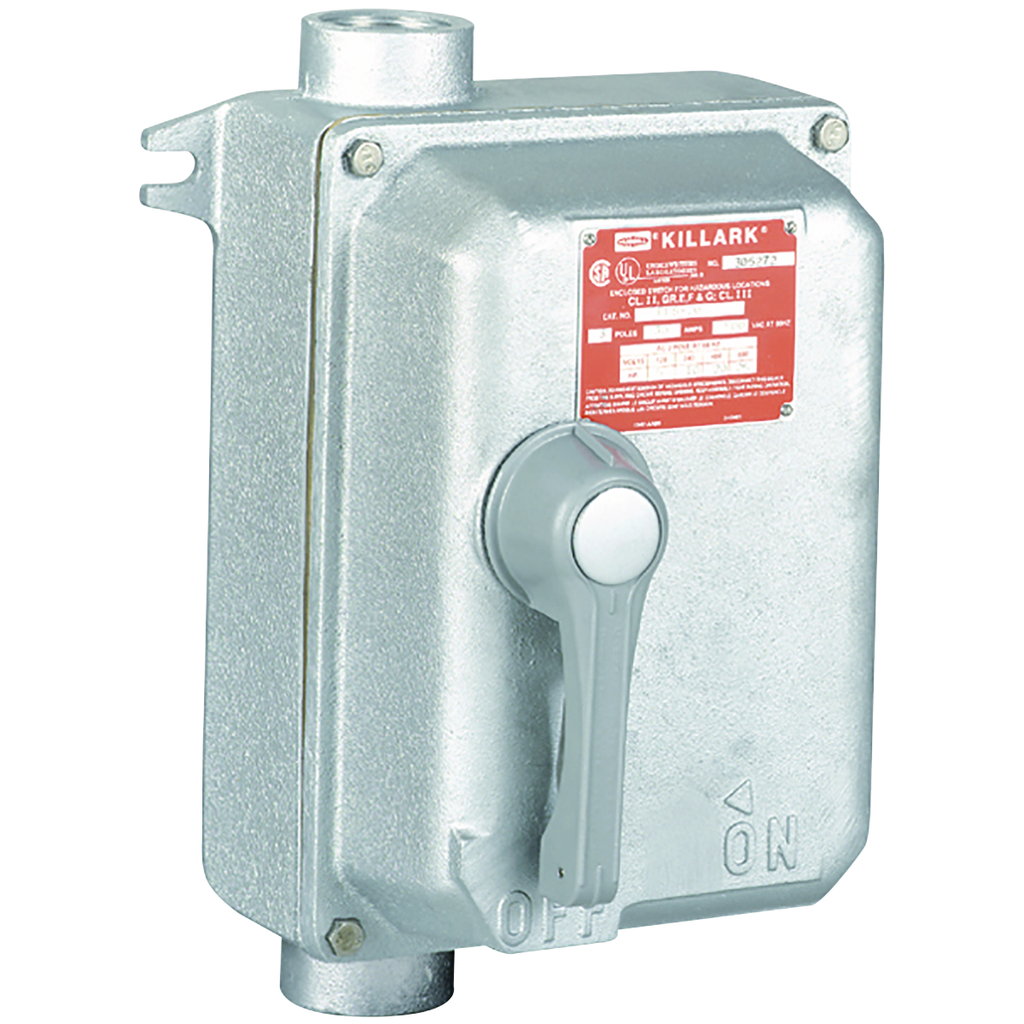

Product image for Killark DEDS-30 DEDS Series, 30 Amp Non-Fused Disconnect Switch
Email

Killark DEDS-30 DEDS Series, 30 Amp Non-Fused Disconnect Switch

Manufacturer: Killark | Catalog # DEDS-30 | Cooper Electric Part # 143937
$7,206.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
DEDS Series, 30 Amp Non-Fused Disconnect Switch

Technical Information

Frequency
60 Hz
Material
Aluminum
Mounting Type
Wall
NEMA Size
3R,4,9
Number of Poles
3 Pole
Number of Wires
4 Wire

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Killark

General Product Info

12-Digit UPC
783936116426
GTiN
00783936116426
Product UPC
78393611642
Weight
14.5 lb

Dimensions

Height
12-1/8 Inch
Length
13-3/4 Inch
Width
7.375 in

Certifications and Compliance

Country of Origin
USA
Features
  • Bolted and gasketed cabinet type construction insures the exclusion of conductive or combustible dusts from entering the assembly.
  • Enclosure and external handle is copper-free aluminum alloy (less than 4/10 or 1%).
  • Cover bolts are stainless steel.
  • External handle is vault type with standard provisions for locking in the \"OFF\" position with up to three padlocks.
  • Provisions for locking in \"ON\" position available as factory modification (Add suffix SU40 to catalog number).
  • Eaton (Cutler-Hammer) Type DS Switches.
  • Two cast conduit hubs, one top and one bottom.
  • Internal disconnect handle mechanism is a sliding plate mounted to the cover.
  • Suitable for indoor/outdoor use, primarily to provide a degree of protection against windblown dust, rain, splashing water, hose directed water and damage from external ice formation.
