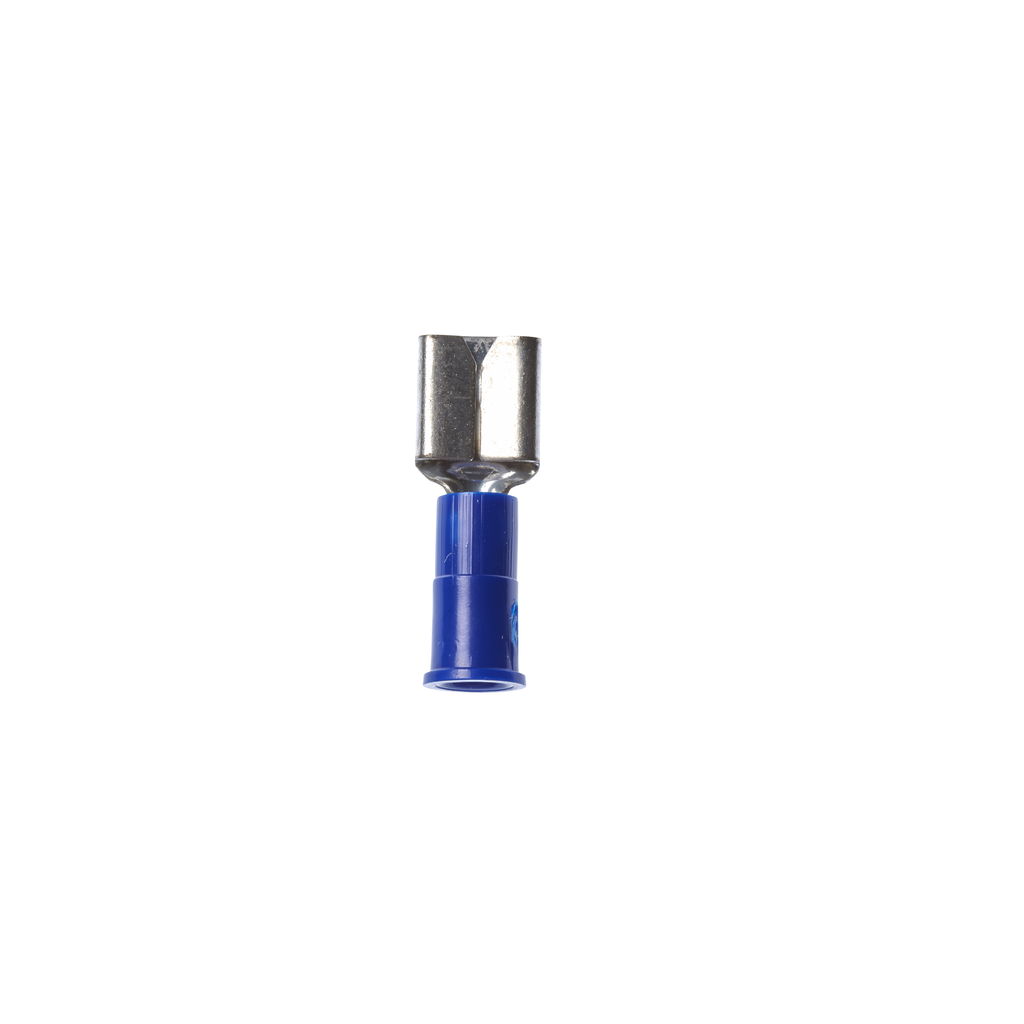

Product image for 3M 7000132257 3M™ Scotchlok™ Vinyl
Email

3M 7000132257 3M™ Scotchlok™ Vinyl

Manufacturer: 3M | Catalog # 7000132257 | Cooper Electric Part # 1439074
$0.72/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
3M™ Scotchlok™ Female Disconnect is an insulated disconnect which attaches to its mating part by slipping the tongue of the female part over male. It has good corrosion resistance, improved mechanical performance, and is both versatile and easy to use. It has dents and rolled edges to offer good holding force, while allowing for a quick disconnect. The butted-seam barrel is vinyl insulated to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees Fahrenheit (105 degrees Celsius) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion. 3M™ Scotchlok™ Female Disconnects are UL Recognized and CSA certified.

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
14 AWG
Connection Type
Wire
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105.0 degrees C
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Brand
Scotchlok
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007017776
GTiN
00054007017776
Product UPC
05400701777

Dimensions

Diameter
0.23 Inch
Length
0.87 Inch
Overall Length
0.87 in
Thickness
0.032 in

Certifications and Compliance

Country of Origin
USA
Features
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
