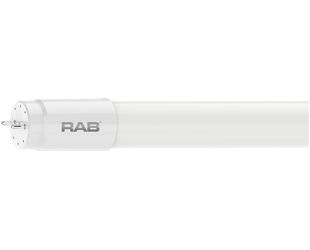

Product image for RAB T8-8-24G-830-SE-BYP LED T8 2ft
Image thumbnail 0
Image thumbnail 1
Email

RAB T8-8-24G-830-SE-BYP LED T8 2ft

Manufacturer: Rab Electric Mfg | Catalog # T8-8-24G-830-SE-BYP | Cooper Electric Part # 1434157
$16.09/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Linear Tubes 960Lm T8 2 Feet Glass Base Type G13 3000K 80CRI Single Ended Ballast Bypass

Technical Information

Applications
Damp Locations,Totally Enclosed Fixtures
Average Rated Life
50,000 hr
Base
G13
Base Type
G13
Beam Angle
240 degrees
Beam Spread
240 degrees
Bulb Shape
T8
Color Accuracy
82
Color Rendering Index
82
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Dimmable?
No
Efficacy
120 LPW
Input Voltage
100 V
Lumens
960 Lumen
Material
Glass
Operating Frequency
60 Hz
Operating Temperature
-20 degrees C
Power Factor
0.9
Type
LAMPS
Voltage
120-277 Volt
Wattage
8 Watt

Manufacturer Information

Brand
Rab Design Lighting

General Product Info

12-Digit UPC
019813751672
Color
3000 K
Finish
Frosted
GTiN
00019813751672
Product UPC
01981375167
Weight
0.2 lb

Dimensions

Length
2 Foot
Warranty Length
5 yr
Features
  • Replacement for conventional fluorescent T8 and T12 linear tubes
  • Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
  • Approximately 50% more energy efficient when compared to Fluorescent T8 lamps
  • Works with non-shunted sockets ONLY
  • Separate wiring harness and socket kit accessory available
  • 50,000 hour Lifespan
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Diffused frosted lens will maintain the same light quality over time
  • Instant on full brightness
  • Environmentally friendly, no mercury used
  • NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
  • Equivalency
  • Warranty
