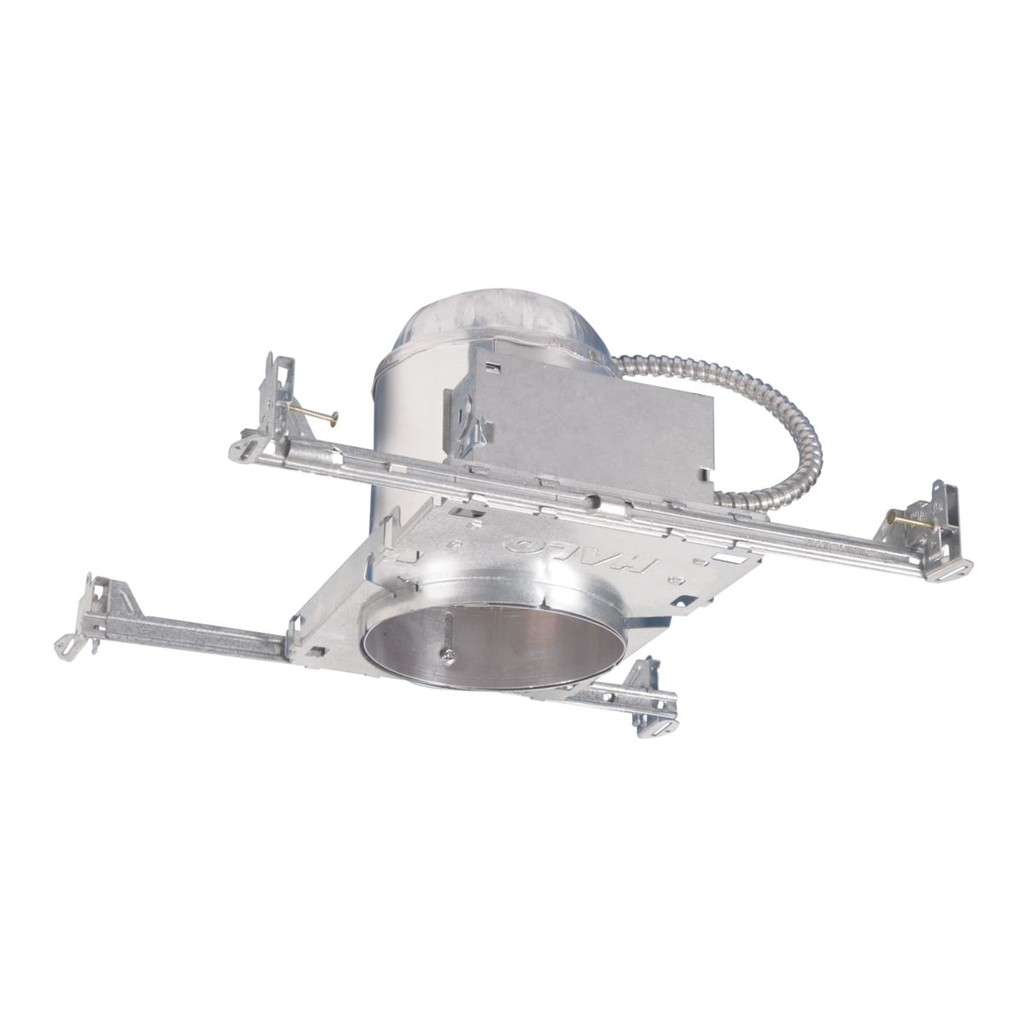

Product image for Halo H5ICATNB 5" IC, Air-Tite New Construction, No Socket Bracket Housing, 120V
Email

Halo H5ICATNB 5" IC, Air-Tite New Construction, No Socket Bracket Housing, 120V

Manufacturer: Cooper Lighting | Catalog # H5ICATNB | Cooper Electric Part # 1433777
$22.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
The Halo H5 series is designed to accommodate smaller sized PAR20 and PAR30 halogen lamps. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H5ICAT is designed for use in insulated ceiling applications. This is an AIR-TITETM housing and and may be used to meet restricted air flow requirements.

Technical Information

Amperage
0.625 Amp
Applications
Lighting
Ballast Type
N/A
Lamp Type
Compact Fluorescent
Material
Die-Cast Aluminum
Mounting Type
Recessed
Number of Lamps
1
Style
(blank)
Type
5" H5 Housing
Voltage
120 Volt
Wattage
50 Watt

Manufacturer Information

Brand
Cooper Lighting Solutions
Sub Brand
H5ICAT Series

General Product Info

12-Digit UPC
080083756063
Finish
Aluminum
GTiN
00080083756063
Product UPC
08008375606
Weight
2.4 lb

Dimensions

Diameter
5 Inch
Height
13 Inch
Length
14 Inch
Width
7.75 in

Certifications and Compliance

ARRA Compliant
Yes
Country of Origin
Mexico
Features
  • 14.0 IN Length 7.75 IN Width 13.0 IN Height
  • Got Nail!™ bar hangers
  • Pass-N-Thru™ tool-less shortening of bar hangers
  • Slide-N-Side™ wire traps
  • Quick Connect wiring connectors included in junction box
  • AIR-TITE™
  • Thermally protected
  • Die-formed housing and plaster frame
  • Housing may be removed from plaster frame for junction box access
