Product image for PHIL 410464 CDM20/TC/830 Elite
Email

PHIL 410464 CDM20/TC/830 Elite

Manufacturer: Philips Lamps | Catalog # 410464 | Cooper Electric Part # 1432795
$90.79/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Installation / Instruction Manual Product Brochure
Philips MasterColor CDM Evolution 3000K Tubular Single-Ended. T4 Lamp is the next evolution of MasterColor.

Technical Information

Applications
GENERAL LIGHTING
Base
G8.5
Bulb Shape
T4
Color Accuracy
85
Color Coding
830
Color Rendering Index
85
Color Temperature
2980 K
Correlated Color Temp
2,980 K
Dimmable?
No
Efficacy
90 LPW
Lamp Wattage
49 wtt
Lumens
1,800 Lumen
Material
Ceramic
Max Voltage
100 V
Power Consumption
22 KWh
Power Rating
20.1 W
Size
T4
Type
UV-Protection
Voltage
95 Volt
Wattage
20 Watt

Manufacturer Information

Brand
Philips Lighting
Sub Brand
Elite

General Product Info

12-Digit UPC
046677410469
Color
Warm White
Finish
Clear
GTiN
00046677410469
Product UPC
04667741046
Weight
0.009 kg

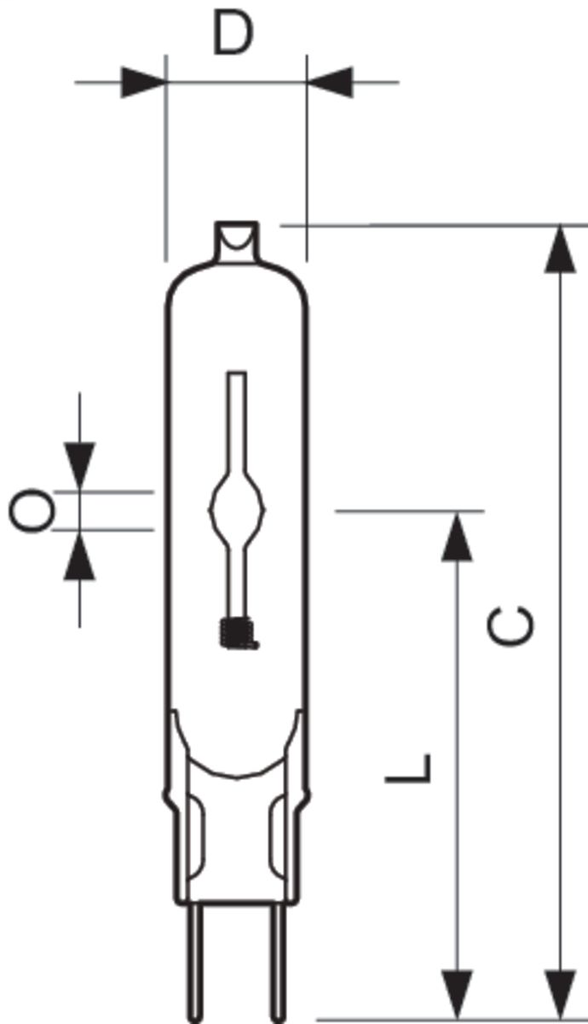

Dimensions

Diameter
14 mm
Warning And Safety
  • WARNING: These lamps can cause serious skin burn and eye inflammation from short wave ultraviolet radiation if outer envelope of the lamp is broken or punctured. Do not use where people will remain for more than a few minutes unless adequate shielding or other safety precautions are used. Certain lamps that will automatically extinguish when the outer envelope is broken or punctured are commercially available.\" This lamp complies with FDA radiation performance standard 21 CFR subchapter J. (USA:21 CFR 1040.30 Canada: SOR/DORS/80-381)
  • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
Features
  • Universal operating position
  • Dimensions, base and light center length are same as MasterColor and MasterColor Elite T4 lamps
  • Features FadeBlockan integrated UV blocking medium for reduced fading of fabrics and paintings
  • Available in new 20W and 39W lamps
Benefits
  • Color stability over life within 200K
  • Excellent color with 90 CRI (color rendering index)
  • Color stability over life within +/- 200K
  • Lamp-to-lamp color consistency over lifeHigh lamp efficacy (up to 112 LPW)
  • Up to 33% better initial efficacy than existing MasterColor T4 lamps*
  • 20,000 hours rated average life
  • 80% lumen maintenance at 15,000 hours
  • Based on a MasterColor Evolution 3000K Tubular Single-Ended T4 39W lamp with 4400 initial lumens vs. a CDM T4 35W lamp with 3,300 initial lumens.
  • Rated average life is the life obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours per start. It is based on survival of at least 50% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.
Applications
  • Ideal for retail display lighting and accent lighting
