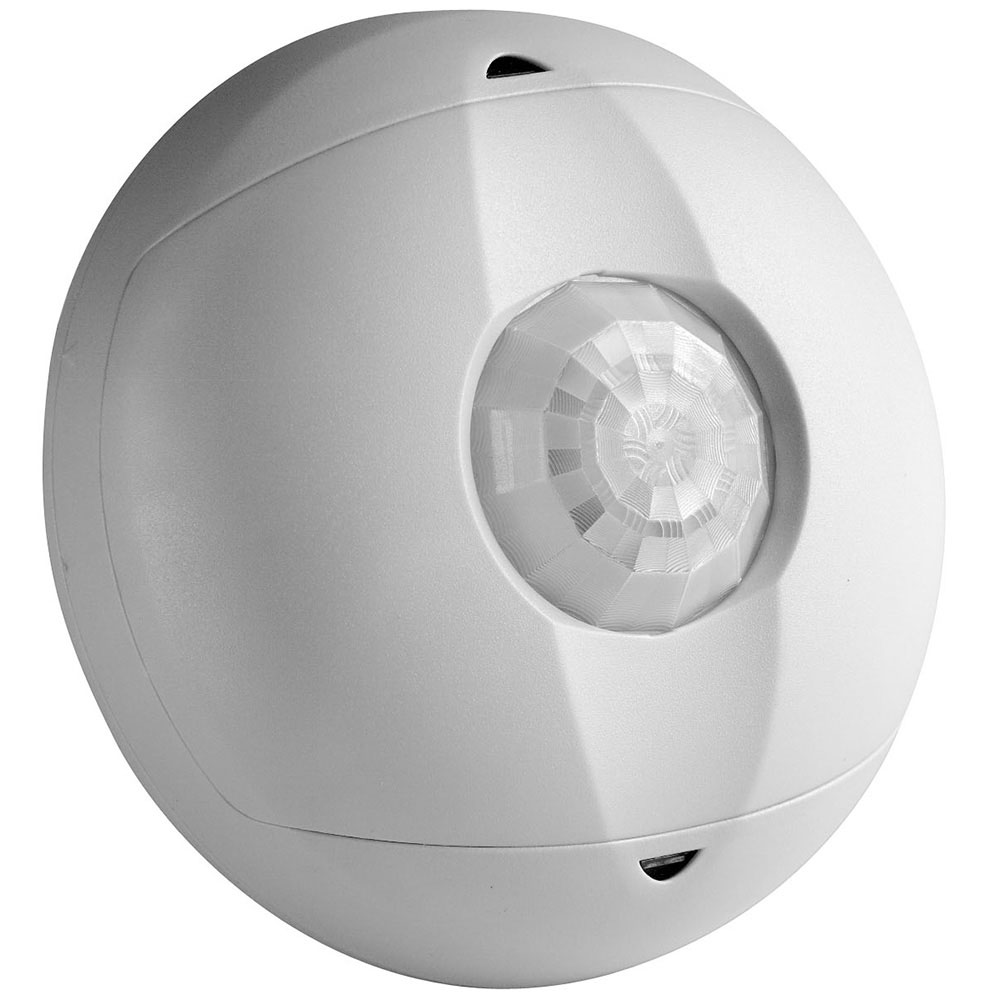

Product image for Leviton OSC15-I0W 24 VDC 1500 Square Foot Off White Plastic Ceiling Mount Passive Infrared Occupancy Sensor
Email

Leviton OSC15-I0W 24 VDC 1500 Square Foot Off White Plastic Ceiling Mount Passive Infrared Occupancy Sensor

Manufacturer: Leviton Mfg Co | Catalog # OSC15-I0W | Cooper Electric Part # 143094
$177.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Occupancy Sensor lighting control, Ceiling Mounted, 24VDC, 10mA power consumption, 1500 sq ft, 360 degree (major motion: 40' diameter, no minor motion), red LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off white

Technical Information

Amperage
20 mA
Applications
For Commercial use
Coverage
1500 sq-ft
Input Voltage
24 V
Material
Plastic
Mounting Type
Ceiling
Operating Temperature
0 degrees C
Response Time
30 min
Sensor Type
Passive Infrared
Size
4.20 (Dia) x 1.55 D IN
Standard
ANCE Compliant,ASHRAE (Standard 90.1 Compliant),CUL\US (Listed 9034),Code Compliance (California Title 24),FCC Compliant,NOM (057)
Temperature Rating
0 degrees C to 40 degrees C
Type
Passive Infrared
Voltage
24 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
C/I OCCUPANCY SENSORS

General Product Info

12-Digit UPC
078477180587
Color
White
Environmental Conditions
0 - 95% Humidity
GTiN
00078477180587
Product UPC
07847718058

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Certifications
CUL/US Cert
Country of Origin
Please Contact Customer Service
Features
  • Small Size: Installed sensor appears almost invisible.
  • Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
  • Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
  • Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
  • Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
  • Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
  • Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
  • Excellent Warranty: 5-Year Limited warranty.
  • Typical Applications: Copy Room, Open Office, Storage Room, Lounge, Non-Partitioned Restroom, Vending Room, General Work Space, or Hallway
  • The all-digital & microprocessor based OSCXX-I occupancy sensor is the most advanced infrared ceiling sensor available. Self-calibrating sensitivity and timer allow the installer to install & forget. Do you have a question about an occupancy sensor or vacancy sensor?
Patents
  • US7800049
